FaroArm® Quantum
August 2017
84
Chapter 3: Operation
Temperature Stability
Click TEMPERATURE GRAPH to view the ambient temperature change of the
Quantum over time.
• Rotate the mouse wheel to zoom in and out of the chart. Right-click and drag
to move the chart around the window. Double-click the wheel button to reset
the chart view.
•Click RESET PLOT AXES or double-click the wheel button to reset the chart
view.
• Click on the line to see the details.
•Click RESET DATA to clear all temperate data and restart the temperature
measurement.
Notice the ambient temperature for the Quantum. Check that ambient
temperature is not fluctuating more than 3°C (5.4°F) over a five minute period.

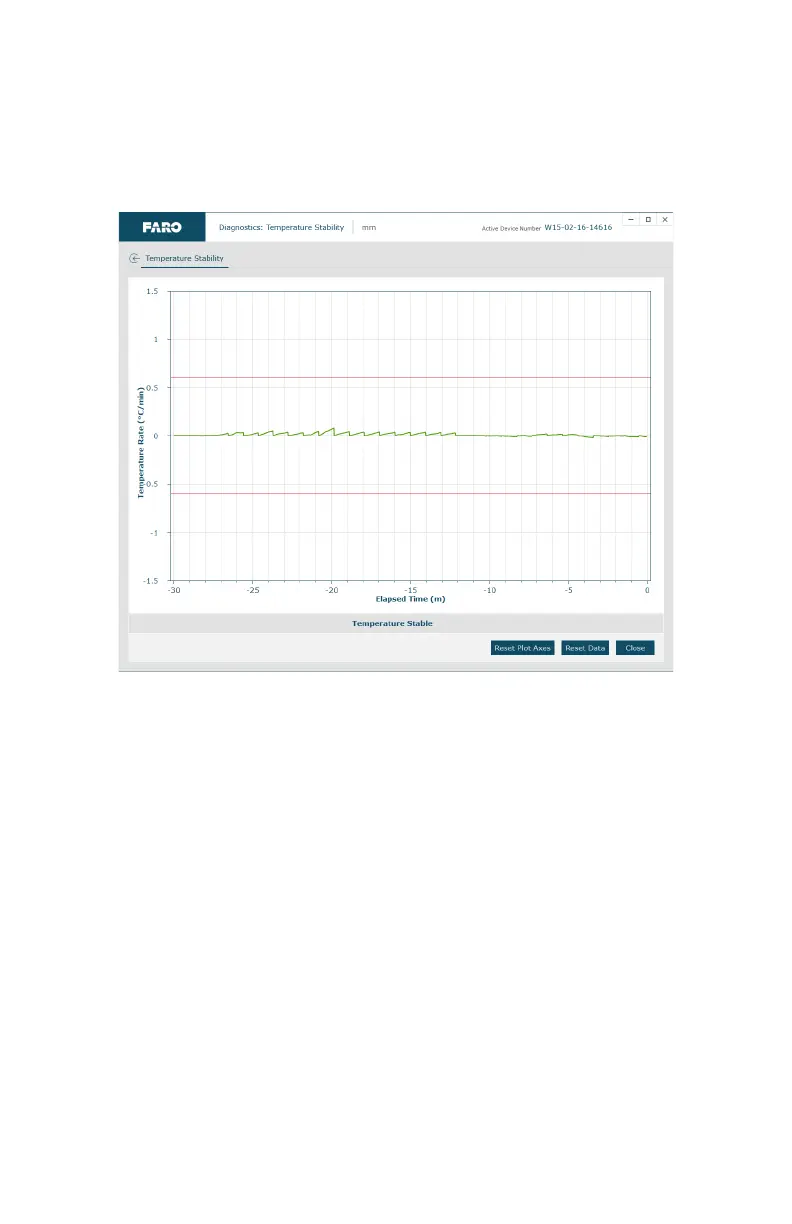

Figure 3-52 Temperature Stability dialog box
08m80e00_FaroArm_Quantum.book Page 84 Tuesday, August 22, 2017 11:03 AM
