Chapter 2: Setting up the Quantum
Packing the Quantum
The Quantum should be packed very carefully to prevent shipping damage.
NOTE: The FARO Laser Line Probe HD case does not fit in the
Shipping case.
1. Turn off the Quantum, remove the battery pack, disconnect all cables, and
unlock the handle so it is hanging down.
NOTE: Remove the 7-Axis Handle from the Quantum before packing.
See “7-Axis Handle” on page 21.
Pack the Quantum, Probe Case, Accessories, Surface Mount Plate,
and 7-Axis Handle as shown.
NOTE: The FARO Laser Line Probe HD case does not fit in the
Shipping case.
2. Close the Shipping case and secure all the case latches.
Quantum
Probe Case
Accessories Pocket
7-Axis Handle
Surface Mount Plate
FaroArm Driver and User Manuals
Documentation Pocket

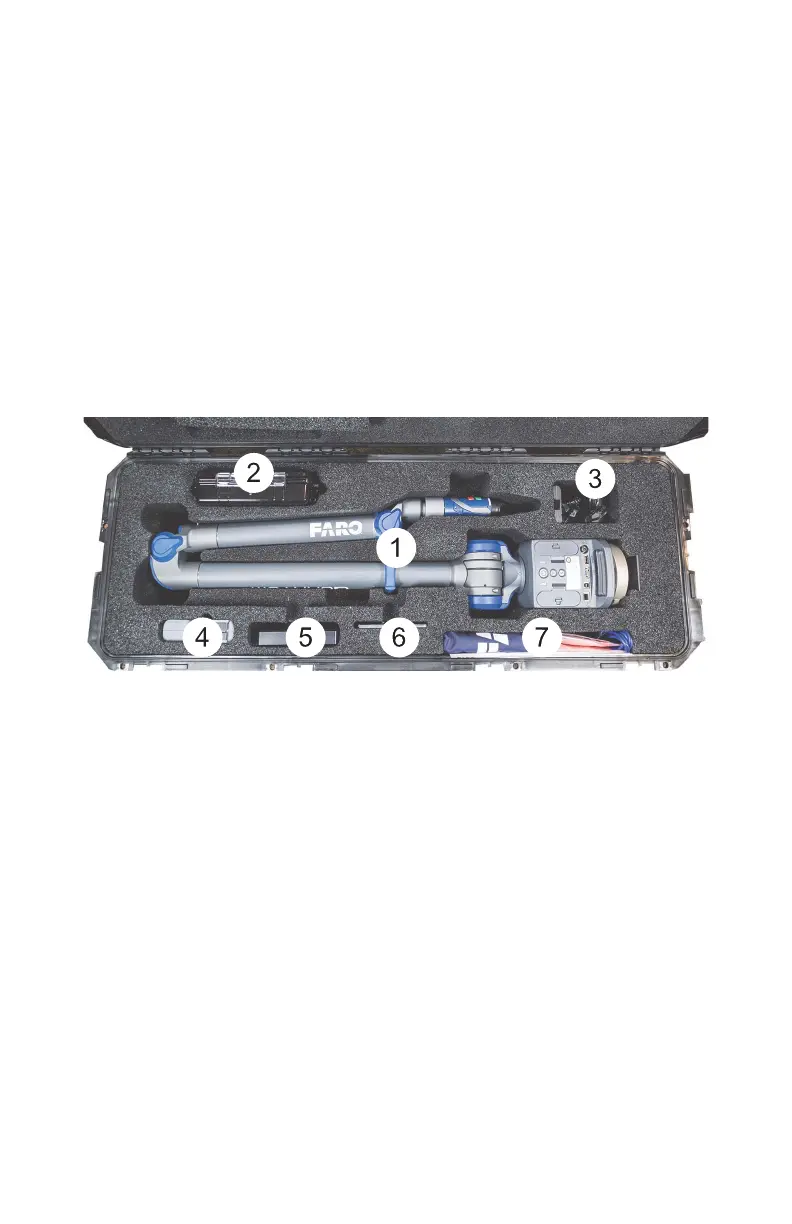

Figure 2-20 Quantum Shipping case
