FaroArm® Quantum
August 2017
16
Chapter 2: Setting up the Quantum
Unpacking the System
The Quantum is packed in a shipping case which includes space for the Cables,
Probes, and mounting hardware.
Lifting the Quantum
Follow safe lifting procedures when removing the Quantum from its storage
case. Always use safe lifting procedures when placing the Quantum on, or
removing the Quantum from, the tripod.
• While in the case, lift Tube 2 and rotate it to place it onto Tube 1.
• Reach under and grab the Quantum by Tube 1 and the base handle to remove
it from the case.
;

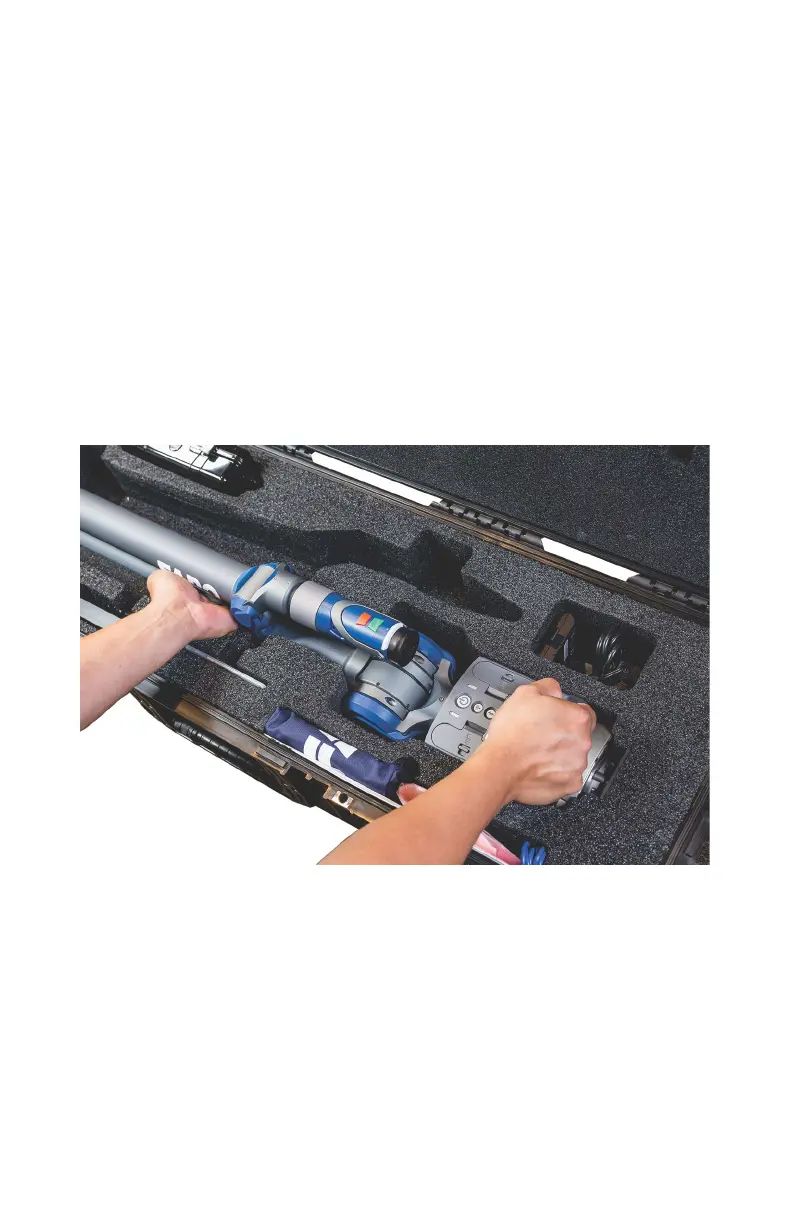

Figure 2-3 Lifting the Quantum
08m80e00_FaroArm_Quantum.book Page 16 Tuesday, August 22, 2017 11:03 AM
