FaroArm® Quantum
August 2017
67
Chapter 3: Operation
Sphere Compensation Method - 6-Axis
Perform the Sphere Compensation using a precision sphere or tooling ball. The
sphere should be at least 10
mm
(3/8 in) diameter or larger. You will digitize 45 individual points in three specific
locations around the sphere by pressing the green Front button for each.
CAUTION: The ball probe must remain in contact with the sphere while
digitizing points. Even one or two poorly digitized points significantly

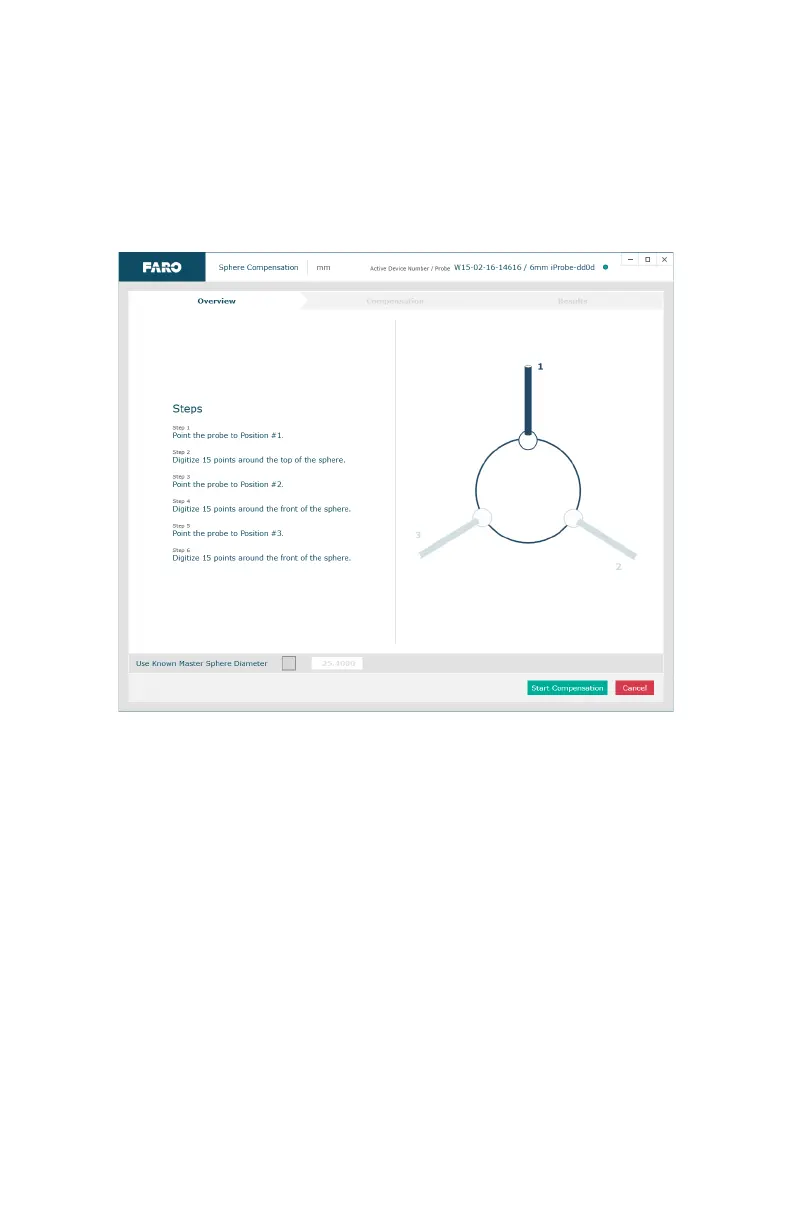

Figure 3-39 6-Axis Sphere Compensation
08m80e00_FaroArm_Quantum.book Page 67 Tuesday, August 22, 2017 11:03 AM
