FaroArm® Quantum
August 2017
99
Chapter 4: Probes
NOTE: Digitize each point near an edge of the surface to avoid marring the
middle of the surface.
• Pull the probe away from the surface and press the red Back button.
The flatness of the white surface is calculated and the results are displayed in the
dialog box. If the results Fail, click Restart Plane to redigitize the white surface.
NOTE: Avoid touching the lenses. When necessary, clean the top and bottom
lenses with the cloth from the FARO Laser Line Probe case. Dirt and grease
on either lens can cause poor results.

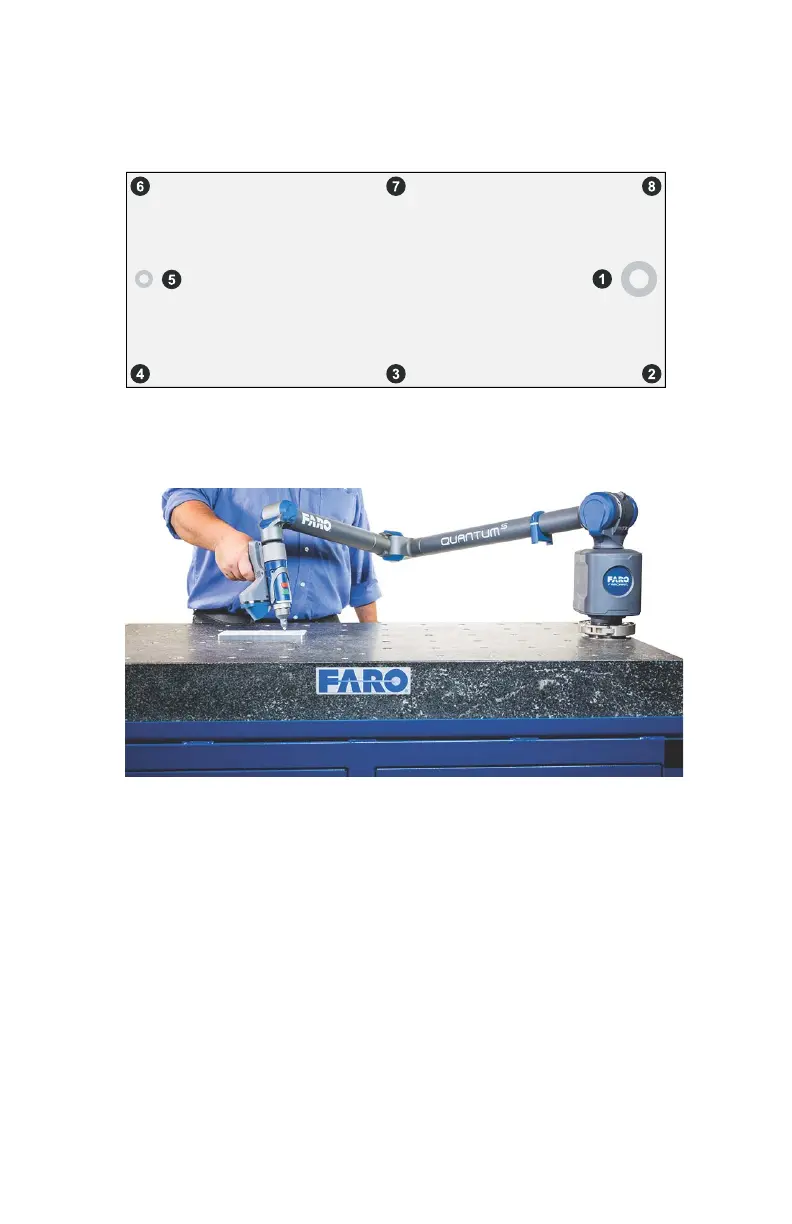

Figure 4-14 Measuring the Compensation Plate with the Ball Probe
