Chapter 3: Operation
the green Front button. Digitize at least 200 points in each of the ten different
sweep positions.

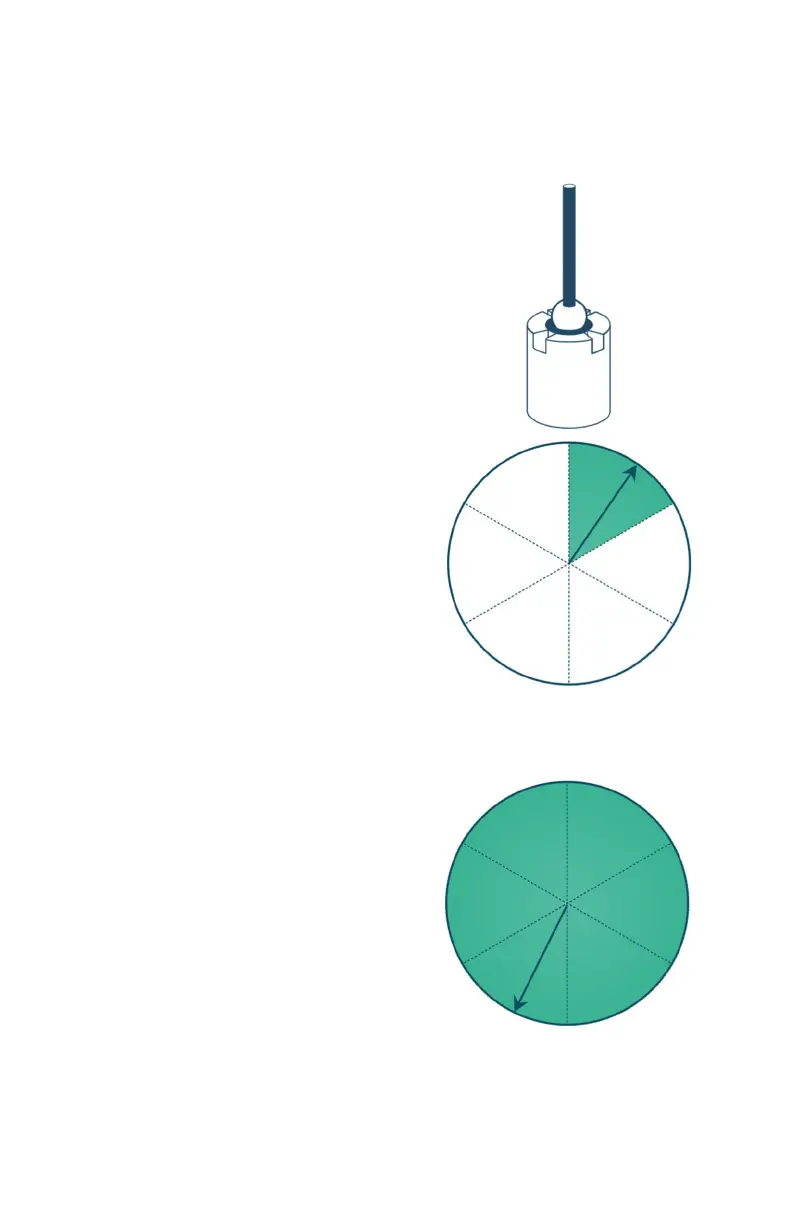

1. Place the ball probe in the compensation
cone. Start in a vertical position.
2. Press and hold the green Front button
and move the handle down until the
shaft of the probe is parallel with the top
of the cone.
• Sweep back up and down until the
minimum amount of points are
digitized.
3. Release the green Front button and move to the next position.
NOTE: To remove any unwanted points, press and hold the red Back
button.
4. Repeat steps 2 and 3 for the remaining
five positions.
NOTE: Seven-axis Quantums have an additional position. Rotate the
handle.
