FaroArm® Quantum
August 2017
71
Chapter 3: Operation
affects the optimization process, which then has an effect on the accuracy of
the Quantum.

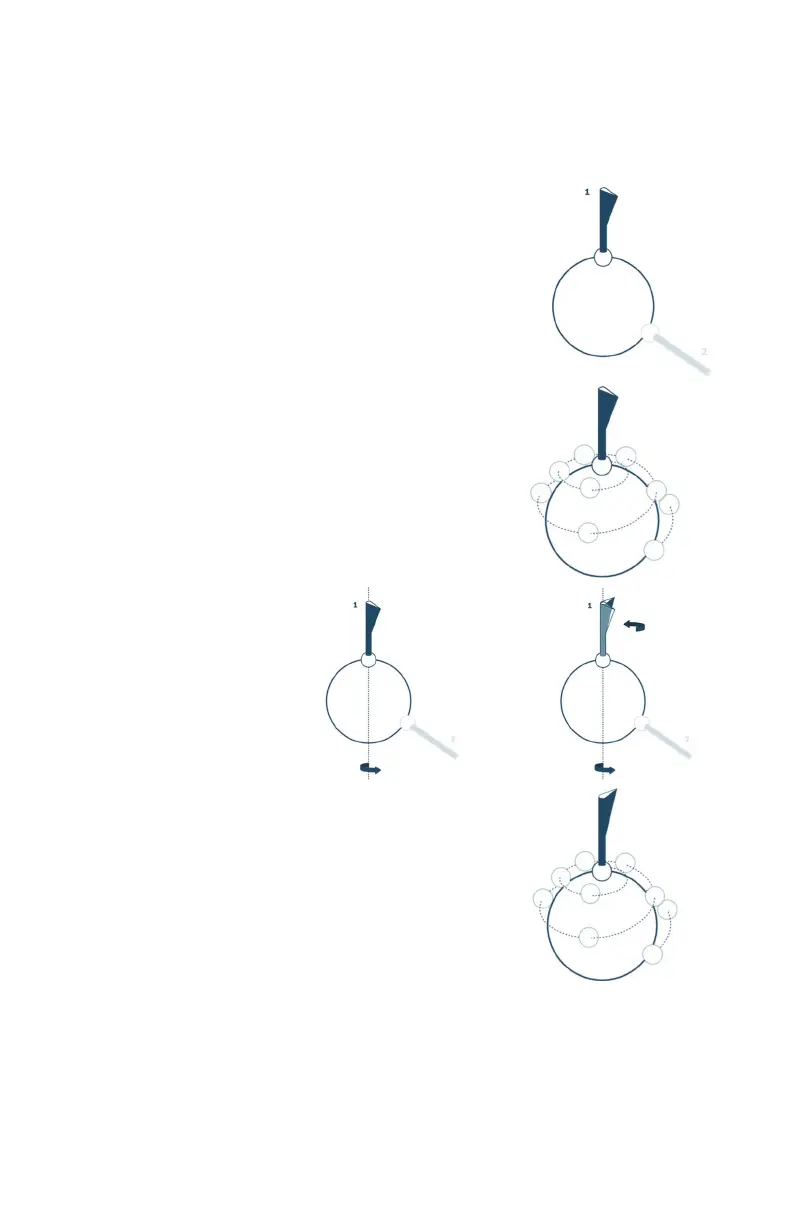

1. Move the handle so that the probe is pointing
in position #1.
2. Digitize 11 points around the top hemisphere
of the sphere with the probe pointing in
position #1. Hold the handle in the same
direction and orientation for every point.
NOTE: Watch the live guides at the bottom of the
screen to ensure the direction and orientation
remain the same for all points.
3. Rotate the handle
90 degrees.
4. Digitize 11 points around the top hemisphere
of the sphere with the probe pointing in
position #1. Hold the handle in the same
direction and orientation for every point.
08m80e00_FaroArm_Quantum.book Page 71 Tuesday, August 22, 2017 11:03 AM
