Chapter 4 Installation and Wiring
PAGE 4-42

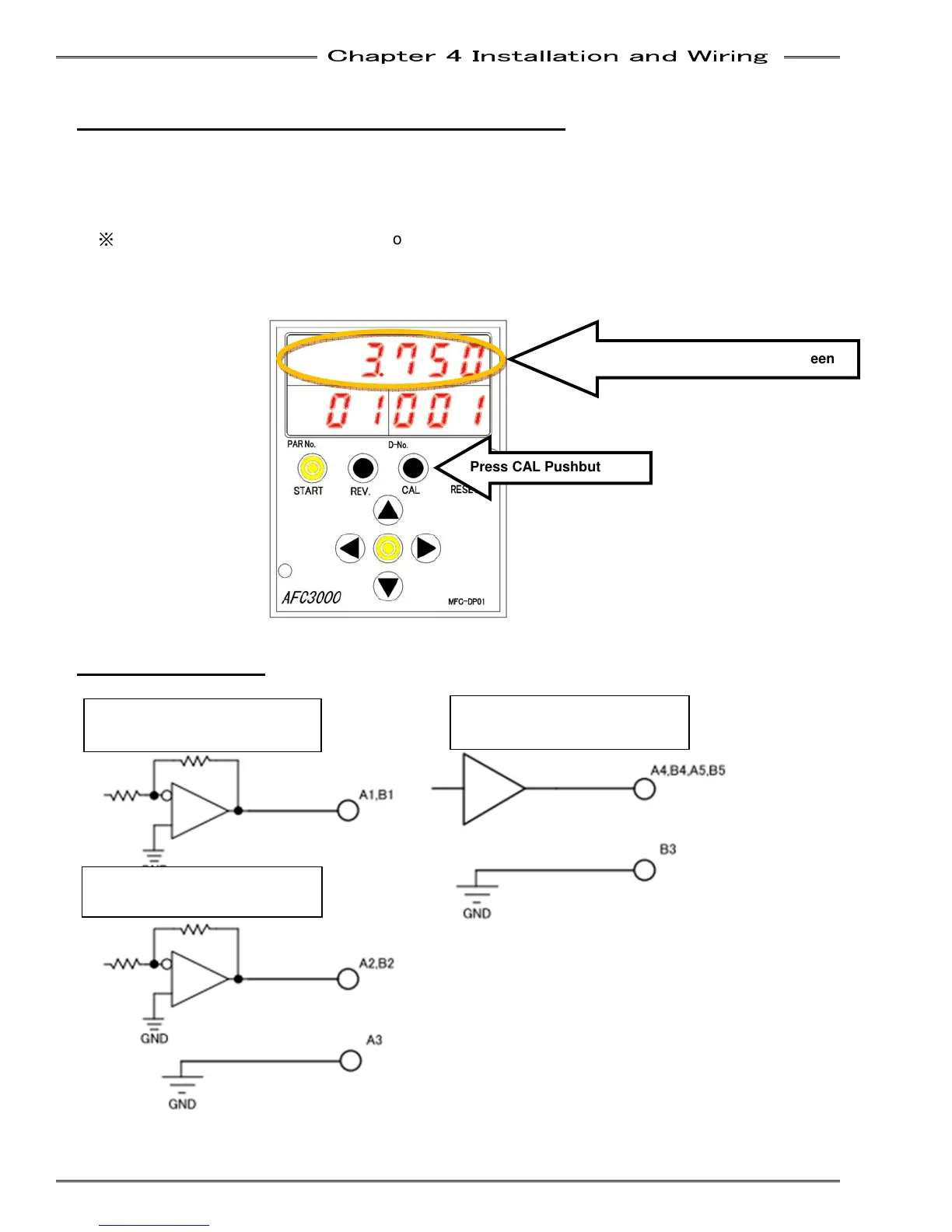

4-7-2 How to Calibrate the External Monitoring Device
When pressing the CAL switch on the unit display device, the torque voltage is output to TORQUE
OUT pin with the voltage potential difference of approximately ⊿3.7V (from tool ZERO level)
At the same time, the torque value detected on the tool is displayed on the DATA display screen.
Set the same torque value by using the external monitoring device to adjust the torque voltage.
※
The zero torque voltage at no load is not 0V.
The voltage value of each tool varies. Therefore, the zero point needs to be corrected by using the
external monitoring device.
4-7-3 Output Circuit
Display torque value on DATA display screen
Torque Voltage Output
Op Amp Output: 0 - +/- 5V
Current, Speed Output
Op amp output: 0 to +/-10V
Angle Pulse, Direction Output
TTL (5V) output
