Chapter 4 Installation and Wiring
PAGE 4-3

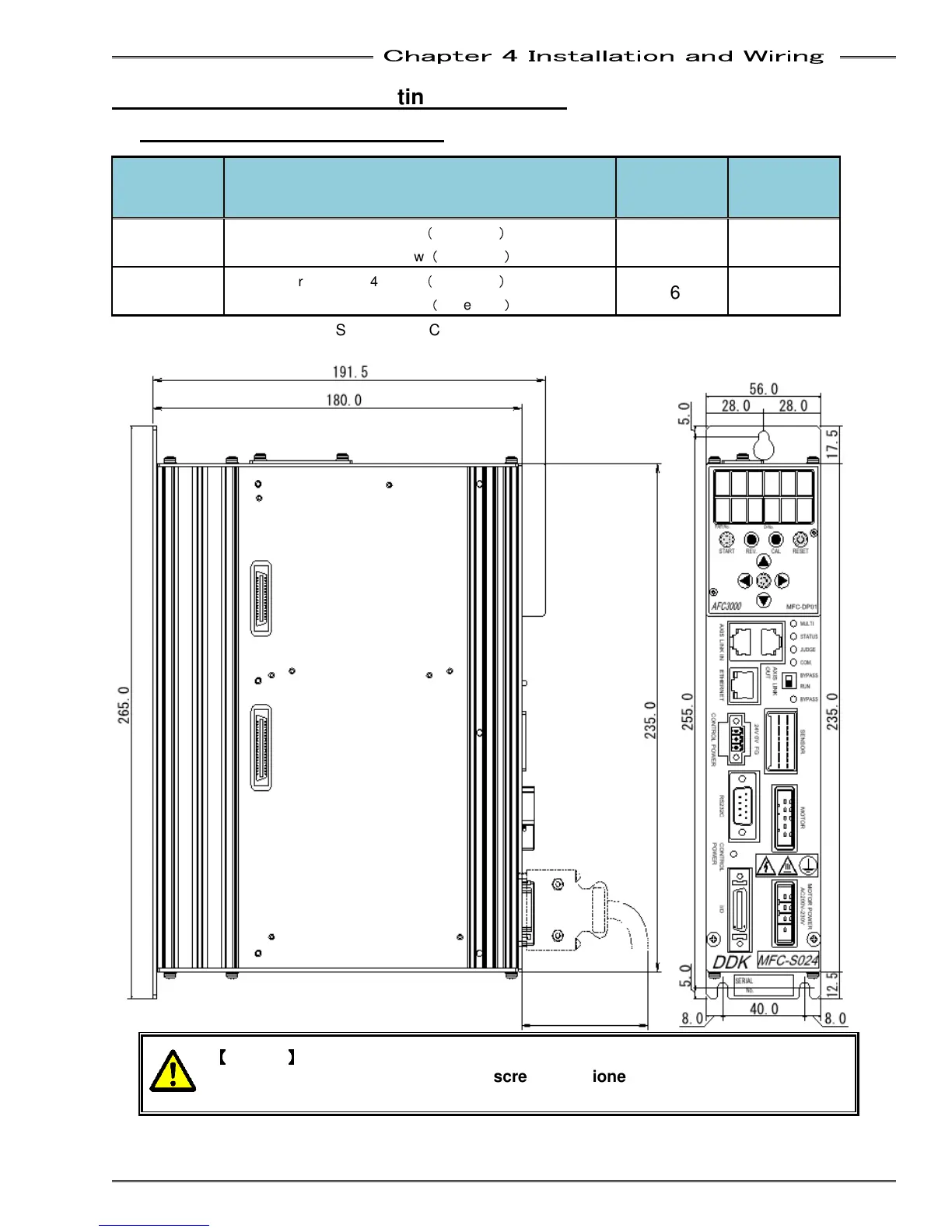

4-1 Unit Outline and Mounting Dimensions
MFC-S024、
、、
、MFC-S060 Controllers
Type Installation Weight
Internal fan
MFC-S024
One bell screw hole: M4 screw （ Upper part ）
Two elongated holes: M4 screw （ Lower part ）
1.60kg No
MFC-S060
One bell screw hole: M4 screw （ Upper part ）
Two elongated holes: M4 screw （ Lower part ）
1.96kg No
• Dimensions of the MFC-S024 and MFC-S060 are the same.
【
【【
【 Caution 】
】】
】
Install the unit firmly with specified screws mentioned above to prevent the unit
from falling due to vibration (which could cause faulty operation)
(75.0 o
r longer)
