Chapter 5
I/O
Expansion Unit
Page 5-24

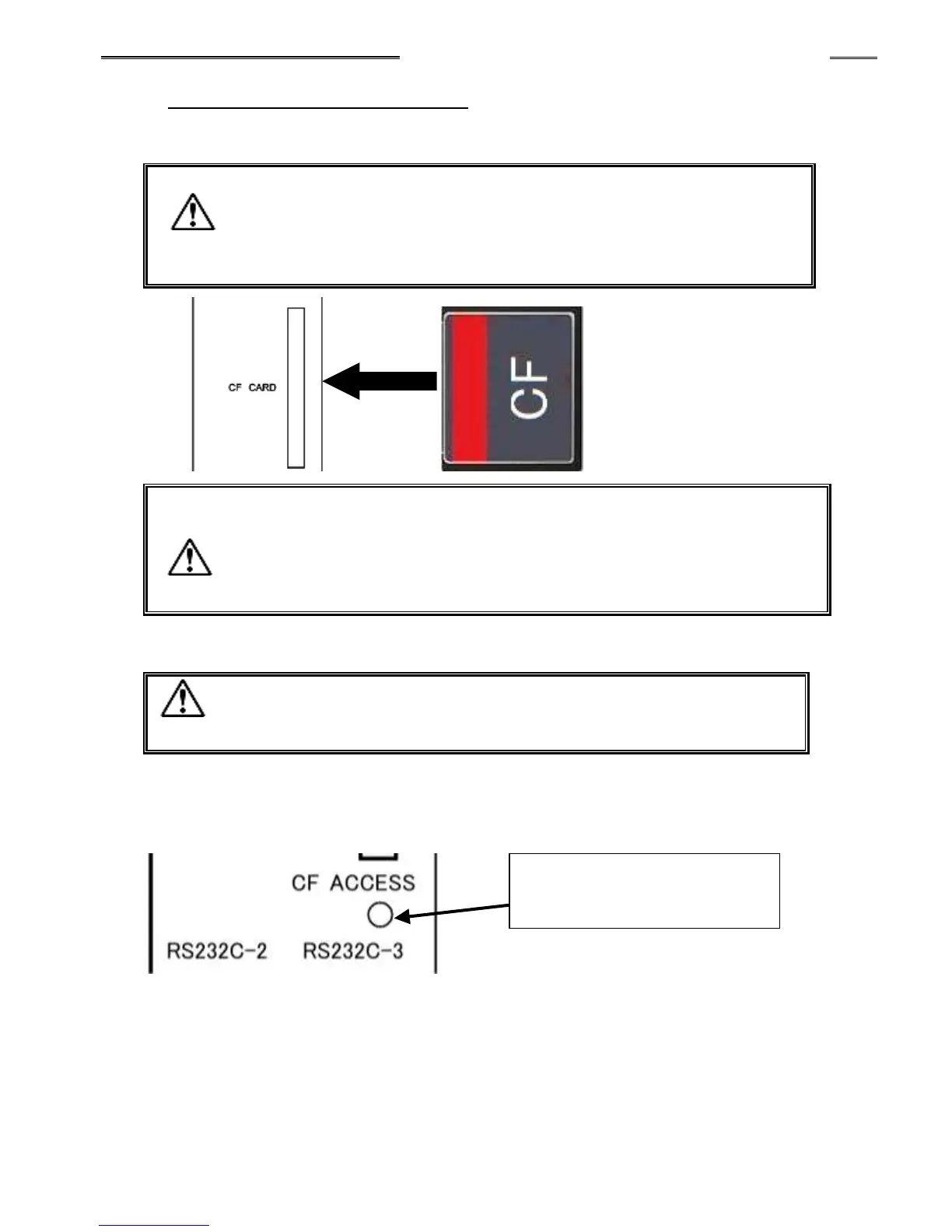

5-4-1 Using the (CF) Memory Card
1. Turn OFF power and insert the memory card in the memory card slot (CF CARD) of
Expansion Unit 2.
･ When the control power of the Unit is turned ON with the memory
card installed in the slot, it takes additional time for the memory to
become operable because a file storage folder is generated in the
memory card.
･ Insert the memory card (vertically) slowly with its top surface facing the
left side. Although precautions have been made so that a card cannot
be inserted in the wrong orientation, damage may occur to the
controller or card if it is forced in.
･ DO NOT insert the memory card with POWER ON.
2. Data storage to the memory card is executed after the fastening operation has ended.
･ Do not extract the card from the slot or turn OFF the control power of the Unit
while memory storage is in progress. Otherwise, the stored data or the memory
card may be damaged.
3. When data is being stored to the memory card, the CF ACCESS LED will light (green). If storage
to the memory card fails, the CF ACCESS LED will light (red).
CF ACCESS
Green: Data storage in progress.
Red: Data storage failed.
