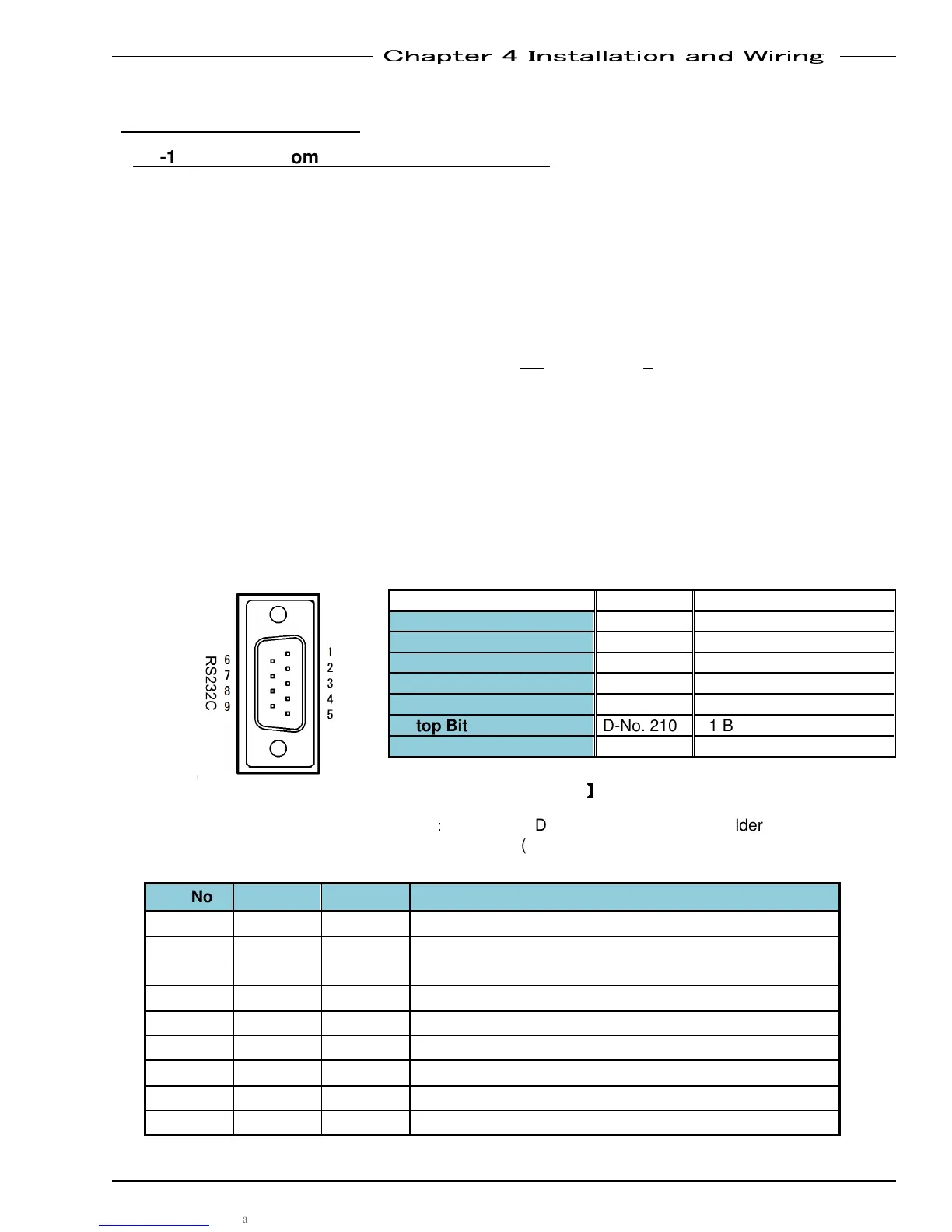

4-8 RS-232C Interface
4-8-1 RS-232C Communication Specifications
The fastening result data is output in ASCII format from the RS232C output port located on the front of
the MFC controller. When configured as a SINGLE system (SYS DataNo 003), this port has a dedicated
data output format (170Bytes each cycle) that cannot be changed (as shown in the following pages).
When configured as a MULTI system, this port data format is user-programmable using the AFC3000
Software (RS232C Output Format Setup).
Note: The RS232C-3 output port on the MFC-CF expansion module also uses the same user -
programmable data output format programmed using the AFC3000 Software (RS232C Output Format
Setup). If certain data is only required or a user-defined smaller format, then use the RS232C port on
the MFC front panel (configured as a MULTI system) OR the RS232C-3 port using the AFC3000 software
to program / setup the desired output format.
The default communication setting of the MFC unit front RS232C port is indicated below and can be
confirmed/changed in the parameter settings [Data No. 208 – 211] in the system-setting mode. (PAR No.
indicated by “SYS” on display)
NOTE: This RS232C Communication port (communication setup) can only be changed using the Display
Keypad. (The AFC3000 software (RS232C Output Format Setup) does NOT change this MFC unit front
port). It will only change the communication parameters of the RS232C-3 port on the expansion module.
Data Bits D-No. 211 8 Bit
Error Control None
Communication Speed D-No. 208
38400bps
Start Bit 1 Bit
Stop Bit D-No. 210 1 Bit
Parity D-No. 209 None
【
【【
【Compatible Connector
】
】】
】
Model No.
：
HDEB-9S
D-SUB9 pin Female with solder type
HDE-CTF(50) Connector case Screw size M2.6
Pin No. Signal IN/OUT Description
1 - Not used
2 RXD Input ID data input (command input)
3 TXD Output Operation results output
4 DTR Output Always ON output
5 GND - Signal GND
6 - Not used
7 RTS Output Always ON output
8 CTS Input Clear To Send (Must be ON to send data)
9 - Not used
