FEC AFC3000 - I;O Hardware Specifications and Recommended Connection Circuit

Chapter 5 I/O Expansion Unit
Page 5-19

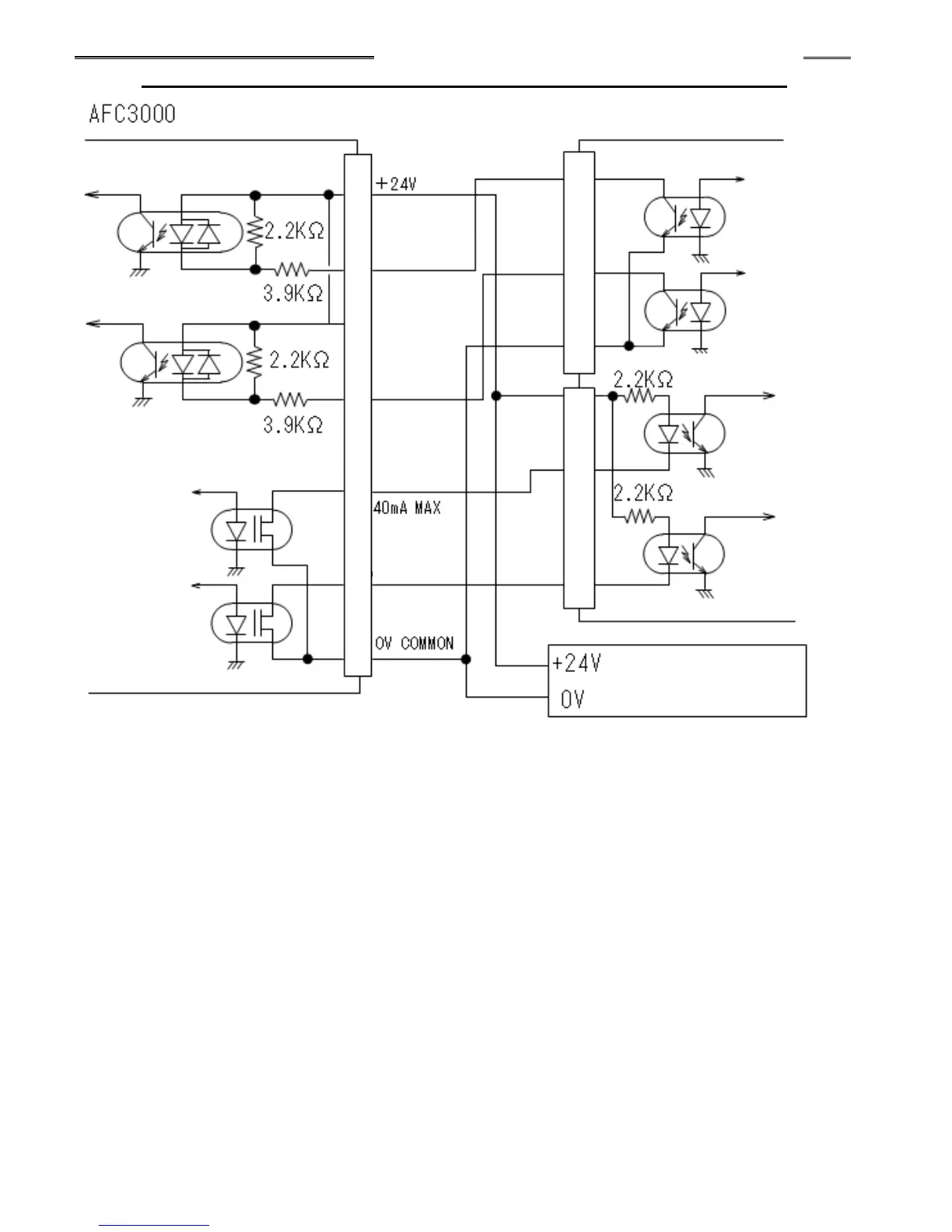

5-3-6 I/O Hardware Specifications and Recommended Connection Circuit
NOTE: The input / output hardware is bi-directional and accommodates both positive and negative current flow.
Both NPN (sinking) and PNP (sourcing) type connections may be used. (NPN Sinking is shown – PNP can be
wired by reversing + and – commons)
DC
Power Source
PLC I/F Connector
Input Hardware Specifications
User Side PLC
Input Signal**
Output Hardware Specifications
Input Signal**
Output
Signal**
Output
Signal**
