Chapter 4 Installation and Wiring
PAGE 4-26

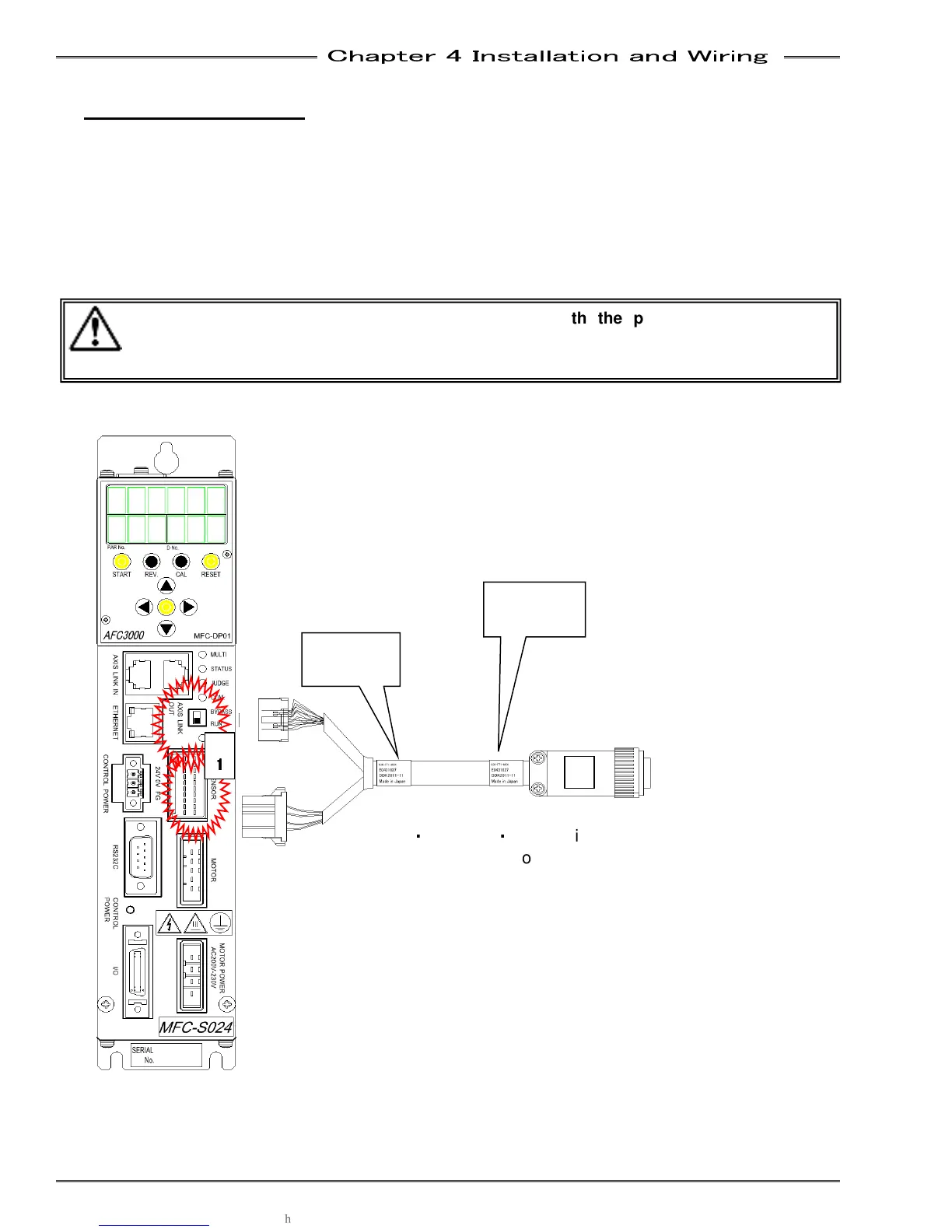

4-5-2 Tool Cable Wiring
•
Tools are connected to the Controller using one cable (2 cables for RM5 motors).
•
Each cable should be labeled with the spindle number and should be connected to the corresponding
Controller and Tool.
•
If tie wraps are used to affix the cable to the tool, they should be loose enough to allow the cable to
move, but yet hold it in place. Cable ties too tight cause a stress point leading to premature cable
failure.
1
11
1
Spindle
No. Label
Spindle
No. Label
Motor
・
Resolver
・
Preamplifier
Combined Cable (Tool Cable)
1
11
1
Do not make motor connections with the power on. Turn off all
controller power before attempting to connect or disconnect any motor cables or
tool damage may occur.
