5-4-2 Data Storage File Format
The fastening results (multi format) and the fastening curves (waveforms) are stored in the memory
card. The fastening results are stored according to date in the TSV (Tab Seperated Value) format and
can be displayed in Microsoft® Excel® or any spreadsheet software that can read a TSV file. The
(torque vs. angle (180deg)) curve file of each spindle is stored in the “nracd” format, which is dedicated
for use with the AFC3000 User Console. The fastening curve displayed on the “Wave Monitor” of the
AFC3000 User Console Software can be stored in the TSV format.
● Fastening Results (Multi Format)

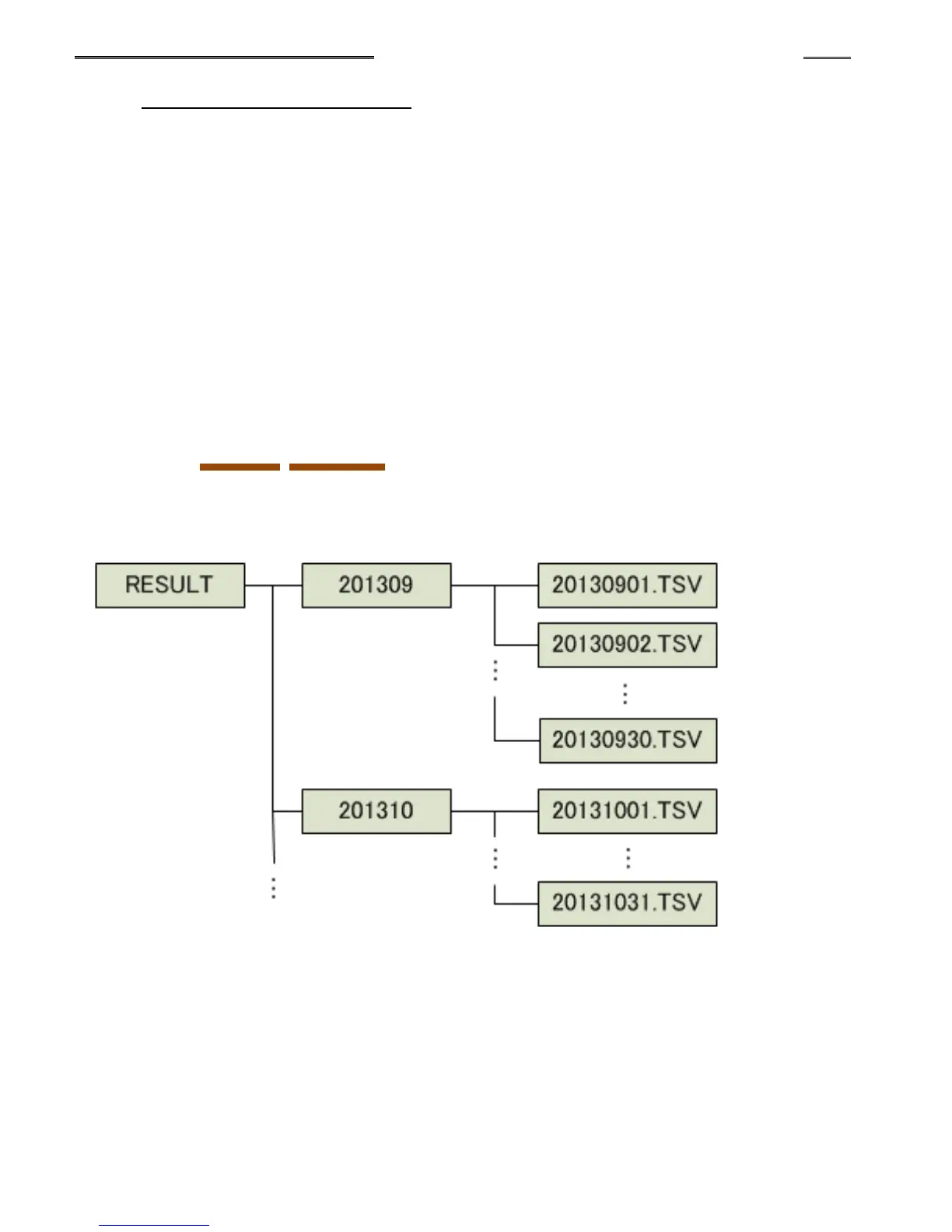

The fastening results are stored in the “RESULT” folder, which is generated automatically. Inside the
“RESULT” folder, folders each with a name expressing the year and month, such as “201309,” are
generated automatically and a folder is automatically generated in the manner of “201310,” “201311,”
“201312,” etc..
Inside the “201309” folder, the following file is stored at the end of the fastening operation.
RESULT¥YYYYMM¥YYYYMMDD.TSV (TSV format file)
Year/Month Year/Month/Day
The fastening results for a single day are stored in each file. When the date changes, a file is
automatically generated in the same folder.
