Chapter 4 Installation and Wiring
PAGE 4-7

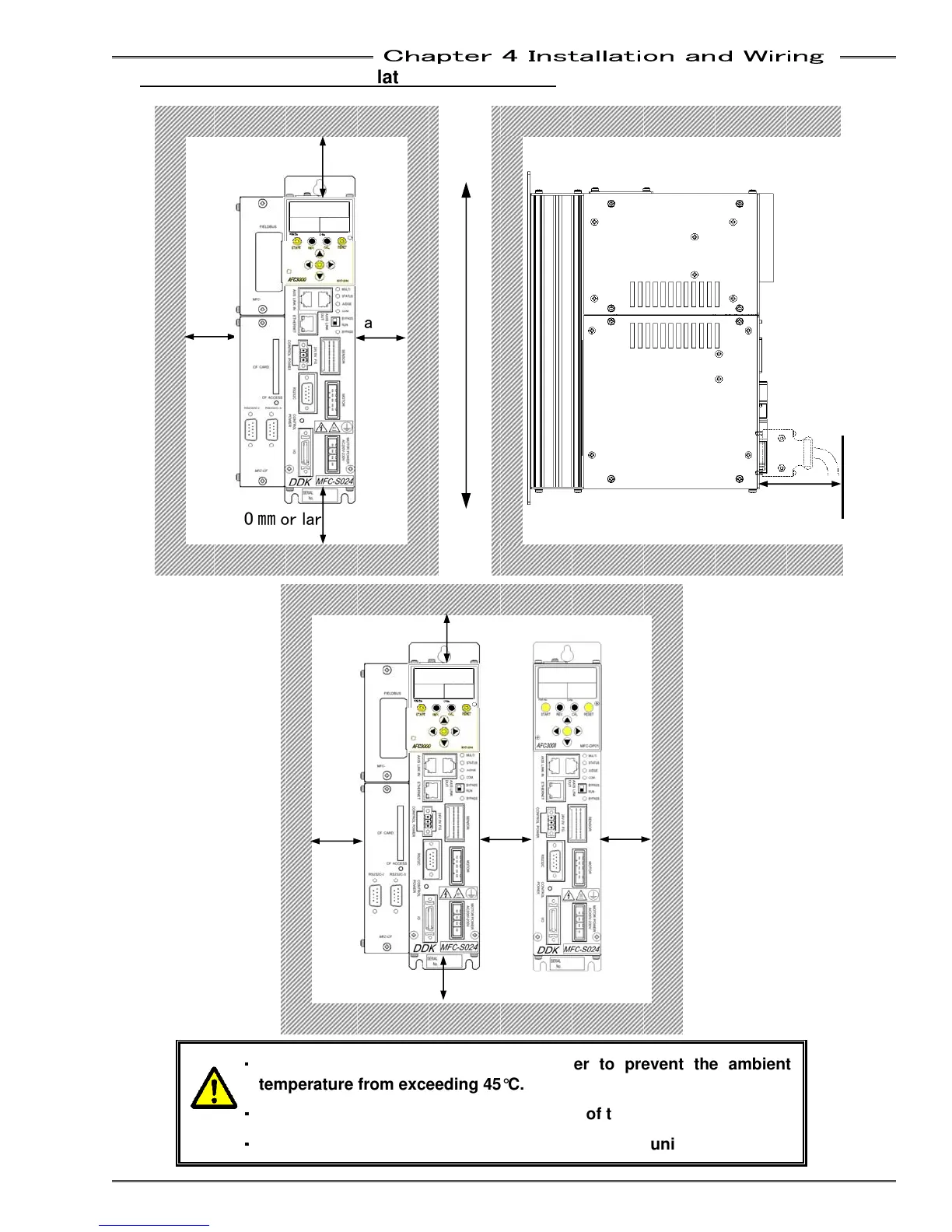

4-1-1 Control Panel Installation Requirements
・
・・
・
Install a fan or air conditioner in order to prevent the ambient
temperature from exceeding 45°C.
・
・・
・
Ensure no foreign objects enter the inside of the unit.
・
・・
・
To ensure safe removal, leave 10mm min. between units (Side to side)
Up
Down
75 ㎜ or larger
100 ㎜ or larger
10 ㎜
or
larger
100 ㎜ or larger
100 ㎜ or larger
100 ㎜ or larger
10 ㎜
or
larger
10 ㎜
or
larger
10 ㎜
or
larger
10 ㎜
or
larger
