FEC AFC3000 - Expansion Unit 1

Chapter 3 System Description
PAGE 3-13

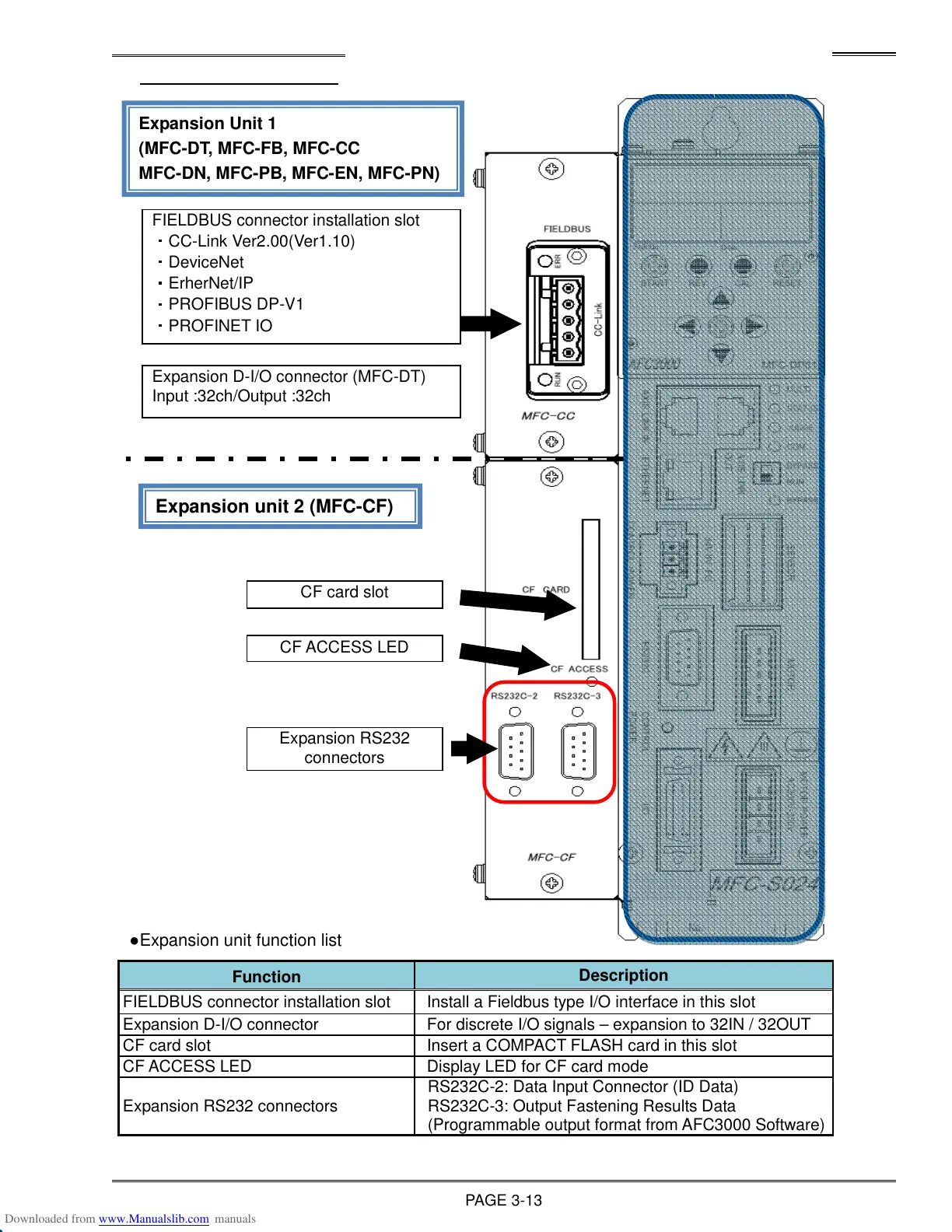

3-2-6 Expansion Unit
●Expansion unit function list
Function
Description
FIELDBUS connector installation slot Install a Fieldbus type I/O interface in this slot
Expansion D-I/O connector For discrete I/O signals – expansion to 32IN / 32OUT
CF card slot Insert a COMPACT FLASH card in this slot
CF ACCESS LED Display LED for CF card mode
Expansion RS232 connectors
RS232C-2: Data Input Connector (ID Data)
RS232C-3: Output Fastening Results Data
(Programmable output format from AFC3000 Software)
FIELDBUS connector installation slot
・ CC-Link Ver2.00(Ver1.10)
・ DeviceNet
・ ErherNet/IP
・ PROFIBUS DP-V1
・ PROFINET IO
CF card slot
CF ACCESS LED
Expansion RS232
connectors
Expansion Unit 1
(MFC-DT, MFC-FB, MFC-CC
MFC-DN, MFC-PB, MFC-EN, MFC-PN)
Expansion unit 2 (MFC-CF)
Expansion D-I/O connector (MFC-DT)
Input :32ch/Output :32ch
