FEC AFC3000 - 3-2 Controller Description

Chapter 3 System Description
PAGE 3-7
3-2 Controller Description

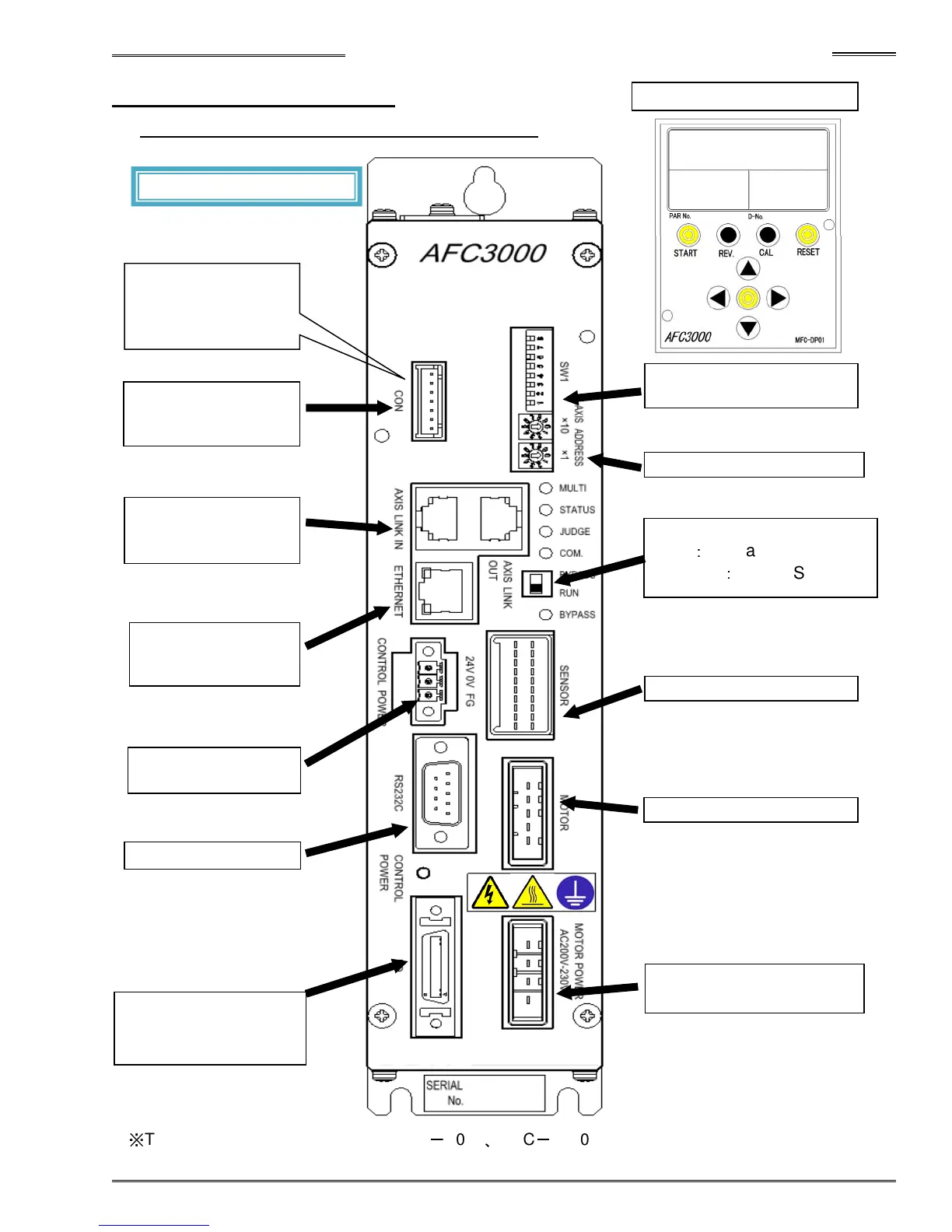

3-2-1 Front Panel Switches and Connectors
※ The picture above is for Unit Type MFC － S024 、 MFC － S060
RUN/BYPASS Switch
RUN ： Operation Mode
BYPASS ： BYPASS Mode
AXIS Link
Connector
IN/OUT
Standard I/O Connector
Input:12/Output:12
Sensor Connector
Motor Connector
AC Power Input
Connector
Display unit
Installation
Connector
ETHERNET
Connector for PC
communication
Display Unit (MFC-DP01)
Plug in connector
on the back side of
the display unit
MFC
-
S024
・
・・
・
MFC
-
S060
RS232C Connector
Control Power
Connector
AXIS No. Address Switch
Special Function
SW1Switch
