Chapter 3 System Description
PAGE 3-6

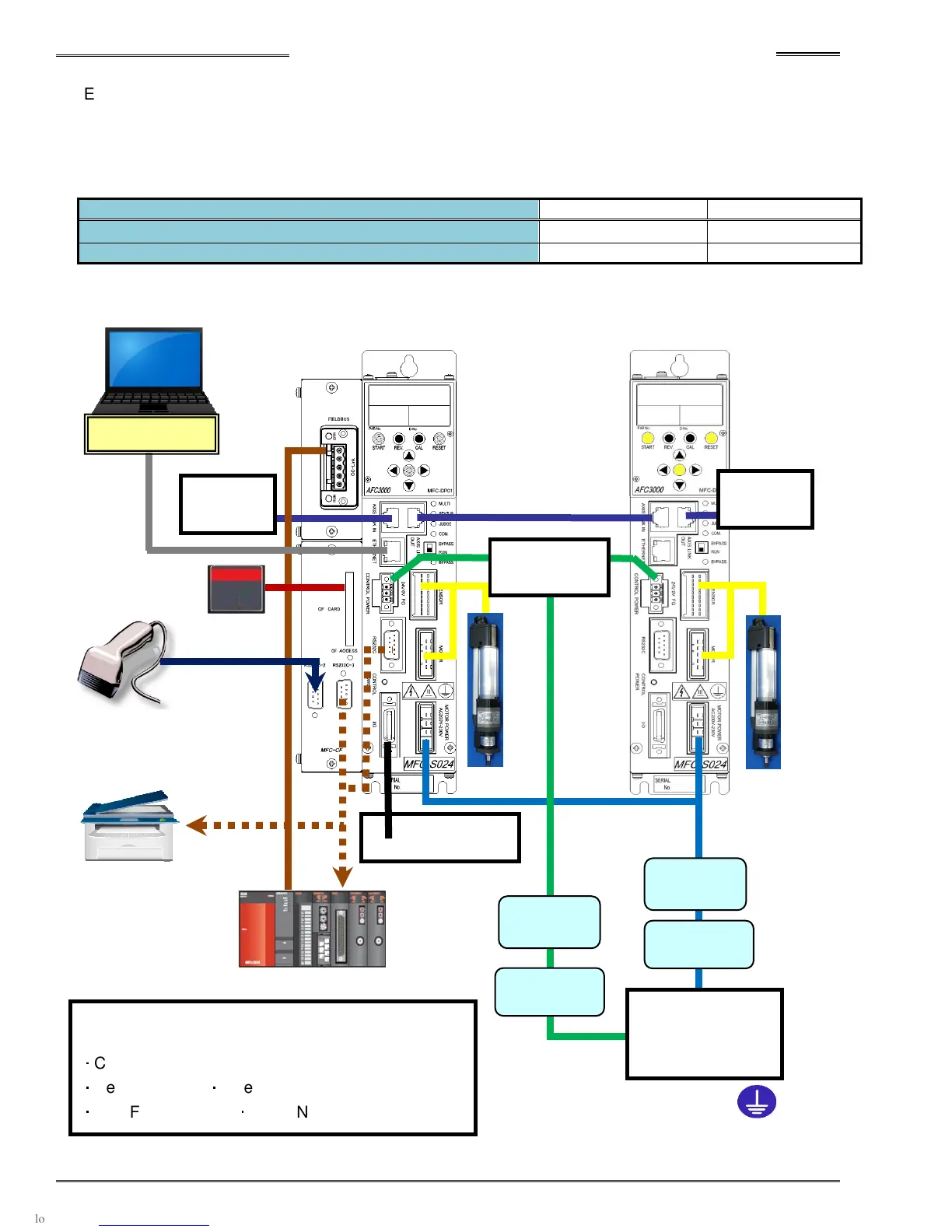

Expansion I/O and Fieldbus can be added to a Multi spindle system. Additionally, Expansion RS232C
and compact flash (CF) are availabale as an option. Parameter presets and Fastening results can be
saved on Compact Flash using the CF expansion unit. The communication between the Controller and
PC can be connected with generic (LAN) cables. RS232C expansion adds capability for ID data input via
RS232.
Unit Setting
MASTER Spdl.No. 1 SLAVE Spdl. No. 2
Unit Front Panel SW1: No. 8 Communication axis setting
ON OFF
System Parameter D
-
No
. SYS
-
003 System Indication
Multi Multi
Tool
Printer output
(RS232C)
Barcode reader
ID system
(RS232C)
Expansion
I/O PLC
Expansion I/O Connector (Input: 32ch/Output: 32ch)
Fieldbus Connector
･ CC-Link Ver2.00 (Ver1.10)
･ DeviceNet ･ ErherNet/IP
･ PROFIBUS DP-V1 ･ PROFINET IO
Tool
Compact
Flash
Control Power
Source 24V DC
LAN Connector
User
Console
Axis Link
Terminator
Axis Link
Terminator
MASTER
Spdl.
Unit No. 1
SLAVE
Spdl.
Unit No. 2
Noise
Filter
Noise
Filter
Circuit
Protector
Circuit
Protector
Grounding
3
-
phase Power
Source
200 to 230V AC
50/60Hz
External
Emergency Stop
