Chapter 4 Installation and Wiring
PAGE 4-4

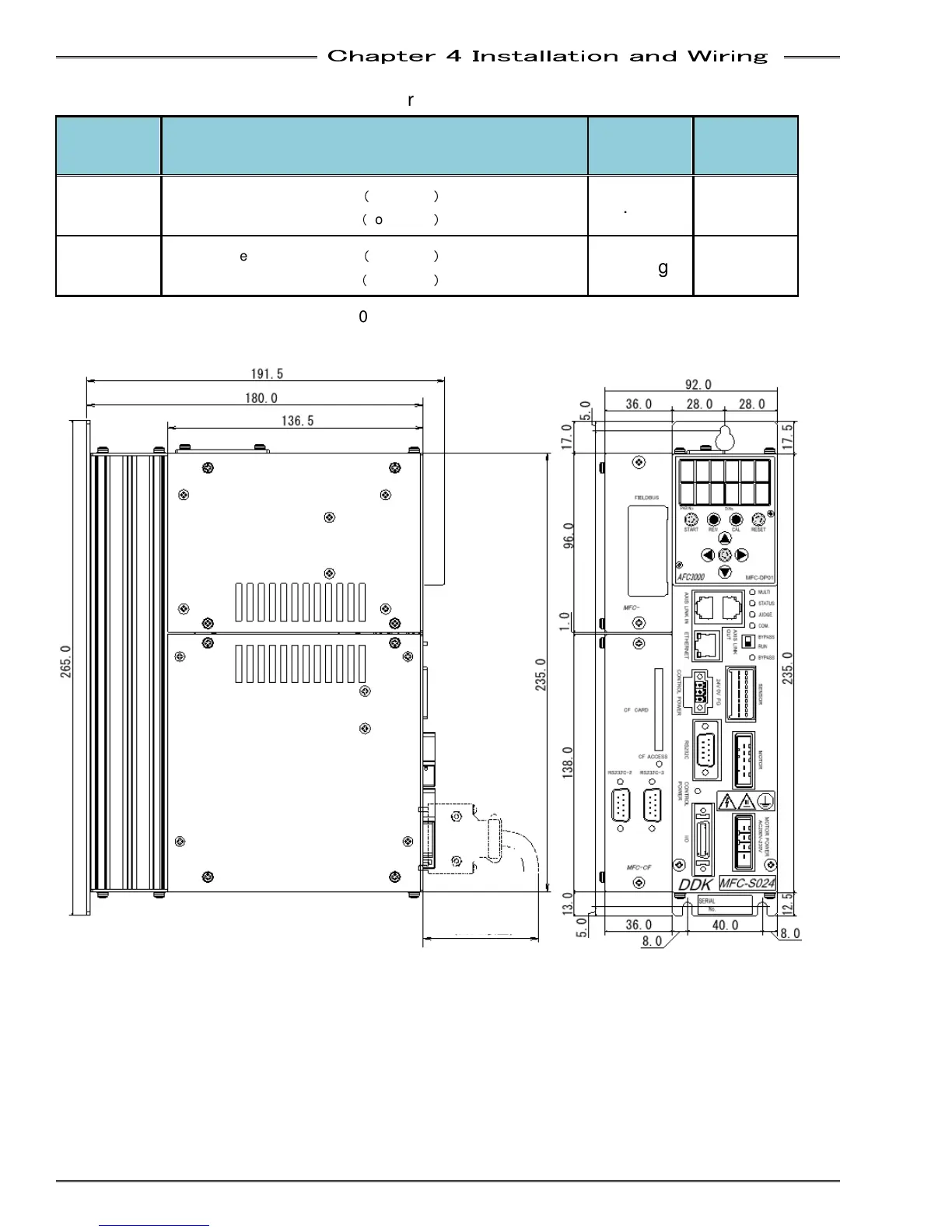

※Dimensions with an Expansion unit are stated below.
Type Installation Weight
Internal fan
MFC-S024
One bell screw hole: M4 screw
（
upper part
）
Two elongate holes: M4 screw
（
Lower part
）
2.52kg No
MFC-S060
One bell screw hole: M4 screw
（
upper part
）
Two elongate holes: M4 screw
（
Lower part
）
2.88kg No
• The weight of Expansion Unit 1 is 0.42kg and the weight of Expansion Unit 2 is 0.5kg.
