Chapter 4 Installation and Wiring
PAGE 4-17

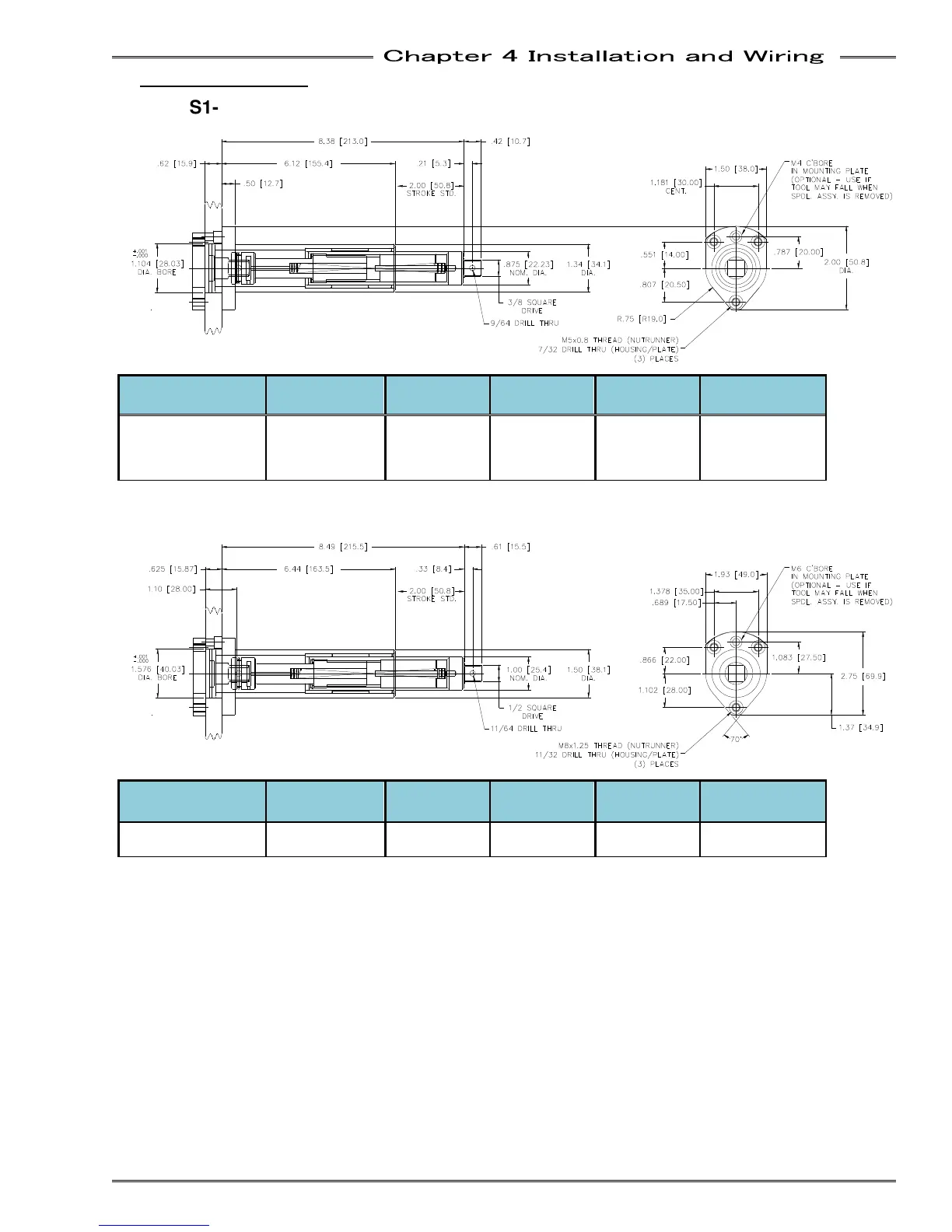

Straight (Standard)
● SA-3S1-x-38-38 (x = stroke in inches: 2 std., 3 or 4 optional)
Tool Type
Standard Stroke
[inches]
Female Input
Square Drive
Male Output
Square Drive
Mounting
Screw Size
Optional Support
Screw Size
CFT-101RS1-S
CFT-201RS1-S
CFT-281RS1-S
CFT-401RS1-S
2.00 3/8” 3/8” (3) M5x0.8 M4
● SA-3S3-x-50-50 (x = stroke in inches: 2 std., 3 or 4 optional)
Spindle Type
Standard Stroke
[inches]
Female Input
Square Drive
Male Output
Square Drive
Mounting
Screw Size
Optional Holding
Screw Size
CFT-801RS3-S
CFT-132RS3-S
2.00 1/2” 1/2” (3) M8x1.25 M6
