amc-sw2/3 <--> amc-sw2/4: mode=bypass (admin action)
Daemon heartbeat status: normal
Last heartbeat received: 0 second(s) ago
3 Log into the web-based manager and go to System > Status > Dashboard and view the
Unit Operation widget to see the status of the AMC bridge module.
Figure 47 shows bypass mode enabled.

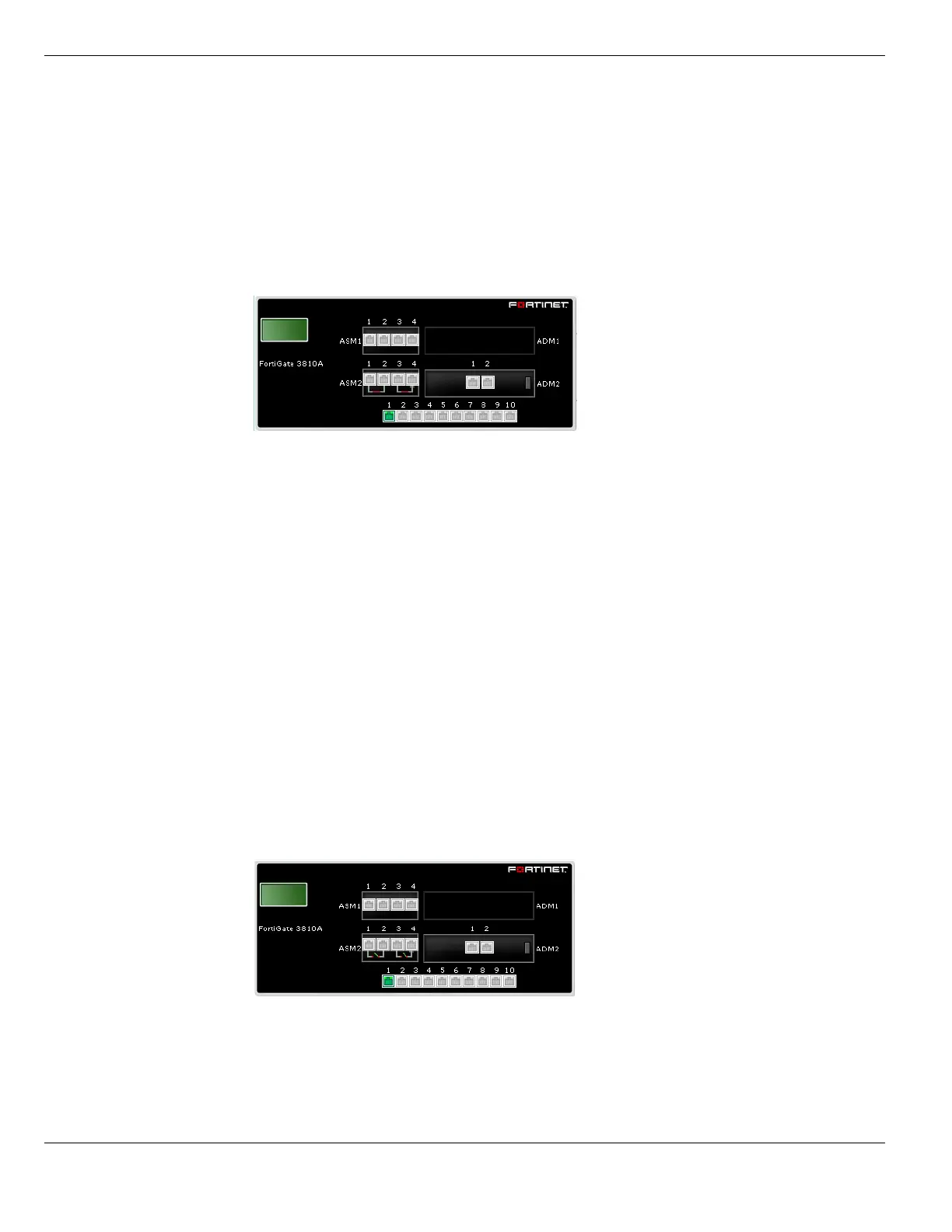

Figure 47: FortiGate-3810A with FortiGate-ASM-CX4 module installed in AMC slot 2
To manually disable bypass mode
1 Use the following command to manually disable bypass mode:
execute amc bypass disable
2 Use the following diagnose command to view the status of the AMC modules installed
in a FortiGate unit, including whether they are operating in bypass mode.
For example if you have installed a FortiGate-ASM-CX4 module in AMC slot 2 of a
FortiGate-3810A and bypass mode is disabled:
diagnose sys amc bypass status
ASM-CX4 in slot 2:
amc-sw2/1 <--> amc-sw2/2: mode=normal
amc-sw2/3 <--> amc-sw2/4: mode=normal
Daemon heartbeat status: normal
Last heartbeat received: 1 second(s) ago
3 Log into the web-based manager and go to System > Status > Dashboard and view the
Unit Operation widget to see the status of the AMC bridge module.
Figure 48 shows bypass mode disabled.
Figure 48: FortiGate-3810A with FortiGate-ASM-CX4 module installed in AMC slot 2
