Fortinet FortiGate Series Administration Guide

System Status Using the topology viewer
FortiGate Version 4.0 MR1 Administration Guide
01-410-89802-20090903 143
http://docs.fortinet.com/ • Feedback

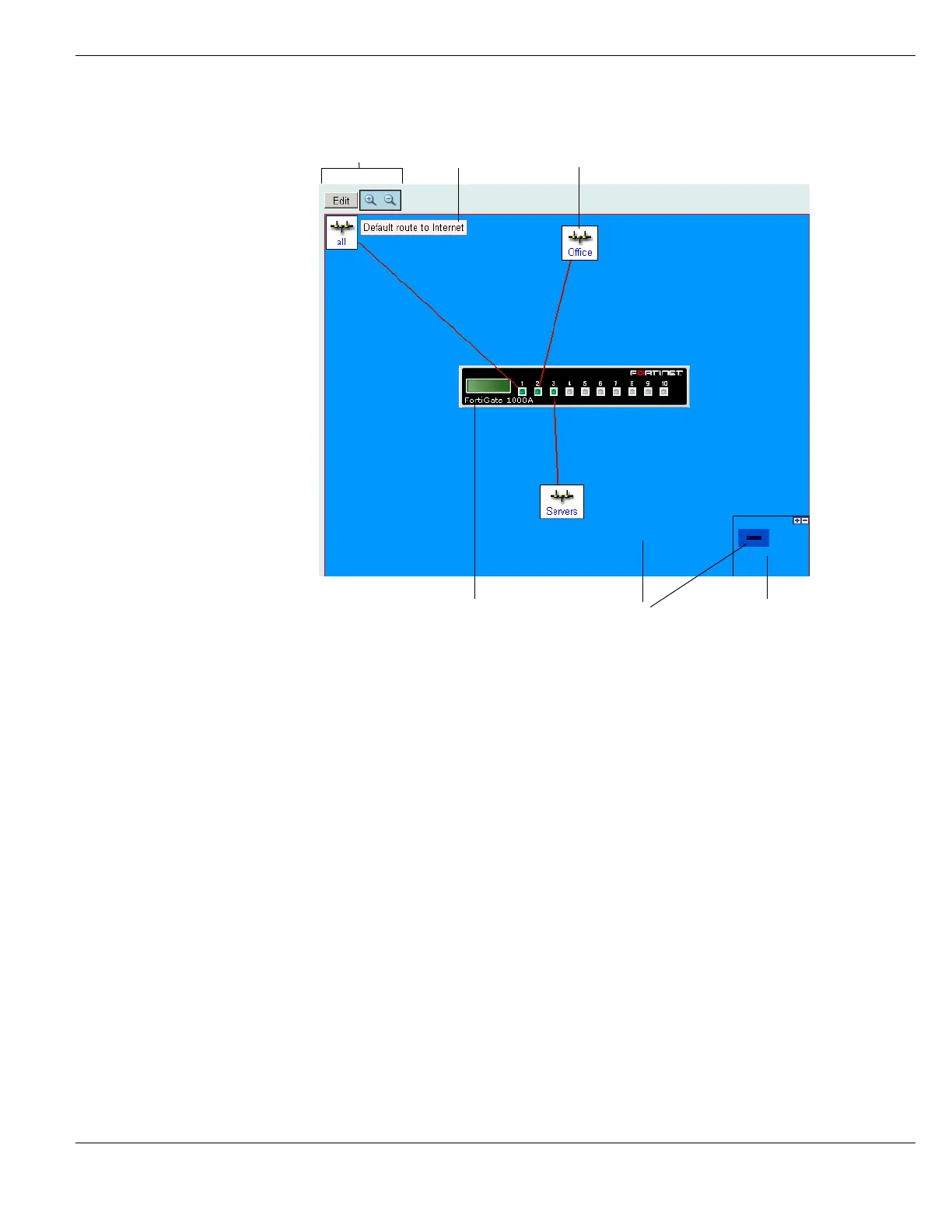

Figure 57: Topology page
Viewport and viewport control
The viewport displays only a portion of the drawing area. The viewport control, at the
bottom right of the topology page, represents the entire drawing area. The darker
rectangle represents the viewport. Drag the viewport rectangle within the viewport control
to determine which part of the drawing area the viewport displays.
The “+” and “-” buttons in the viewport control have the same function as the Zoom in and
Zoom out controls.
FortiGate unit object
The FortiGate unit is a permanent part of the topology diagram. You can move it, but not
delete it.
The FortiGate unit object shows the link status of the unit’s interfaces. Green indicates the
interface is up. Gray indicates the interface is down. Select the interface to view its IP
address and netmask, if assigned.
Text object
Zoom/Edit controls
Viewport
Viewport
control
Subnet object
FortiGate unit object
