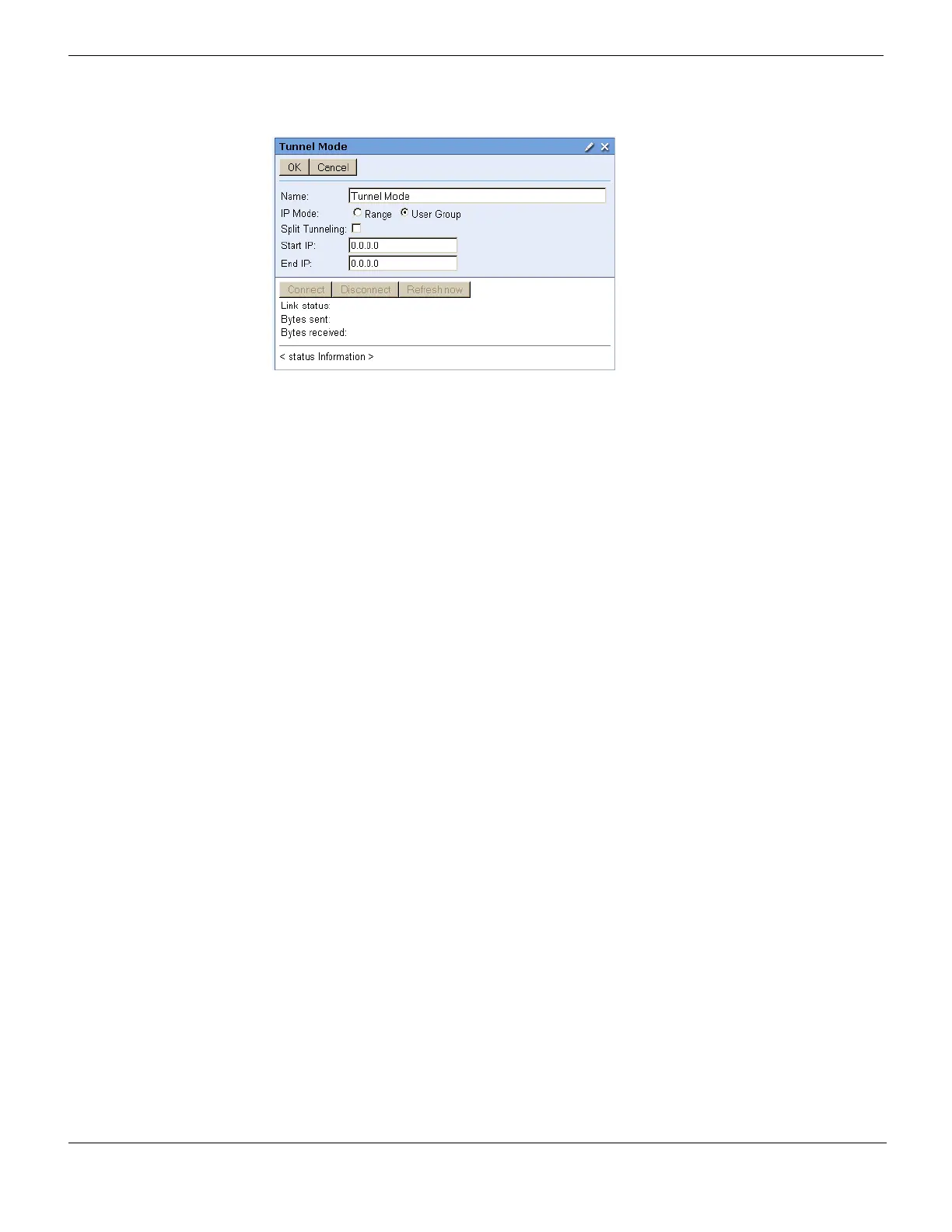

Figure 420: Using RADIUS records to assign IP addresses for SSL VPN Tunnel Mode
5 Go to User > User Group and create a new user group or edit an SSL VPN user group.
6 Set Type to SSL VPN.
7 Select the name of the Portal that contains the tunnel mode widget.
8 Add the RADIUS server that assigns IP addresses to the Members list and save the
SSL VPN user group.
9 Go to Firewall > Policy and select Create New.
10 Set Action to SSL VPN.
11 Add an identity based policy and add the SSL VPN user group containing the RADIUS
server and the portal to the Selected User Groups list.
12 Configure the remaining firewall policy settings as required.
To dynamically assign IP addresses for dialup IPSec VPN
To use a RADIUS server to assign IP addresses for dialup IPSec VPN users you
configure an IPSec DHCP server for your IPSec VPN configuration and configure
advanced settings to set IP Assignment Mode to User-group defined method. You must
also add the RADIUS server to a firewall user group. Then in the phase 1 configuration of
the dialup VPN you configure advanced settings to set XAUTH to server mode and select
the firewall user group that you added the RADIUS server to.
1 Go to System > DHCP and add or edit the IPSec DHCP server used by the IPSec VPN
configuration.
2 Select Advanced and set IP Assignment Mode to User-group defined method and save
the changes to the DHCP server.
3 Go to User > User Group and create a new user group or edit a Firewall user group.
4 Set Type to Firewall.
5 Add the RADIUS server that assigns IP addresses to the Members list and save the
Firewall user group.
6 Go to VPN > IPSec and create or edit a User Phase 1 with Remote Gateway set to
Dialup User.
7 Select Advanced.
8 Set XAUTH to Enable as Server.
9 Set User Group to the firewall user group containing the RADIUS server.
10 Configure the remaining IPSec VPN settings as required.
