Main Menu
MAIN MENU - SCREEN KEY SET

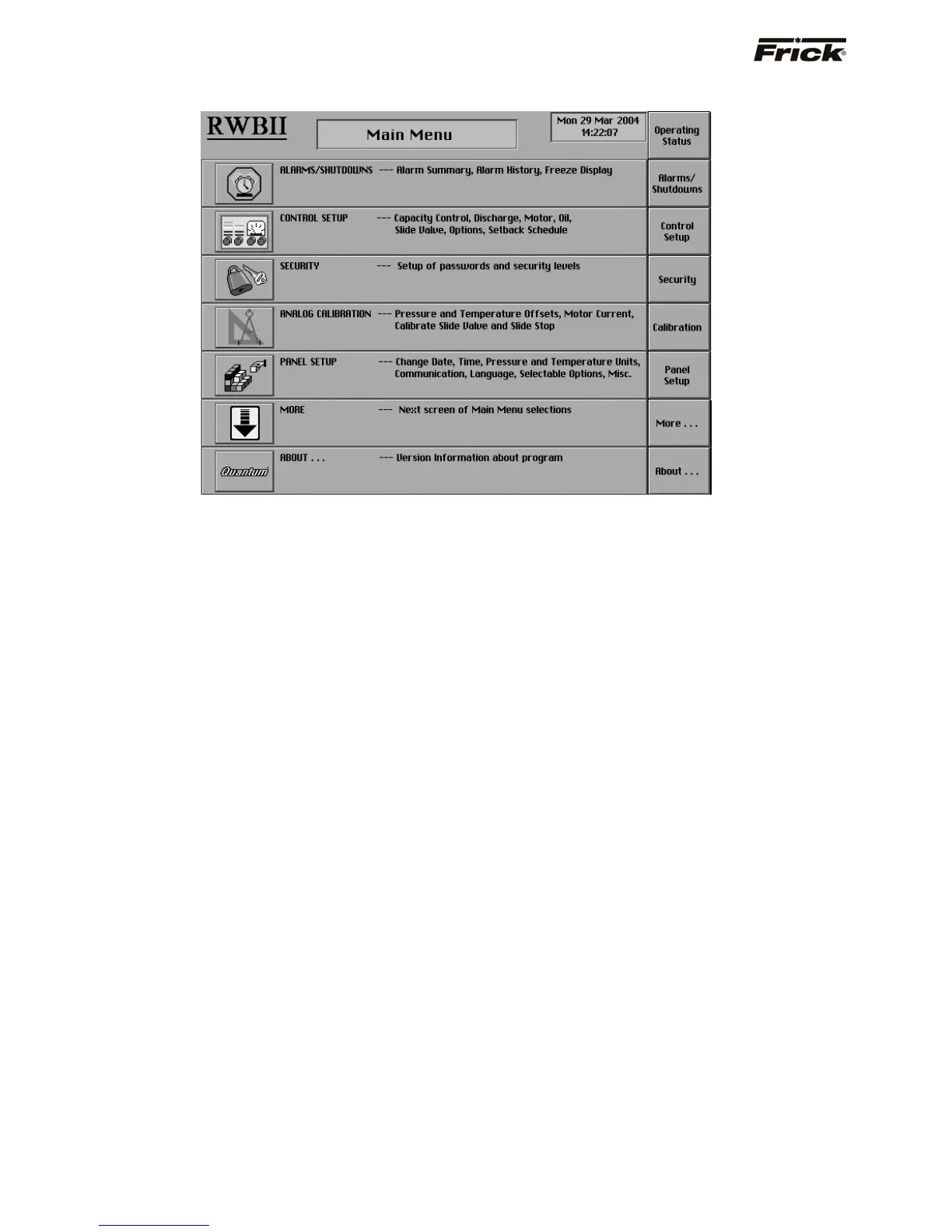

The Main Menu screen provides a selection of screen
keys to guide the operator through all the screens. The
following are descriptions of each screen selection and a
listing of further selections:
[Operating Status] - Shows the Operating Status
screen.
[Alarms/Shutdowns] - Shows the Alarms /
Shutdowns screen which shows in red text the
current Failures, and the Date, and Time of the
Failure. The following selections are available:
• [Clear Alarms]
• Alarms/Shutdowns History Screen
• Freeze Display
• Power Down Display
[Control Setup] - Shows the Control Setup menu
screen. The following items are selections:
• Capacity Control Setpoints
• Compressor Safeties Setpoints
• Motor Control
• Oil Setpoints
• Slide Valve Setpoints (If applicable,
reference Compressor Model Differences)
• Setback Schedule
• Options Setup
• Auxiliaries 3-8 (If applicable, see Panel
Setup)
• Auxiliary Analog Temperatures and
Pressures (If applicable, see Panel Setup)
• Pumpdown/DX Circuit Setup (If applicable,
see Panel Setup)
[Security] - Shows the current security privilege level
and if setpoints are allowed to be changed from the
keypad. Security can be changed on this screen.
[Calibration] - Shows the Analog Calibration
screen. From this screen the following calibrations
can be selected:
• Pressure Transducer Ranges and Offsets
• Temperature Probe Types, Ranges and
Offsets
• Calibrate Motor Current
• Calibrate Slide Valve and Slide Stop (If
applicable, reference Compressor Model
Differences)
• Calibrate Remote Control Setpoint (If
applicable, see Panel Setup)
• Calibrate Slide Valve Position (If applicable)
• Calibrate Auxiliary Analog (If applicable, see
Panel Setup)
• Kilowatt Monitor Calibration and Setup (If
applicable, see Panel Setup)
[Panel Setup] - Shows the Panel Setup screen. This
screen has the following menu items for setup:
• Change Current Time and Date
• Pressure Units
• Temperature Units
• Language
• Change Communications
• Capacity Control Options
[About…] - Shows the About screen. This screen
shows the software version, the sales order number,
copyright notification, main board information, analog
board(s) information and digital board(s) information.
[Real Time] - Real Time Trending feature.
[History] – Historical Trending and data logging.
[Service Screen] - Selecting this key shows the
Service Screen that provides tools for troubleshooting
and setting up the Quantum™.
