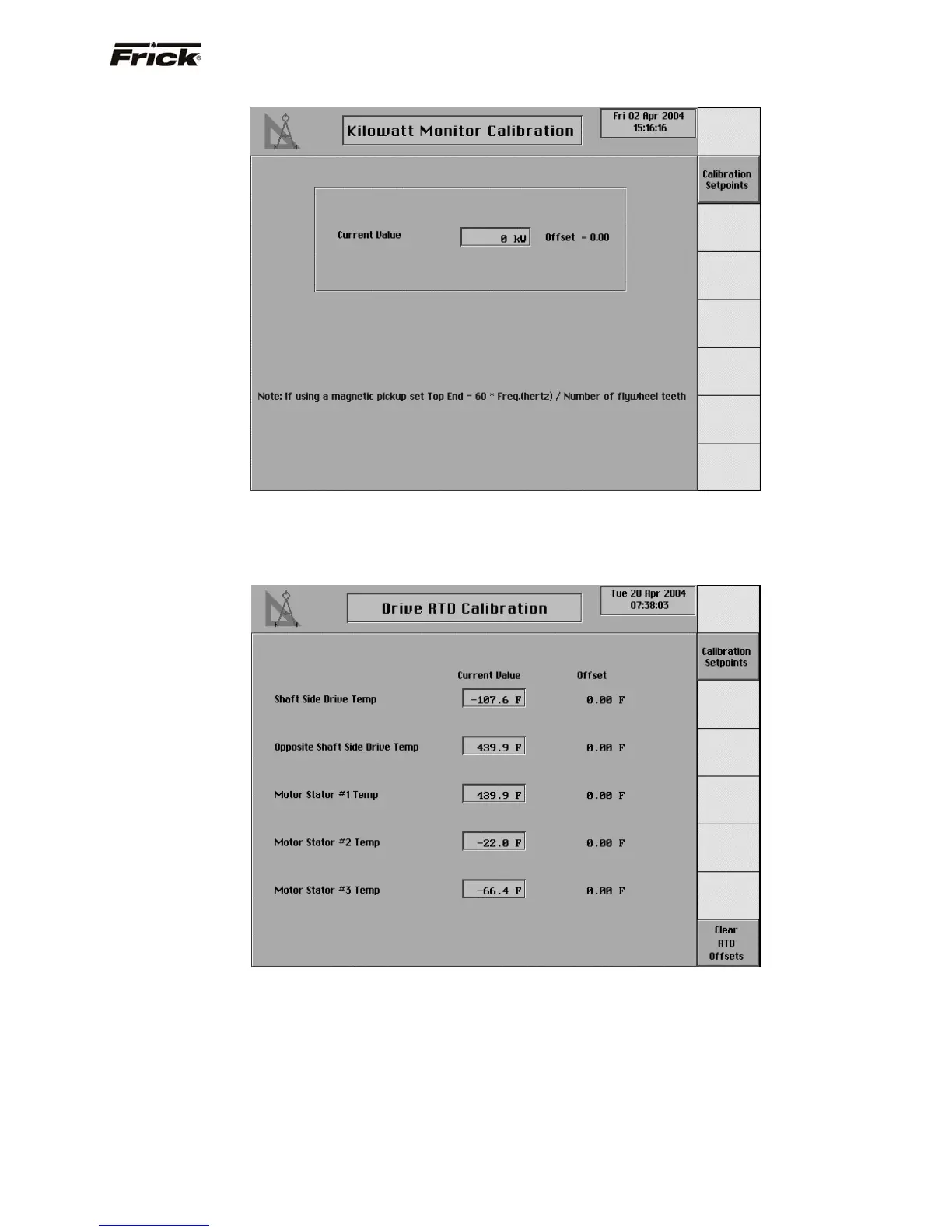

Kilowatt Monitor Calibration
This screen will show if Kilowatt Monitor Calibration and
Setup was enabled in Panel Setup. This screen is shown
for calibrating the Kilowatt input. The current value of the
kW Monitoring analog input is displayed on the Operating
Status screen.
Drive RTD Calibration
This screen will show if Kilowatt Monitor Calibration and
Setup was disabled in Panel Setup, and the necessary
PhD channels have been properly setup. This screen is
shown for calibrating the compressor motor shaft and
stator temperatures. The current value of each of these
devices is displayed here, along with the capability of
adjusting each of the device offsets.
FRICK
QUANTUM™ COMPRESSOR CONTROL PANEL S90-010 O
OPERATION Page 75
