S90-010 O FRICK
QUANTUM™ COMPRESSOR CONTROL PANEL
Page 42 OPERATION

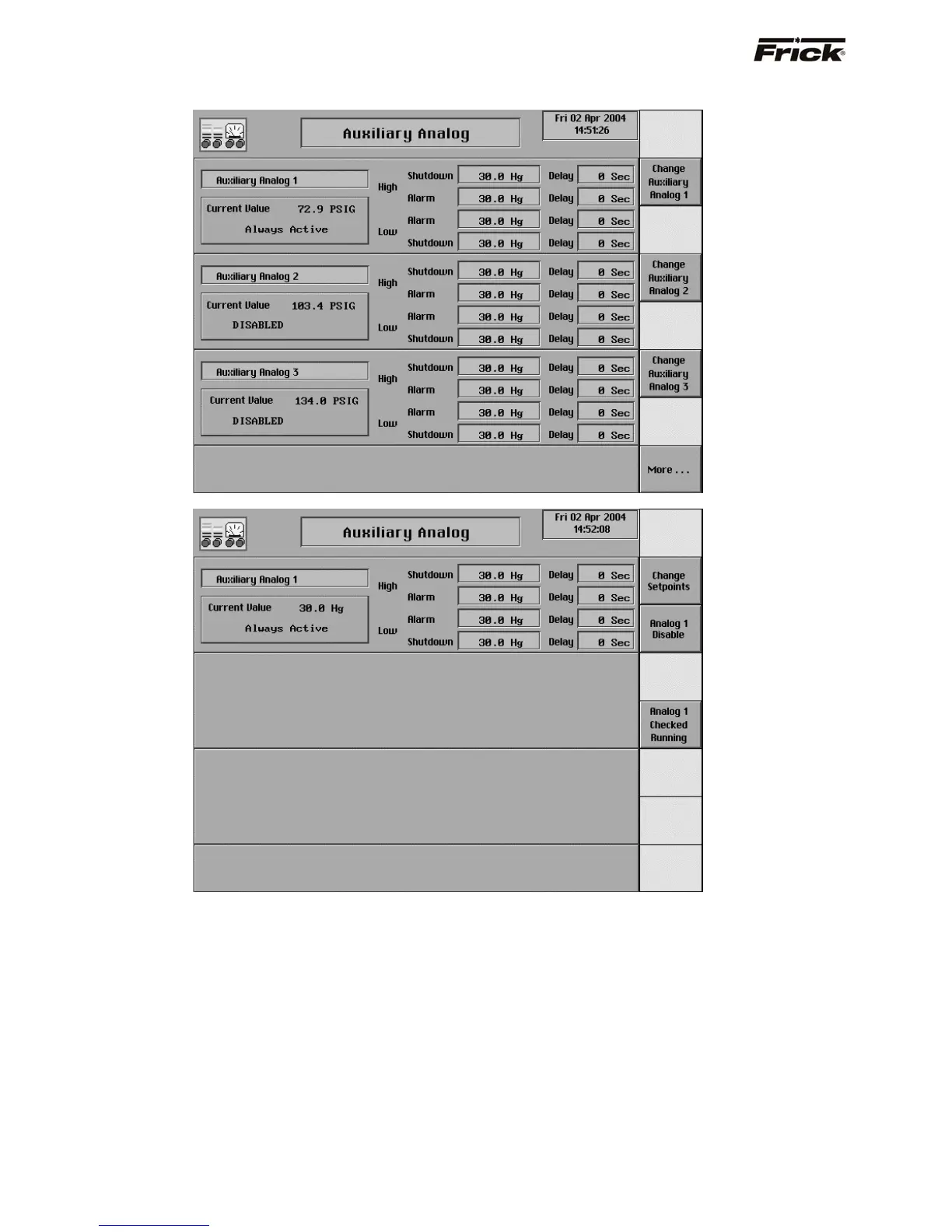

Auxiliary Analog (Temperatures & Pressures)
The Temperature/Pressure Monitoring Auxiliary Analogs
#1 - #9 and the Side Load/Economizer analog inputs of
Analog Board #2 are setup here. These analog auxiliaries
can be used for either temperature or pressure monitoring.
The switching of these to temperature or pressure analog
readings is done in Factory Setup. This screen shows the
current reading of the analog value.
This screen has the following setpoints:
High Shutdown - If the analog reading is greater
than or equal to this setpoint, for the shutdown time
delay, the compressor will shut down.
High Shutdown Delay - The time in seconds that the
analog reading is greater than or equal to the analog
shutdown before the compressor will shut down.
High Alarm - If the analog reading is greater than or
equal to this setpoint, for the alarm time delay, an
alarm occurs.
High Alarm Delay - The time in seconds that the
analog reading is greater than or equal to the high
analog alarm setpoint before notification of the alarm.
Low Alarm - If the analog reading is less than or
equal to this setpoint, for the alarm time delay, an
alarm occurs.
Low Alarm Delay - The time in seconds that the
analog reading is less than or equal to the analog
alarm setpoint before notification of the alarm.
