FRICK
QUANTUM™ COMPRESSOR CONTROL PANEL S90-010 O
OPERATION Page 65

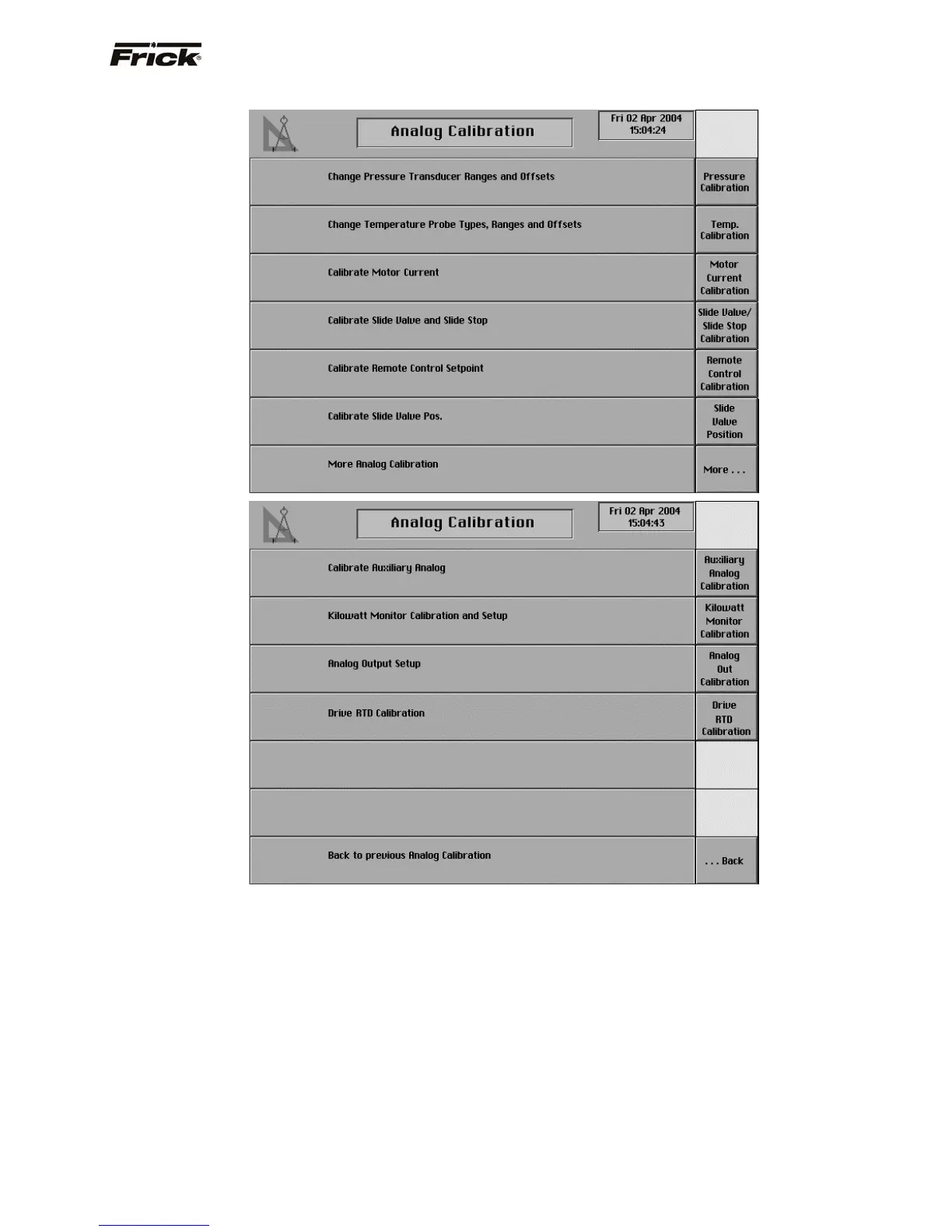

Analog Calibration
The following analog calibration selection keys are shown:
[Pressure Calibration] - Change Pressure
Transducer Ranges and Offsets
[Temperature Calibration] - Change Temp. Probe
Types, Ranges and Offsets
[Motor Current Calibration] - Calibrate Motor
Current (Not applicable if using a RAM DBS Motor
Starter)
[Slide Valve/Slide Stop Calibration] - Calibrate
Slide Valve and Slide Stop (If applicable, reference
Compressor Model Differences)
[Remote Control Calibration] - Calibrate Remote
Control Setpoint (If applicable, see Panel Setup)
[Slide Valve Calibration] - Calibrate Slide Valve
Position (If applicable, see Panel Setup)
[Auxiliary Analog Calibration] - Calibrate Auxiliary
Analog (If applicable, see Panel Setup)
[Kilowatt Monitor Calibration] - Kilowatt Monitor
Calibration and Setup (If applicable, see Panel
Setup)
[Analog Out Calibration] - Calibrate the Analog
Outputs (If applicable, see Panel Setup)
[Drive RTD Calibration] - Allows offsets to be
entered for the RTD devices used for
vibration/temperature monitoring (If applicable, see
Panel Setup).
