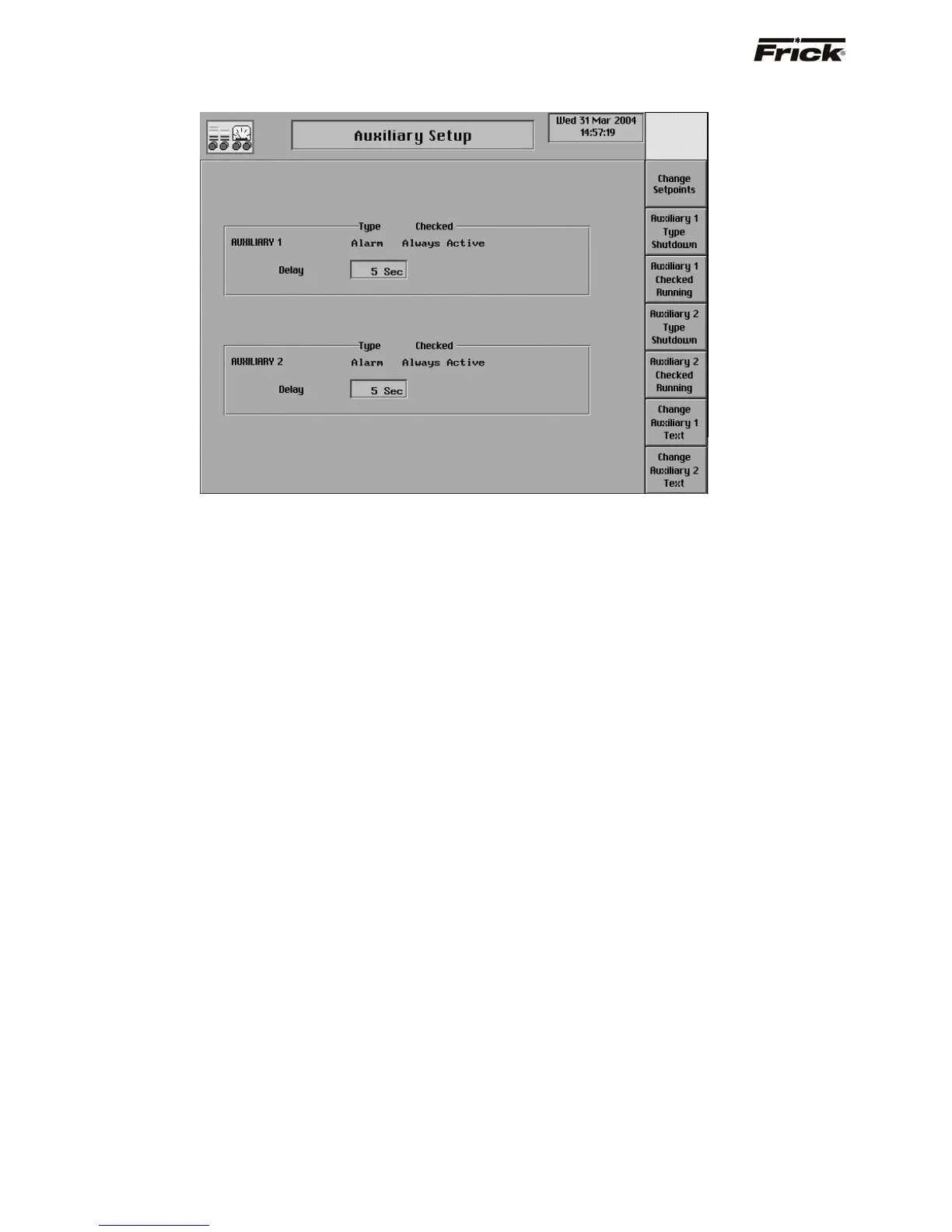

Auxiliary Setup
This screen is shown if a type of [Auxiliary 1 and 2]
control was selected in Panel Setup. The auxiliary digital
input modules can be selected as an alarm or a shutdown
when the auxiliary input is de-energized. The auxiliary can
be checked either Always Active or When running.
• Always Active means that at anytime the input
module is de-energized, the selected type of
auxiliary will occur if the module remains de-
energized for the length of the delay period.
• When running means that only when the
compressor is running and the input module is
de-energized, the selected type of auxiliary will
occur if the module remains de-energized for the
length of the delay period.
The following screen keys are used to setup how the
auxiliary will function:
[Change Setpoints] - Changes the number of
seconds to delay prior to producing either an alarm or
a shutdown.
A toggle key is provided that changes between the
following types of auxiliary:
[Auxiliary 1 Type Alarm] - If the Auxiliary 1 is
presently a shutdown type of auxiliary this screen key
is shown so that the operator can change the auxiliary
to an alarm type.
[Auxiliary 1 Type Shutdown] - If the Auxiliary 1 is
presently an alarm type of auxiliary, this screen key is
shown so that the operator can change the auxiliary
to a shutdown type.
A toggle key is provided that changes when the auxiliary is
checked:
[Auxiliary 1 Checked Always] - If the Auxiliary 1
input module is presently checked When running, this
screen key is shown so that the operator can change
when it is checked to Always Active.
[Auxiliary 1 Checked Running] - If the Auxiliary 1
input module is presently checked Always Active, this
screen key is shown so that the operator can change
when it is checked to When running.
Note: If an Auxiliary 2 option was also selected, then
the screen keys described above but labeled Auxiliary
2 are relevant to setting up the Auxiliary 2 input
module.
S90-010 O FRICK QUANTUM™ COMPRESSOR CONTROL PANEL
Page 60 OPERATION
