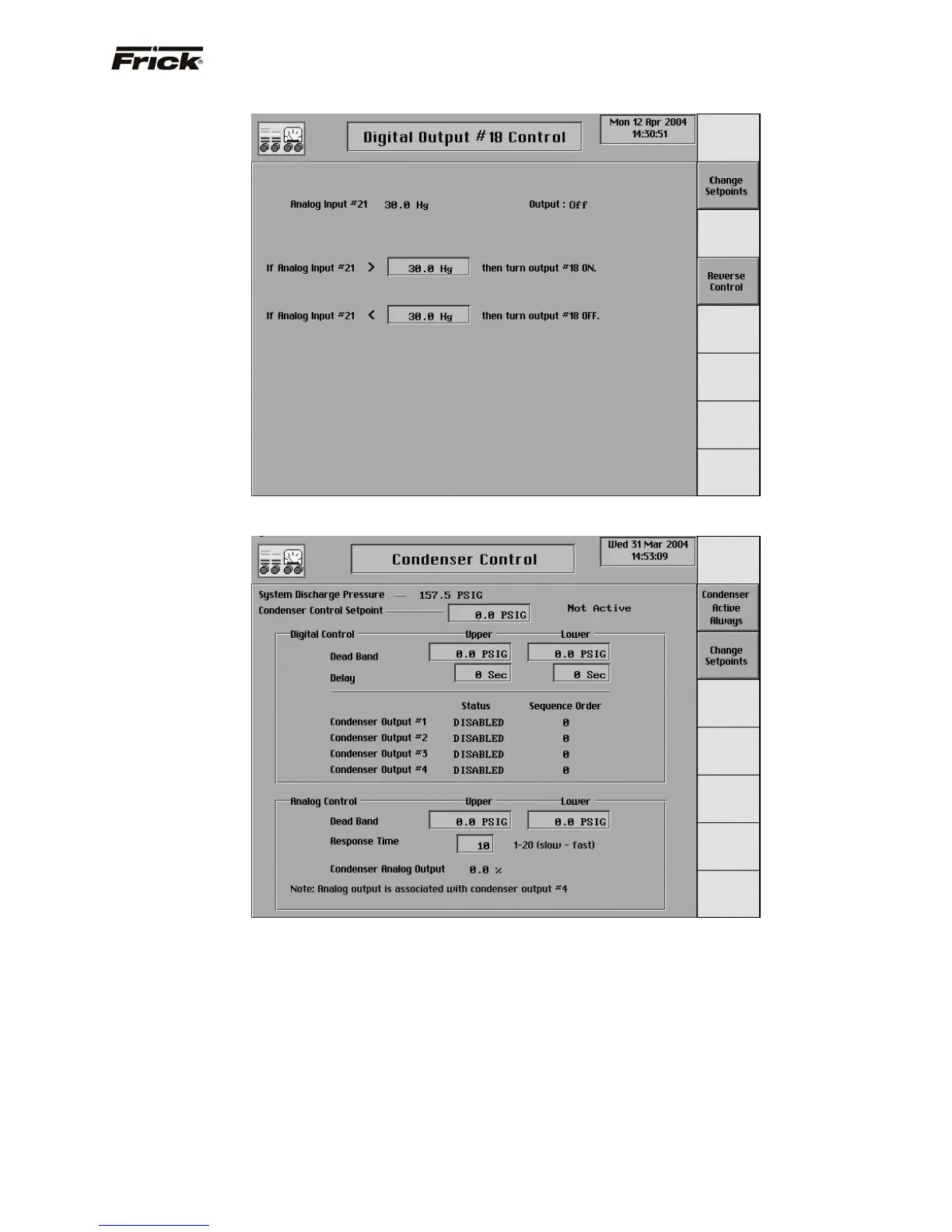

Digital Output #18 Control
Condenser Control
The Condenser Control screen is shown if a type of
Condenser Control was selected in Panel Setup. Only
the setpoints of the selected Condenser Control will show.
Sequence set points are based on the system Discharge
Pressure, analog channel 11. An additional pressure
sensor for system discharge is required. The discharge
level the condensers are operating on has its own
pressure to maintain. The control system maintains
Discharge Pressure by sequencing the condenser
devices. Digital control is used to turn on and off the
condenser digital outputs. Analog control is used to vary
the analog signal of the condenser analog output.
This setpoint is required for both Digital Control and
Analog Control:
Condenser Control Setpoint - This is used to control
the sequencing on and off of the condenser digital
outputs and/or the signal strength of the condenser
analog output.
A Digital Control data box is shown if digital control is
selected. The status of the condenser outputs is shown:
On - This output is energized.
Off - This output is de-energized.
FRICK
QUANTUM™ COMPRESSOR CONTROL PANEL S90-010 O
OPERATION Page 47
