Economizer Setup

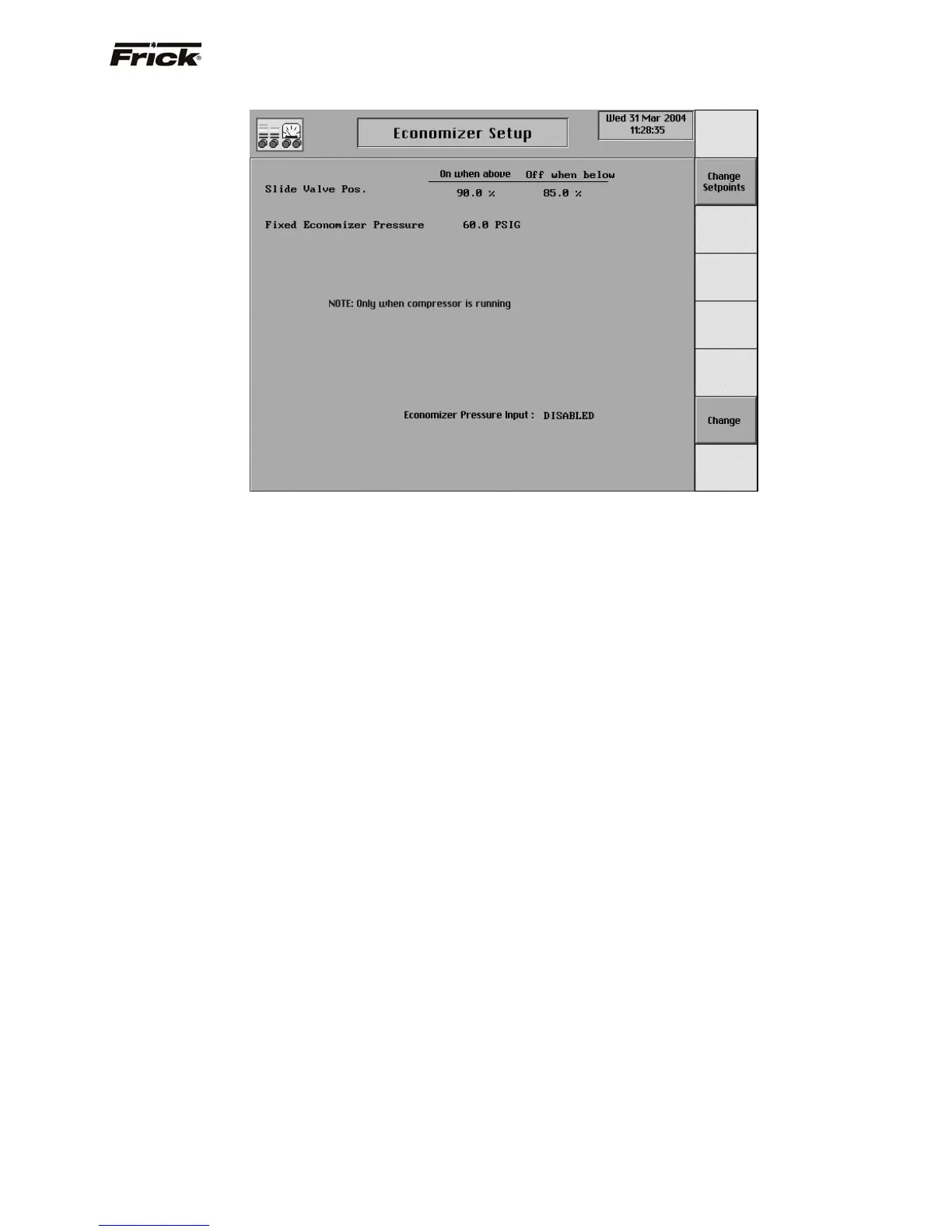

The following setpoints are shown on this screen:
On when above - The Economizer digital output
(module 11 on digital board #1) is turned on when
the Slide Valve position is greater than this
setpoint.
Off when below - The Economizer digital output
(module 1 on digital board #1) is turned off when
the Slide Valve position goes below this setpoint.
Fixed Economizer Pressure -
Economizer Pressure Input - Shows the current
state of the input. A toggle key is provided to
change from Disabled to Enabled.
Note: These setpoints are active only when the
compressor is running.
