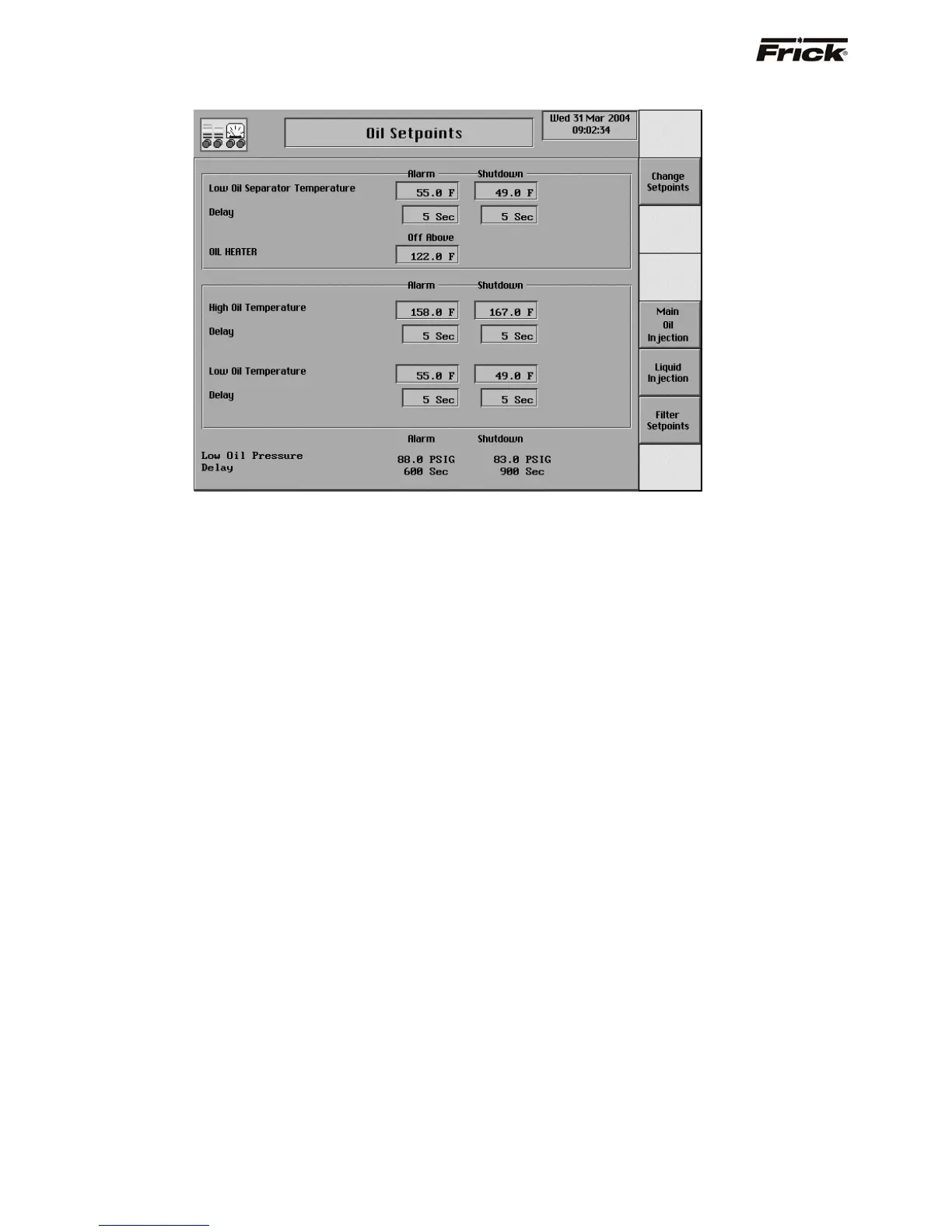

Oil Setpoints
The following oil separator setpoints are on this screen:
Low Oil Separator Temperature Alarm - If the Oil
Separator Temperature is less than or equal to this
setpoint, for the alarm time delay, an alarm occurs.
Low Oil Separator Temperature Shutdown - If the
Oil Separator Temperature is less than or equal to
this setpoint, for the shutdown time delay, the
compressor will shut down.
Low Oil Separator Temperature Alarm Delay - The
minimum time in seconds that the Oil Separator
Temperature is less than or equal to the Low Oil
Separator Temperature Alarm setpoint before
notification of the alarm.
Low Oil Separator Temperature Shutdown Delay -
The minimum time in seconds that the Oil Separator
Temperature is less than or equal to the Low Oil
Separator Shutdown setpoint before the compressor
will shut down.
Oil Heater Off Above - While the compressor is not
running, the Oil Separator heater(s) will be turned off
if the temperature is greater than or equal to this
setpoint; however, if the temperature is 1 °C below
this setpoint the Oil Separator heater(s) will be turned
on. If the compressor is running, the oil heater(s) are
turned off.
The following oil setpoints are on this screen:
High Oil Temperature Alarm - If the Oil Temperature
is greater than or equal to this setpoint, for the alarm
time delay, an alarm occurs.
High Oil Temperature Shutdown - If the Oil
Temperature is greater than or equal to this setpoint,
for the shutdown time delay, the compressor will shut
down.
High Oil Temperature Alarm Delay - The minimum
time in seconds that the Oil Temperature is greater
than or equal to the High Oil Temperature Alarm
setpoint before notification of the alarm.
High Oil Temperature Shutdown Delay - The
minimum time in seconds that the Oil Temperature is
greater than or equal to the High Oil Temperature
Alarm setpoint before the compressor will shut down.
Low Oil Temperature Alarm - If the Oil Temperature
is less than or equal to this setpoint, for the alarm time
delay, an alarm occurs.
Low Oil Temperature Shutdown - If the Oil
Temperature is less than or equal to this setpoint, for
the shutdown time delay, the compressor will shut
down.
Low Oil Temperature Alarm Delay - The minimum
time in seconds that the Oil Separator Temperature is
less than or equal to the Low Oil Separator Alarm
setpoint before notification of the alarm.
Low Oil Temperature Shutdown Delay - The
minimum time in seconds that the Oil Separator
Temperature is less than or equal to the Low Oil
Separator Shutdown setpoint before the compressor
will shut down.
The following displayed Oil Setpoints can not be modified:
Low Oil Pressure Alarm - If the Oil Pressure is less
than or equal to this setpoint, for the alarm time delay,
an alarm occurs.
Low Oil Pressure Shutdown - If the Oil Pressure is
less than or equal to this setpoint, for the shutdown
time delay, the compressor will shutdown.
