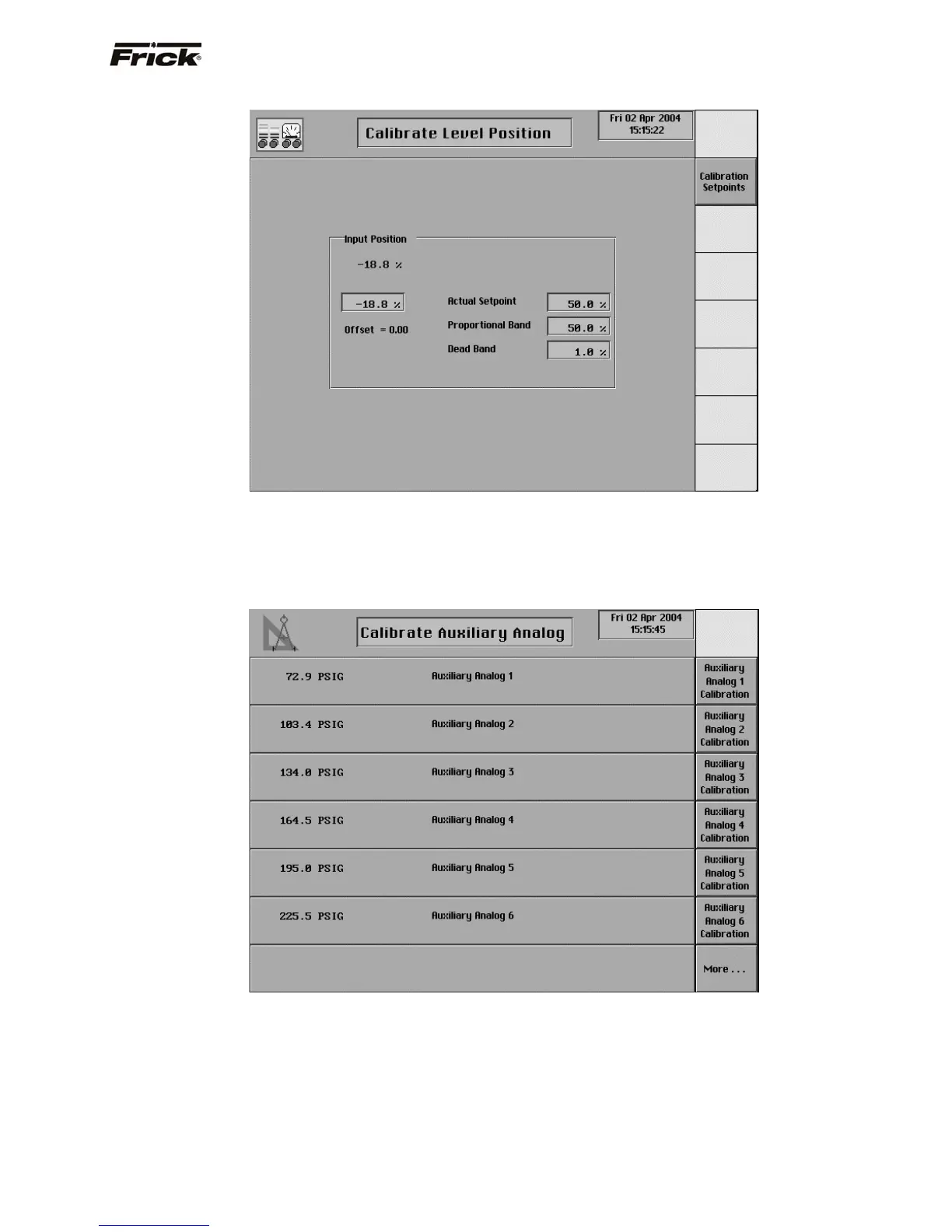

Calibrate Level Position
This screen will show if YORK S-7 was enabled as the
compressor type in Panel Setup. This screen is used to
calibrate the analog signal of the level input. Channel 13
on analog board 1 is used to monitor the liquid level.
Note: Outputs 9 & 10 are used as Level Control (9 =
Increase, 10 = decrease). When YORK S-7 is selected
as Compressor Model, these output assignments will
change to (9 = Liquid Injection, 10 = High Level).
Calibrate Auxiliary Analog
.
To Next Page
