FRICK
QUANTUM™ COMPRESSOR CONTROL PANEL S90-010 O
OPERATION Page 41

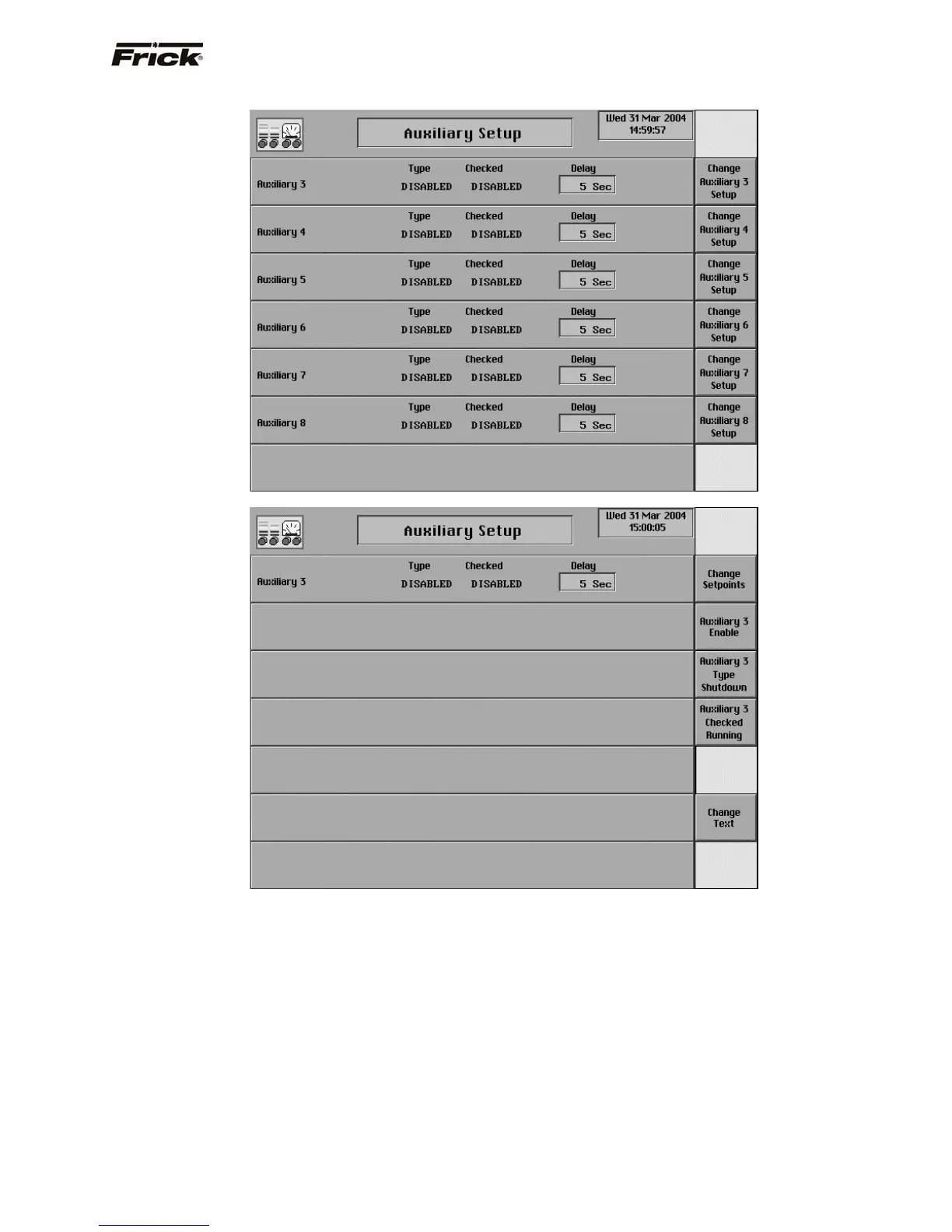

Auxiliary Setup
The Auxiliaries #3 - #8 are programmable digital inputs on
Digital I/O Board #2. These additional auxiliaries have the
same settings as Auxiliary #1 and #2 (See Auxiliary
Setup Screen). In addition to these settings there is a
toggle key that changes between the following selections:
[Auxiliary x Enable] - This key is provided if this
feature is disabled for this auxiliary. x is used here to
refer to the auxiliary (3-8) that has been selected for
setup.
[Auxiliary x Disable] - This key is provided if this
feature is enabled. x is used here to refer to the
auxiliary (3-8) that has been selected for setup.
