• Jam Run Delay
• Service Factor
• Current Unbalance Alarm Level
• Current Unbalance Alarm Delay
• RTD Temperature Alarm Level
• RTD Temperature Alarm Delay
Alarms and trips (shutdowns) that are recorded by the
DBS are shown on the RAM DBS Motor Starter screen
but must be cleared from the Alarms / Shutdowns
screen.
The following special selections are on these two screens:
[Fault History] – This selection displays the RAM
DBS Motor Starter screen with the fault history of the
RAM DBS system. This information is read directly
from the system.
[Load Factory Setpoints] – This selection will reload
the RAM DBS factory default settings.
[Clear Fault History] – This selection will clear the
fault history at the RAM DBS system.

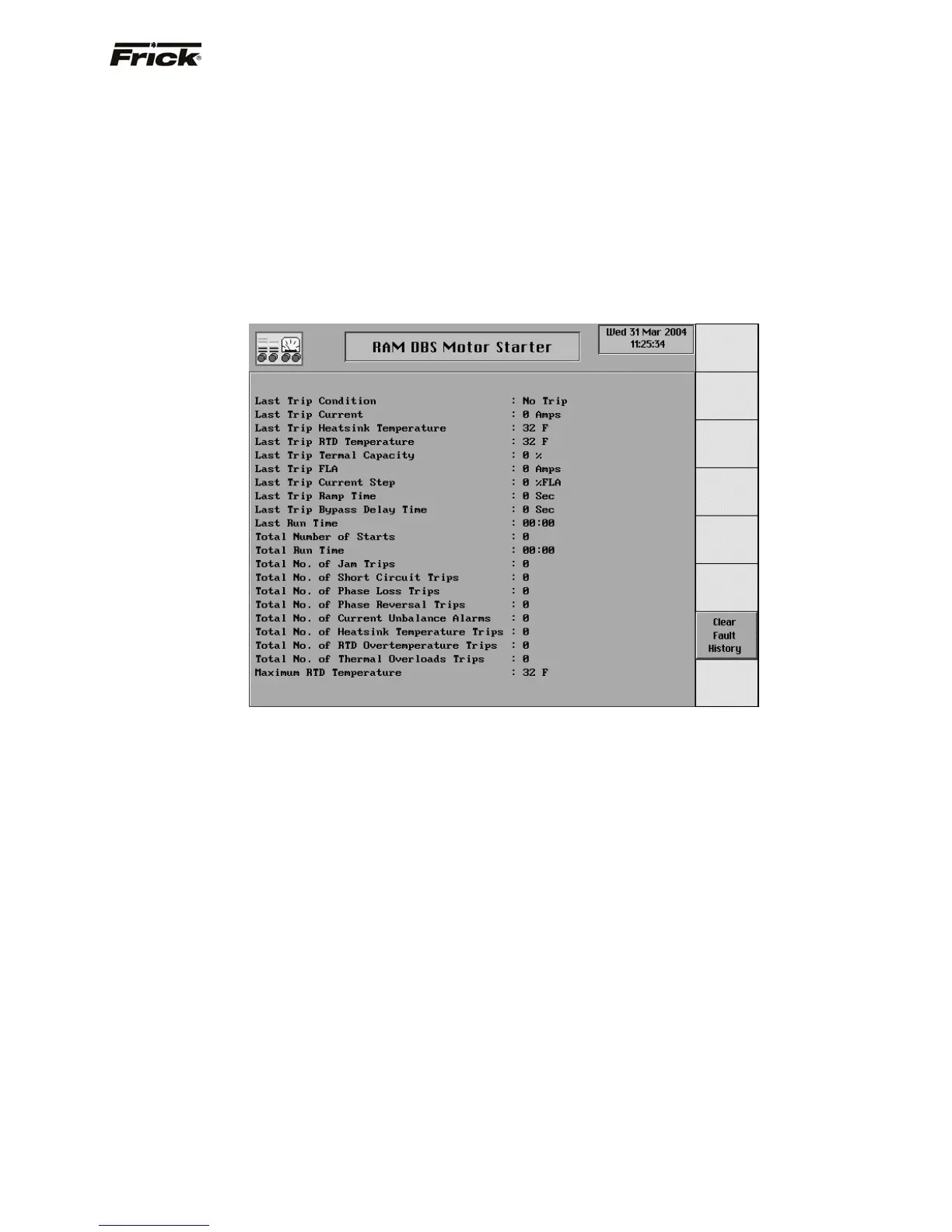

RAM DBS Motor Starter – FAULT HISTORY
