TX100 S3 Core Edition Upgrade and Maintenance Manual 103
System fan modules

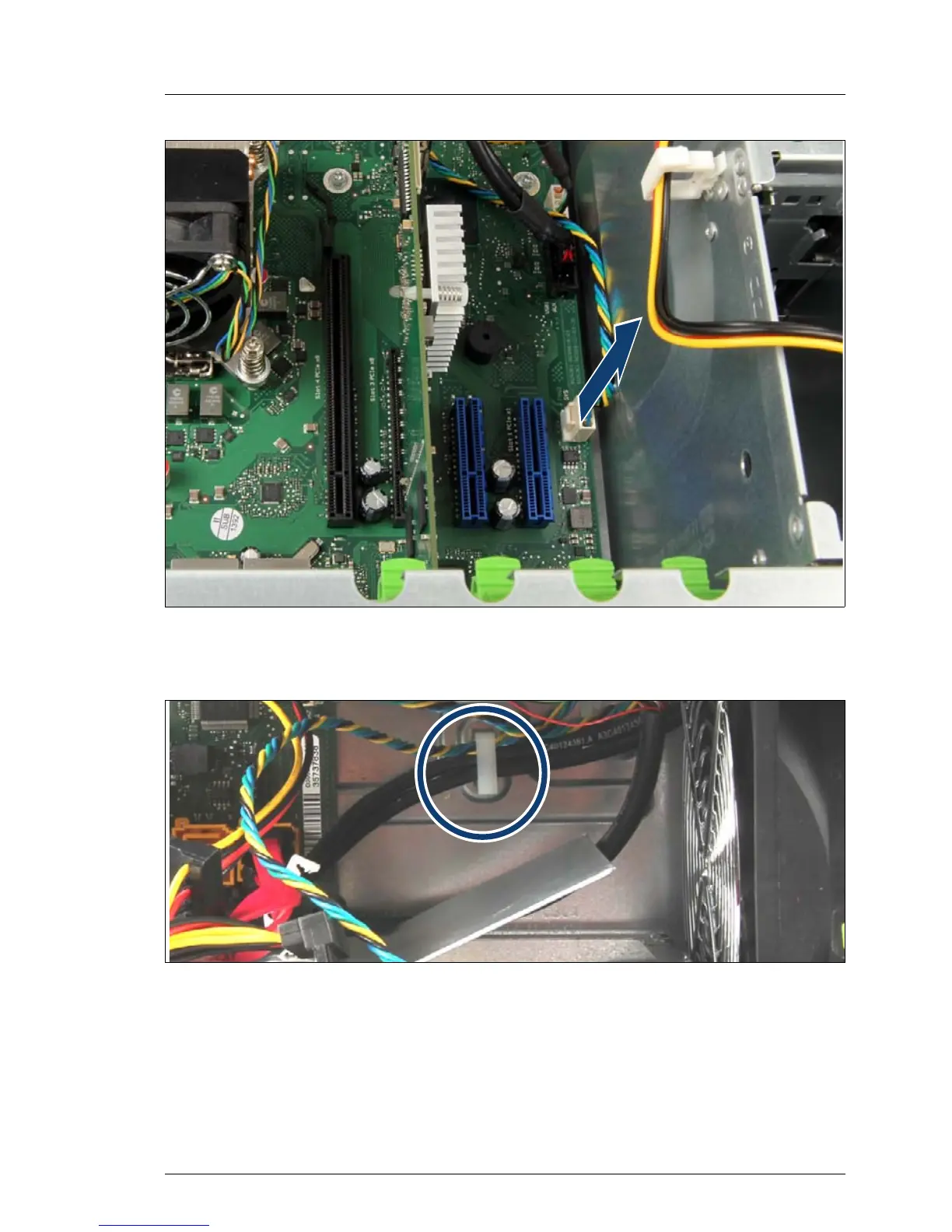

Figure 51: Disconnecting the fan cable
Ê Disconnect the fan cable from system board connector FAN1 SYS.
Figure 52: Cable clamp of the fan cable
Ê Open the cable clamp and remove the fan cable.
