104 Upgrade and Maintenance Manual TX100 S3 Core Edition
System fan modules

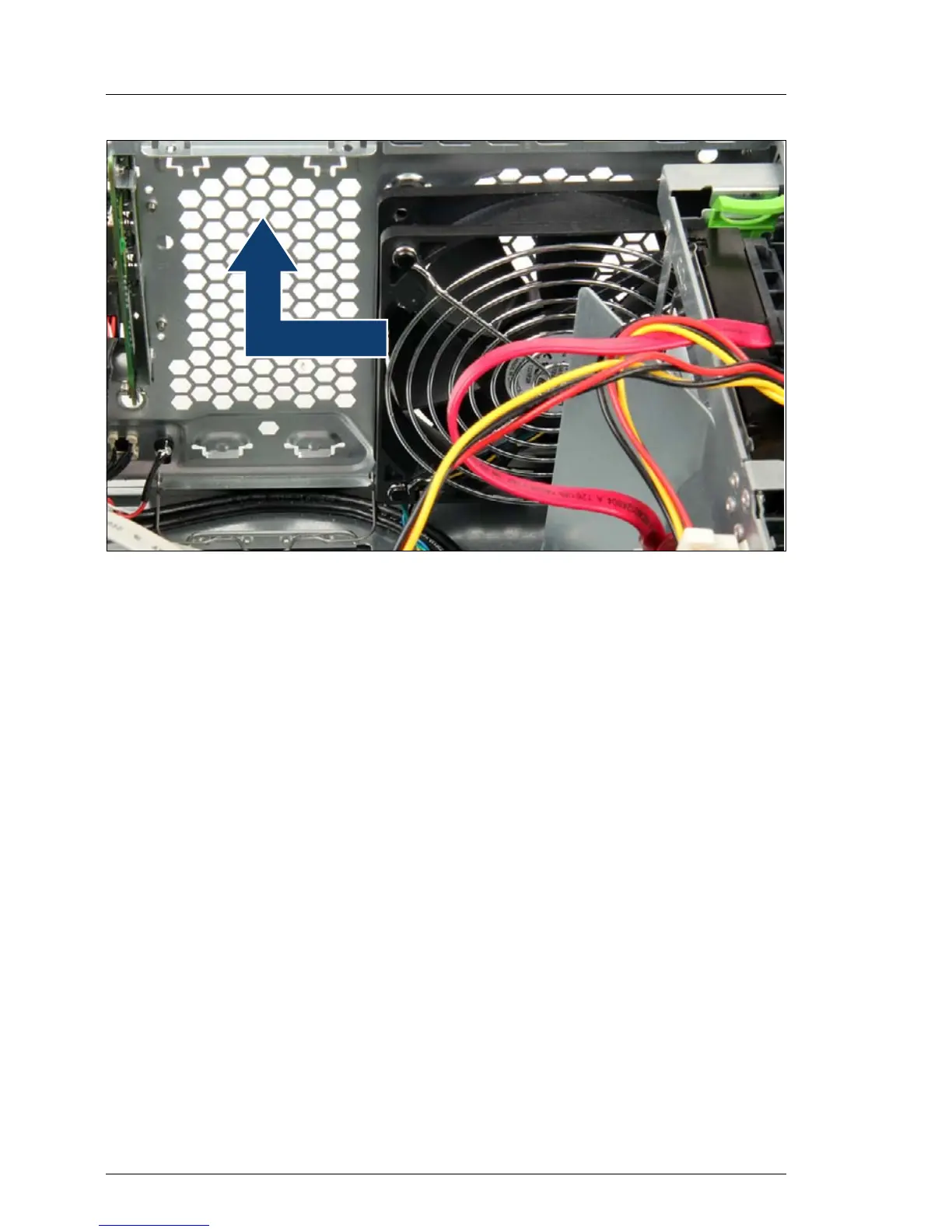

Figure 53: Removing the system fan module 1
Ê Slide the system fan module 1 in the direction of arrow.
Ê Lift the system fan module 1 out of the chassis.
