160 Upgrade and Maintenance Manual TX100 S3 Core Edition
Accessible drives

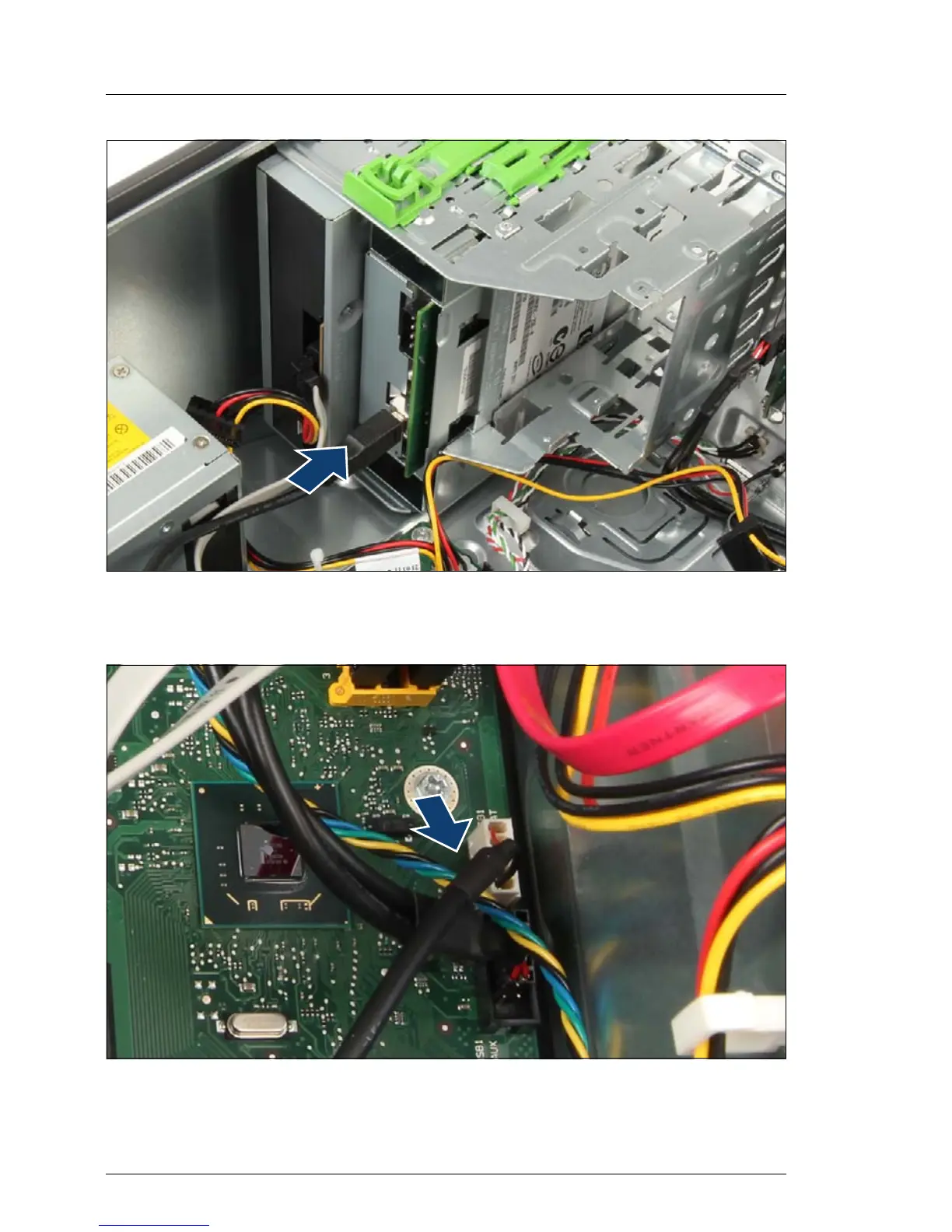

Figure 97: Connecting the USB cable to the backup drive
Ê Connect the USB cable to the backup drive.
Figure 98: Connecting the USB cable to system board
Ê Connect the USB cable to connector USB DAT on the system board.
