TX100 S3 Core Edition Upgrade and Maintenance Manual 203
System board and components

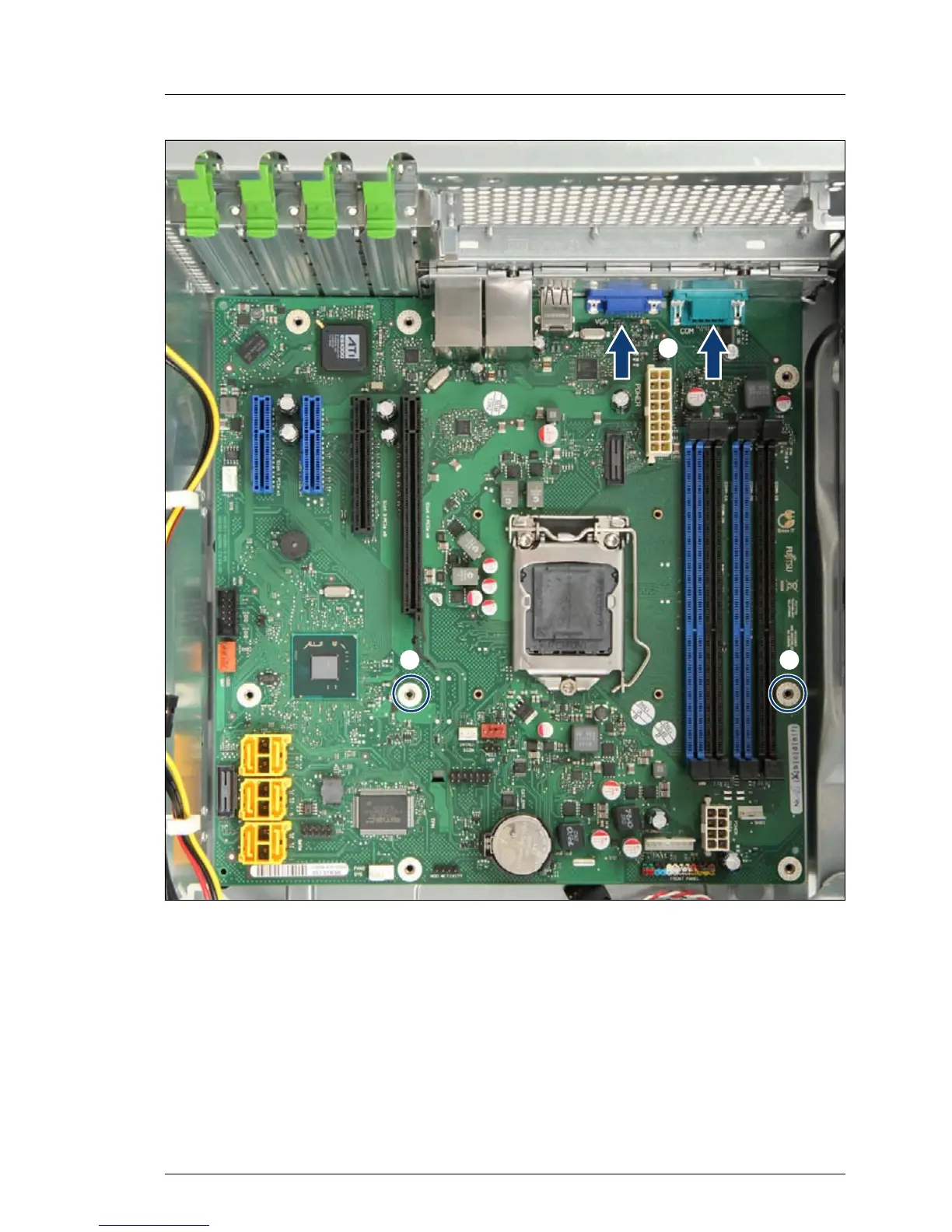

Figure 132: Installing the system board (B)
Ê Carefully shift the system board towards the server rear until the plug shells
engage with the cut-outs in the connector panel (1).
Ê Lower the system board onto the centering bolts (2).
Ensure that the system board is properly seated on both centering bolts.
/
00
