204 Upgrade and Maintenance Manual TX100 S3 Core Edition
System board and components

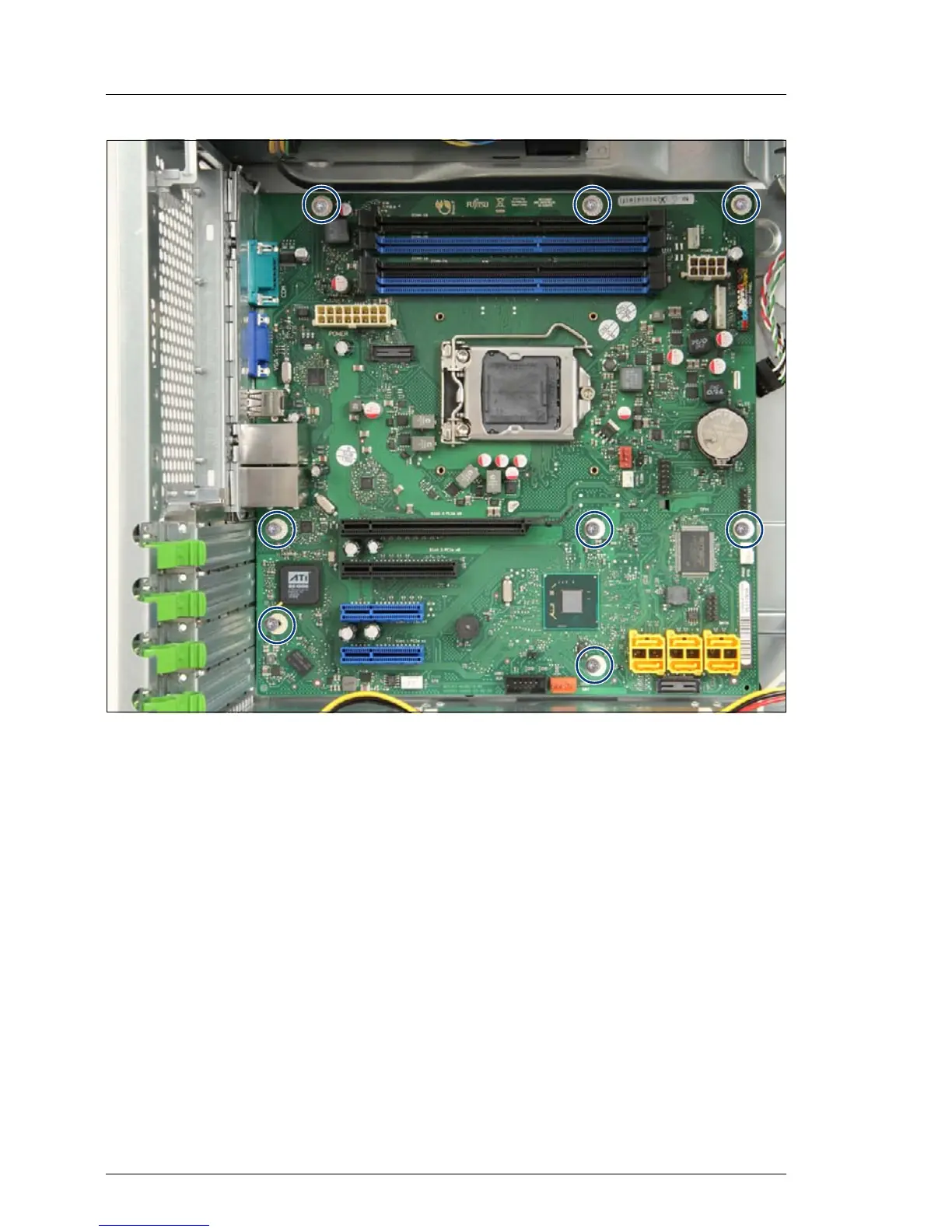

Figure 133: Securing the system board
Ê Secure the system board with eight screws (M3 x 4.5 mm, C26192-Y10-
C67) (see circles).
I Screw torque: 0.6 Nm (not applicable for the Japanese market)
Tighten the screws in a cross diagonal pattern.
