TX100 S3 Core Edition Upgrade and Maintenance Manual 205
System board and components
Swapping the processor

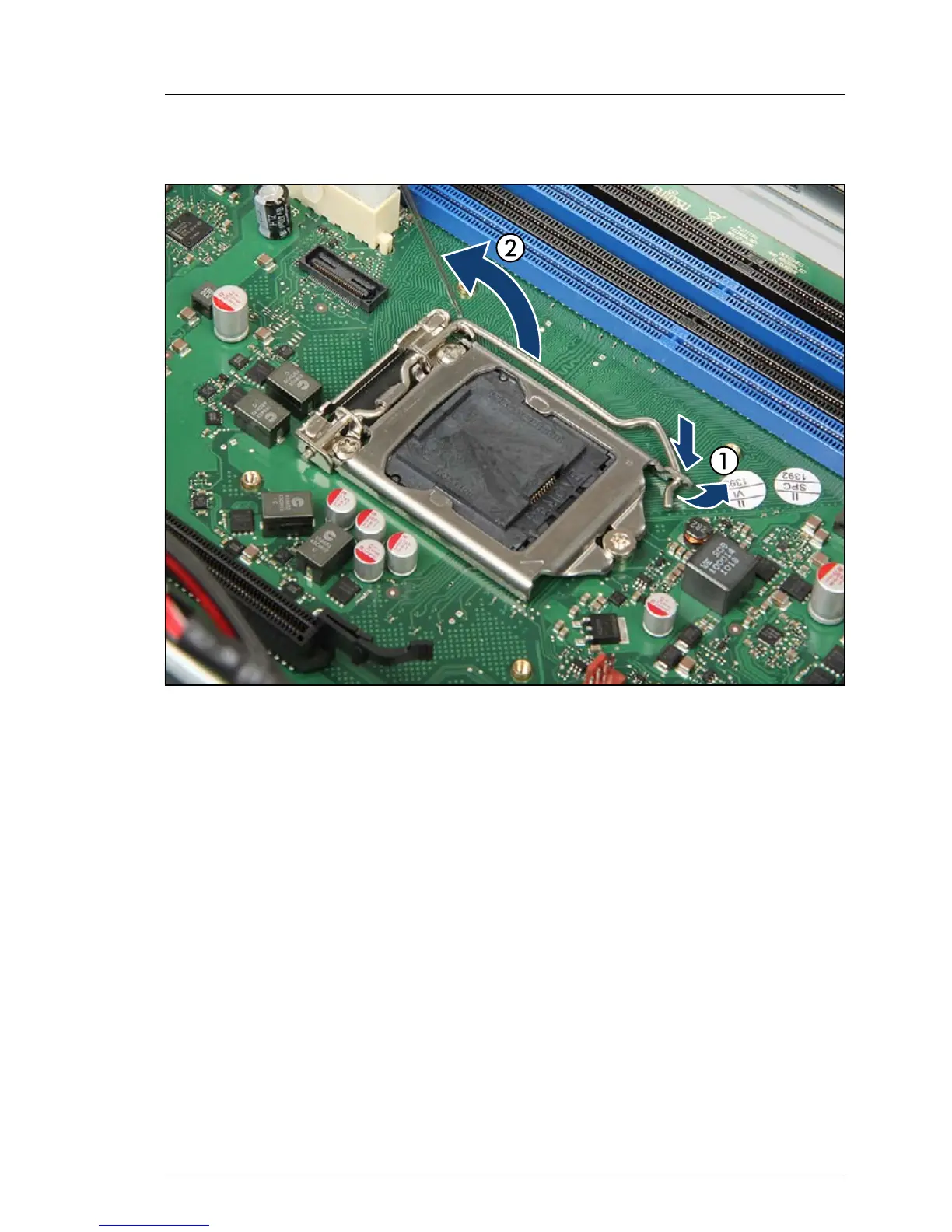

Figure 134: Unlatching the socket lever (new system board)
Ê Unlatch the socket lever on the new system board by pushing it down and
away from the socket (1).
Ê Fold back the socket release lever to disengage the load plate (2).
