206 Upgrade and Maintenance Manual TX100 S3 Core Edition
System board and components

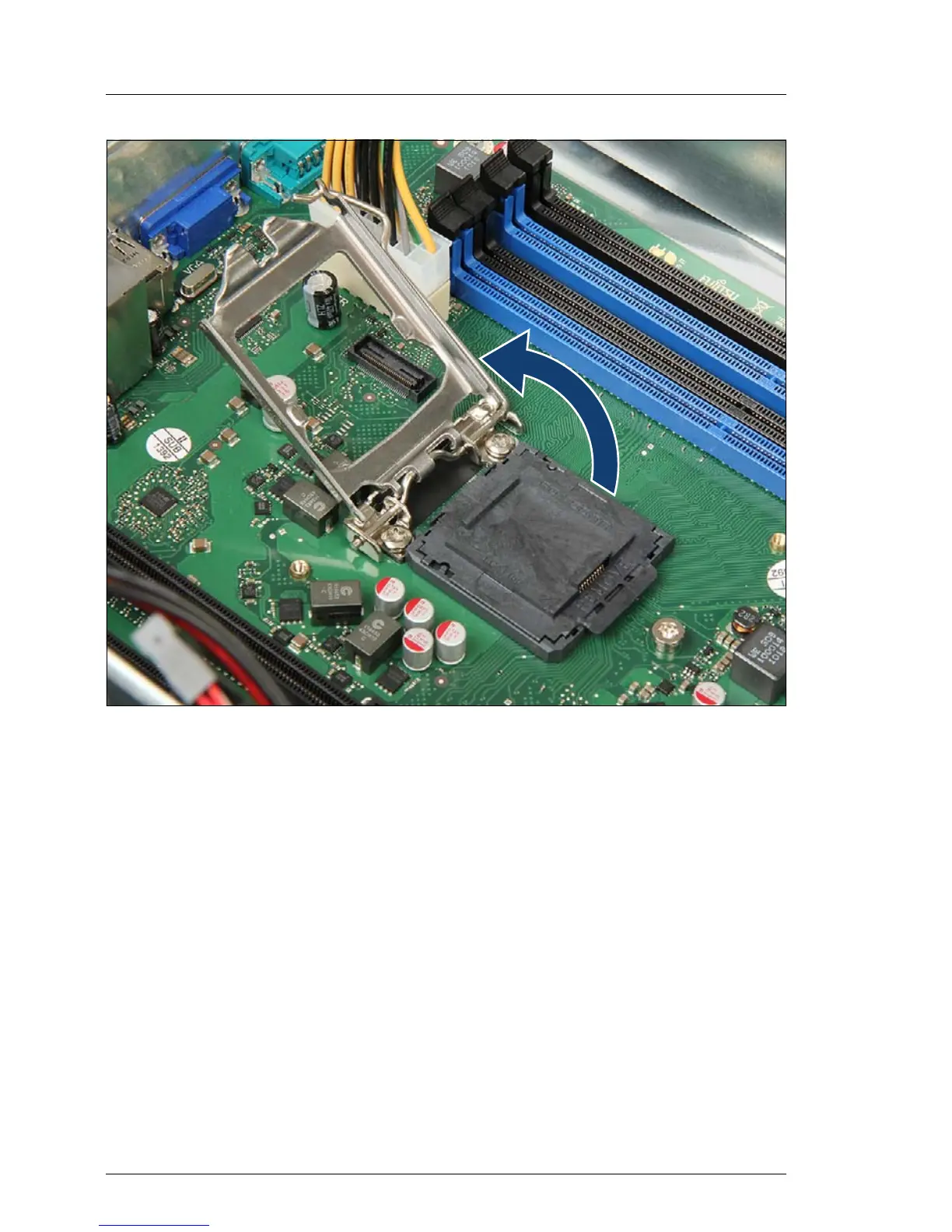

Figure 135: Opening the load plate (new system board)
Ê Rotate the socket lever to lift the load plate away from the socket.
Ê Make sure that the load plate is in the fully open position.
