7. Fish Finder
7-8
7.4 Manual Fish Finder Operation
Use the manual operation to see schools of fish and the bottom echo with a fixed gain
setting.
The gain, range and range shift functions let you select the depth you can see on the
screen. The basic range provides a "window" into the water column and range shift
moves the "window" to the depth that you select.
7.4.1 How to Select the Manual Mode
Use the RotoKey to select [Auto] followed by [Off].
7.4.2 How to Select a Display Range
Operate the RANGE key to select a range, that is, the maximum depth to display. (The
range cannot be changed in the automatic mode.)
For the DFF series/FCV-1150, range can be selected automatically or manually.
Push the RotoKey to show the soft controls. Select [Auto Range] then push the Ro-
toKey to activate or deactivate.
Individual range selection for high and low freq. (DFF series, FCV-1150)
You can set the range individually for high and low frequencies. Activate the dual fre-
quency mode, turn off auto range and then do the following:
1. Push the RotoKey.
2. Rotate the RotoKey to select [Split Range] followed by [HF] or [LF].
3. Push the RANGE key to choose range for selected frequency.
To set the range for high and low frequencies together, use the RotoKey to select [In-
dividual] then [Off].
7.4.3 How to Shift the Range
The basic range and range shift functions let you select the depth you can see on the
screen. This function is not available when the Auto range mode is active.
Operate S or T on the ScrollingPad to shift the range.

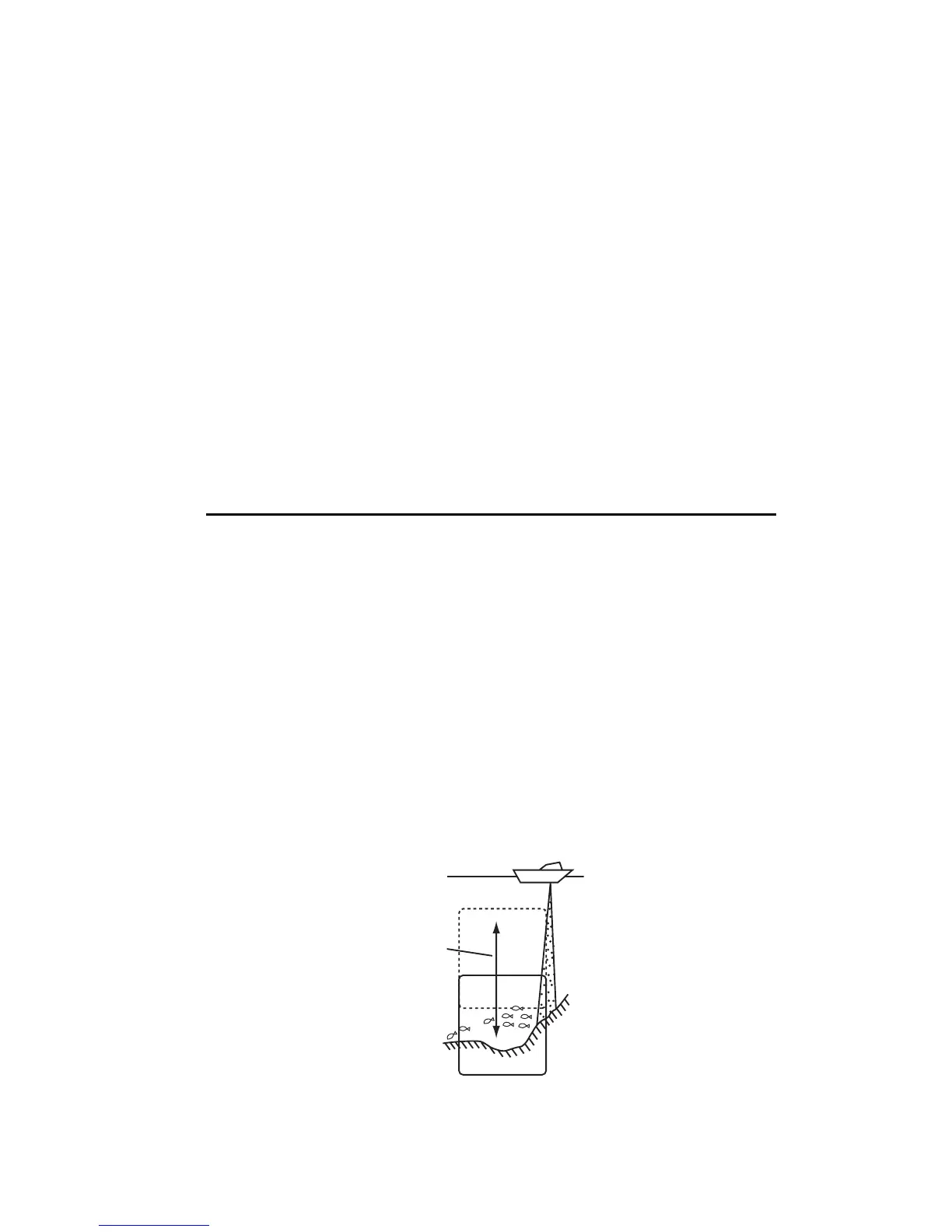

Display
Window can be
shifted up and
down to select
starting depth.
