Furuno MFD12 - Routes List

5. Routes
5-6
5.3 Routes List
The saved routes are stored in the Routes list. The list stores the following route data
for each route:
• Name of route
• Length of route
• Number of route points
• Distance between legs and total distance
• Bearing between legs
• TTG between legs and total TTG
To show the routes list:
1. Press the MENU key to open the menu.
2. Open the [Routes] list.
3. Use the RotoKey to select the route to view.

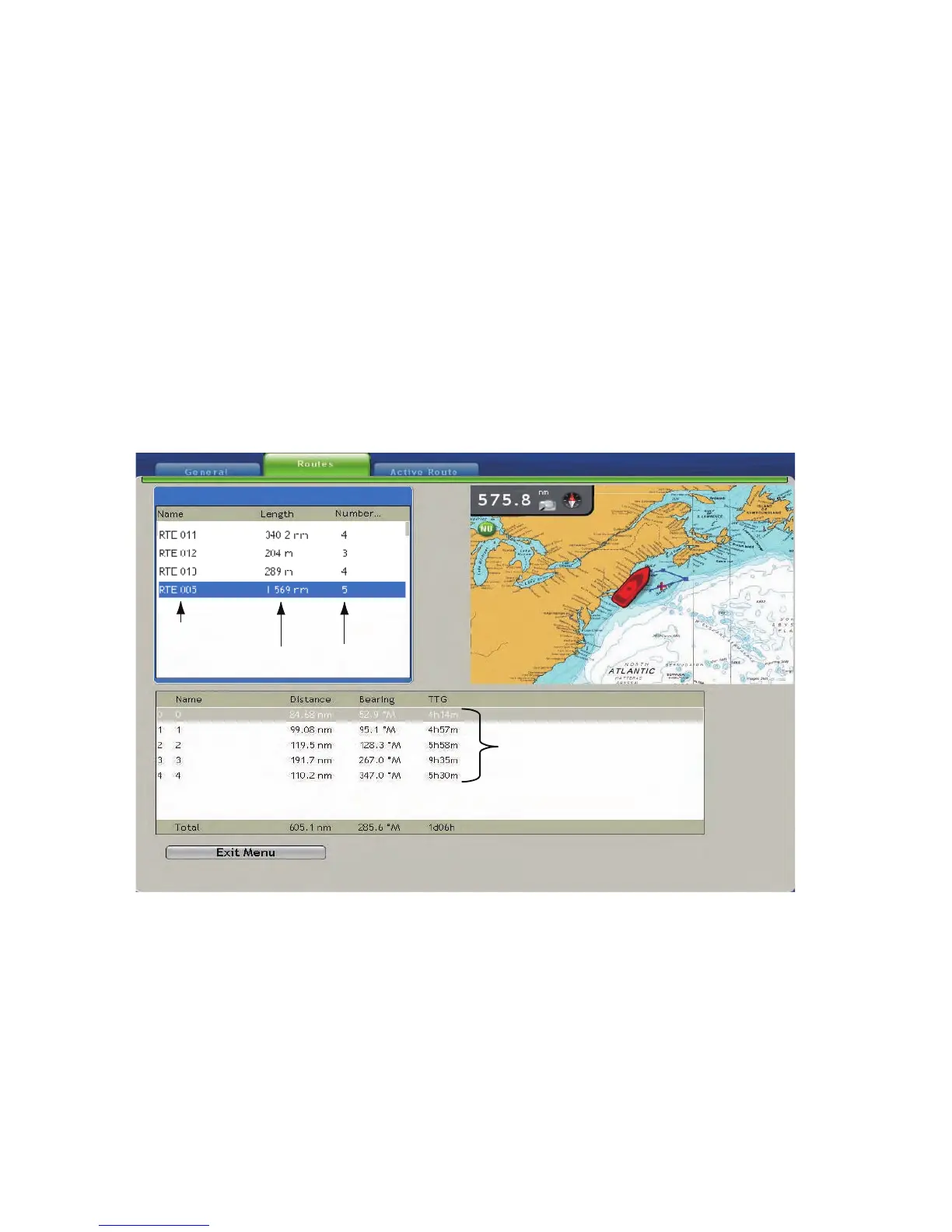

The name of the route, the route's total length and its number of points are shown
in the route box at the upper left 1/4 of the screen. The location of the route is
shown on the map at the upper right 1/4 of the screen. The route information ap-
pears on the lower half of the screen.
4. Press the MENU key to close the menu.
- Name of point
- Dist. between points
- Bearing to point
- TTG to point
Location of
route
No. of pts.
Route length
Route name
Total = 4
