10.3 How to Select an Instrument Display
You can show engine, steering, wind or wind/weather
data in the instrument display if you have the related sen-
sors. Select the data to display as follows:
1. Activate the instrument display then push the CTRL
key to select the instrument display with the yellow
cursor.
2. Push the RotoKey to show the soft controls that se-
lect an instrument display.
3. Rotate the RotoKey to select a display then push the
key to validate your selection.
10.4 Instrument Displays
10.4.1 Steering Display

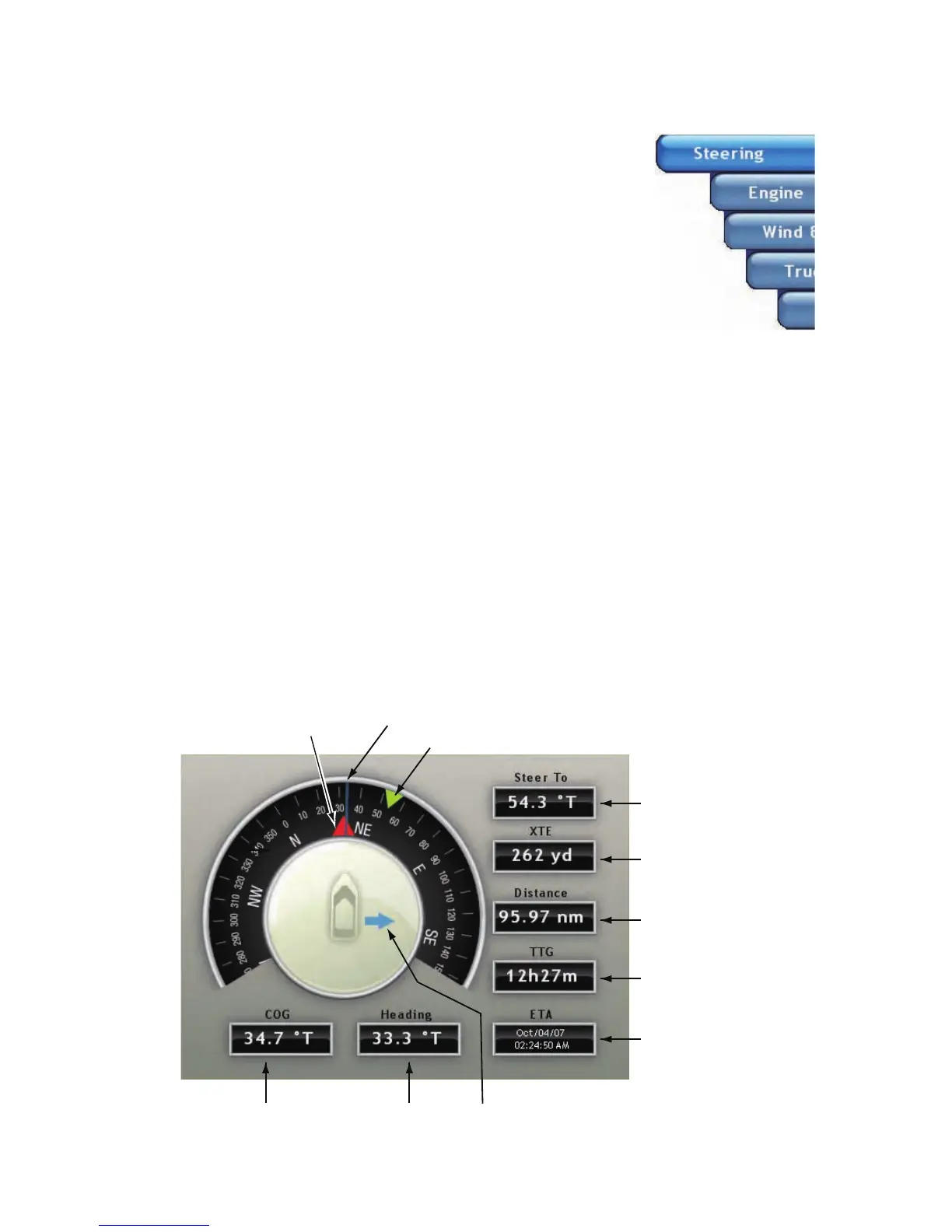

The steering display provides the analog and digital indications shown below.
• Heading
• Direction to steer
• Cross-track error
• Distance to destination waypoint
• Time To Go to destination waypoint
• Estimated Time of Arrival at destination waypoint
• Course over ground
Course over ground Heading
Course marker
(red)
Steer to
direction
Cross-track
error
Distance to
destination waypoint
Time To Go to
destination waypiont
Estimated Time
of Arrival at
destination waypoint
Steer to direction marker (green)
Heading (blue line)
Direction to steer
(right, starboard; left, port)
