Furuno MFD12 User Manual

10. Instrument Display
10-4

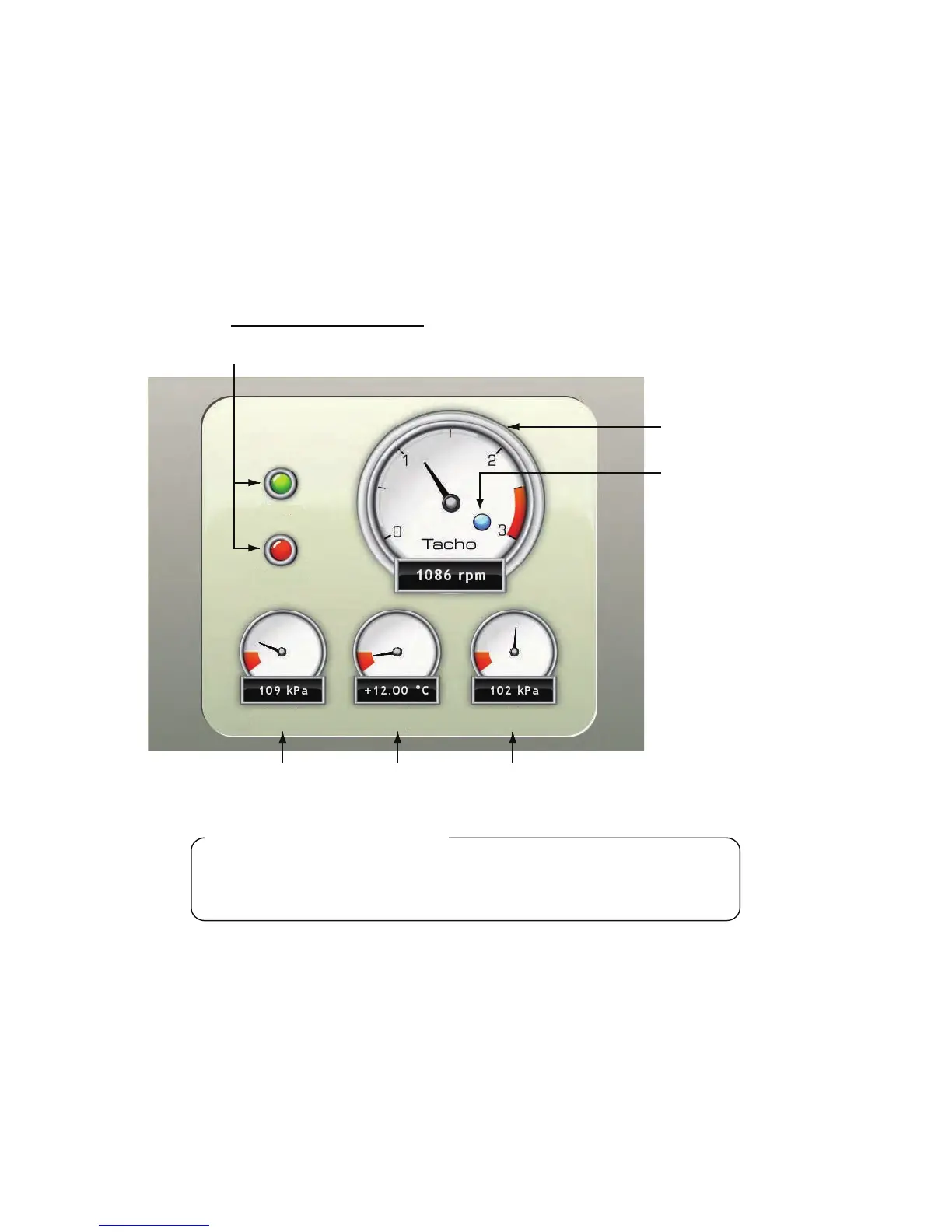

10.4.2 Engine Display
The engine display shows the information listed below. The engine must output engine
data in NMEA 2000 format to show the engine data.
• Abnormal engine temperature and engine trouble lamps
• Tachometer
• Oil pressure
• Engine temperature
• Boost pressure
Analog and digital
tachometer
Boost
Pressure
Engine
Temperature
Oil
Pressure
RPM lamp (blue)
(ON always)
Engine-related warning lamps
Temp (green): Lights for high engine temperature.
Warning (red): Lights for engine trouble or than high temperature.
Temp
Warning
Boost Temp Oil
- Both lamps flash when there is no engine data for approx. 30 seconds.
- Both lamps light at power-up if there was no engine data when the
power was turned off.
Engine-related warning lamps

Furuno MFD12 Specifications

General

Display Size	12.1 inches
Brightness	1000 cd/m²
Touchscreen	Yes
Power Supply	12-24 V DC
Operating Temperature Range	-15°C to +55°C
Input Voltage	12-24 V DC
Display Type	LCD
Resolution	800 x 600
Storage Temperature	-20°C to +70°C
