Furuno MFD12 User Manual

13. How to Adjust Settings
13-6
13.1.2 How to Set the RotoKey
If the Basic, Standard or Full sets of soft controls are not acceptable, you can select
the soft controls to use on the [My NavNet] menu. To use your selections, set RotoKey
in the [My NavNet-General] menu to [Custom].
1. Press the MENU key to open the menu.
2. Open the My [NavNet-General] menu.

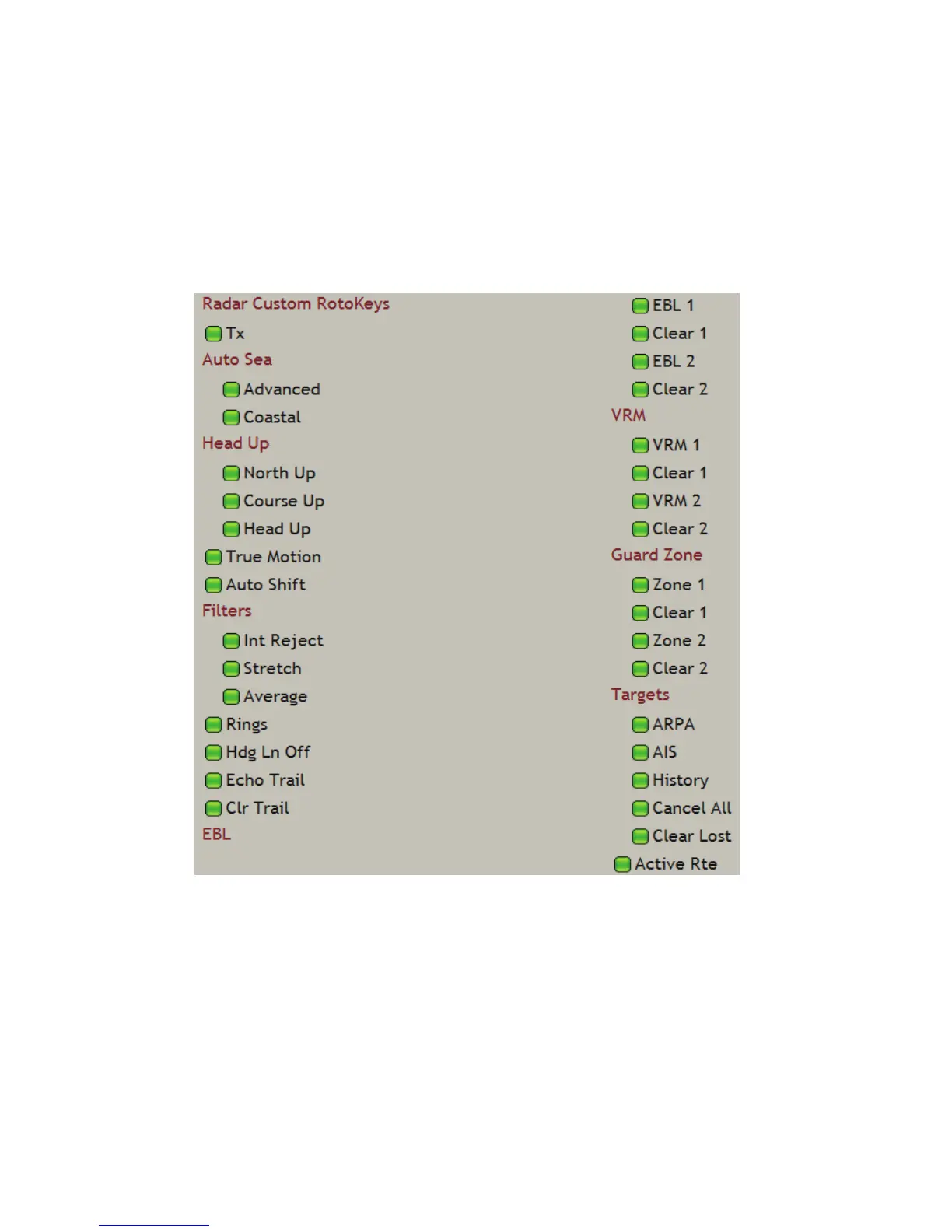

3. Open the [Chart], [Radar], [Fish Finder] or [Instruments] sub menu. For example,
open the [Radar] sub menu.
4. Use the RotoKey to select a soft control. Push the key to activate or deactivate
the soft control.
5. Press the MENU key to close the menu.

Furuno MFD12 Specifications

General

Display Size	12.1 inches
Brightness	1000 cd/m²
Touchscreen	Yes
Power Supply	12-24 V DC
Operating Temperature Range	-15°C to +55°C
Input Voltage	12-24 V DC
Display Type	LCD
Resolution	800 x 600
Storage Temperature	-20°C to +70°C
