1. System Introduction
1-12

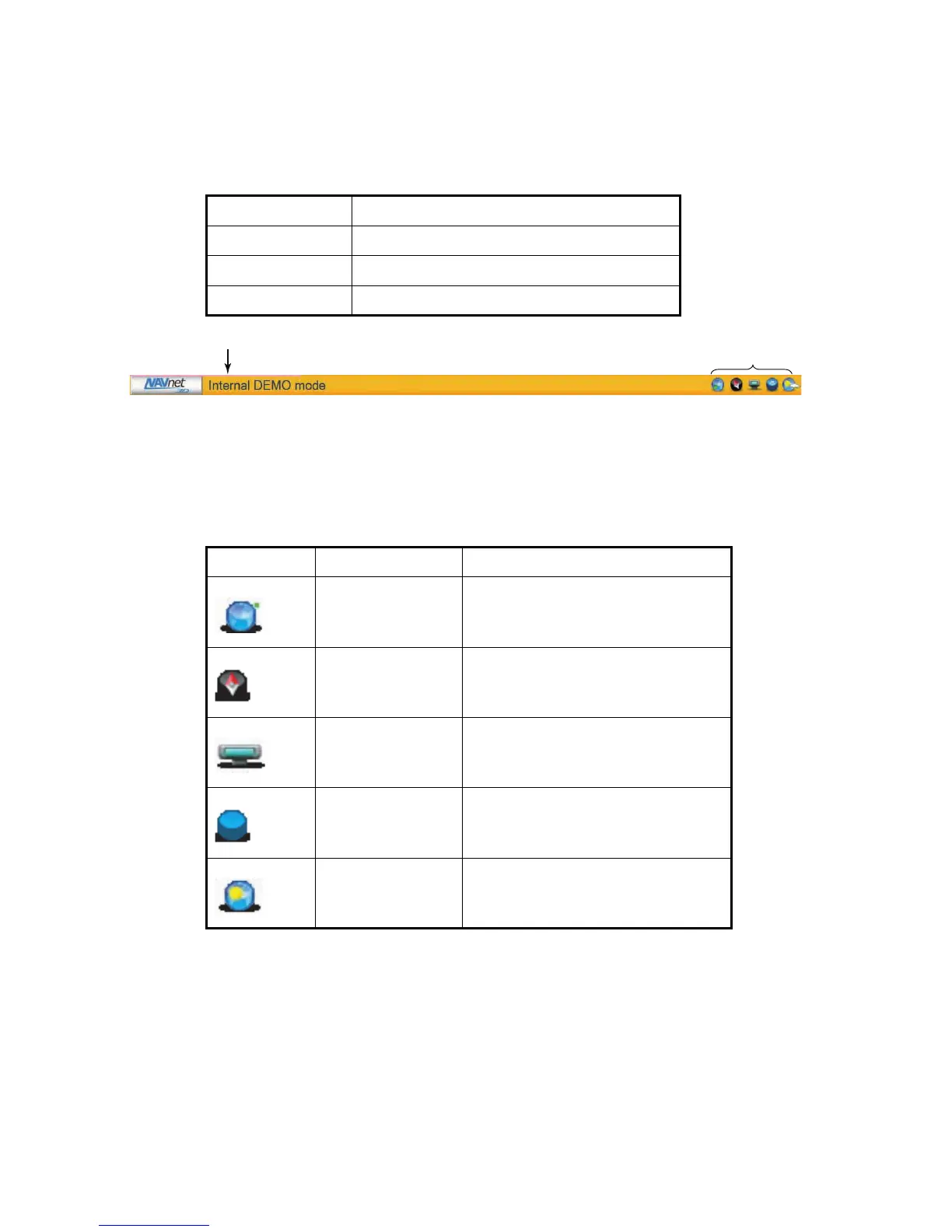

1.11 Status Bar
The status bar is the horizontal bar at the top of any display. This bar shows operation
information with messages, and sensor state with the icons. The color of the bar
changes according to the types of messages as shown below.
The sensor icons at the far right position on the status bar show the state of the sen-
sors connected. An icon is in “motion” if the related sensor is active. An icon is not
moving and has an X if a sensor is not active or the sensor is not operating correctly.
(The radar and fish finder icons are not in motion when the radar or fish finder is in
stand-by.) The GPS, radar and fish finder icons have a “shortcut” function, Click those
icons to get the shortcuts shown in the table.
Bar color Type of message
Red Alarm messages
Green Operation instructions
Yellow Message of low value, or no message
Icon Sensor Right-or left-click
GPS Show the GPS status display. (See
the section 14.7.)
Compass
Radar Change between stand-by and TX.
Fish Finder Change between stand-by and TX.
Weather
Text message area
Sensor icons
