Furuno MFD12 - How to Insert a Point on a Route; How to Delete a Point

5. Routes
5-3

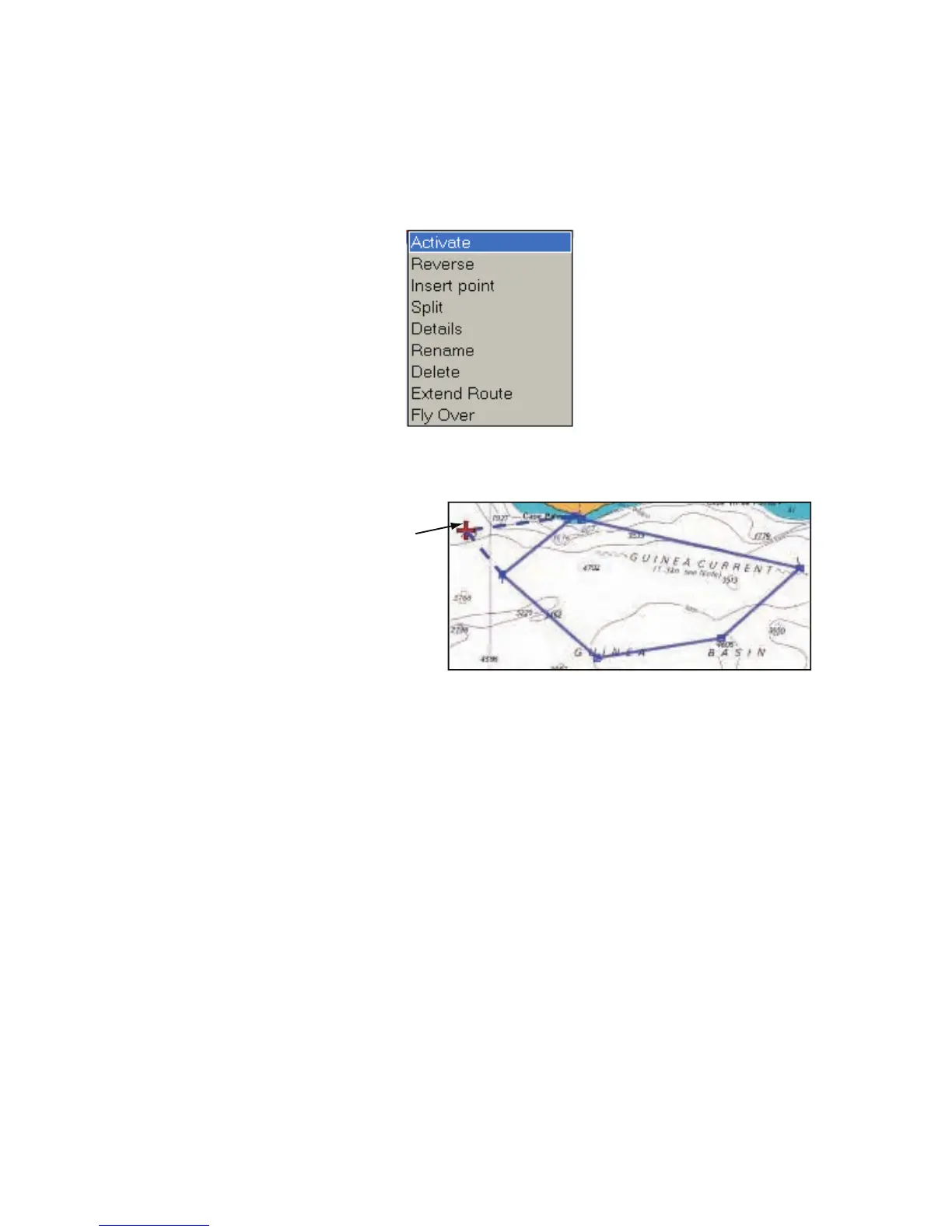

5.2.2 How to Insert a Point on a Route
You can put a point between route legs when you need an additional point along a
route.
1. Put the cursor on a leg of the route.
2. Push the right-click button to show the Routes pop-up menu.
3. Use the RotoKey to select [Insert point]. A dashed line runs between the two
points on the selected leg.
4. Move the cursor where to put a point then press the left-click button. A solid line
replaces the dashed line.
5.2.3 How to Delete a Point
1. Place the cursor on the point to delete.
2. Push the right-click button to show the pop-up menu.
3. Use the RotoKey to select [Delete].
Drag cursor to location
where to insert point
