5 Configuration → Q.gate and Q.pac settings
If the modules are connected through a Test Controller, new
module settings must also be updated there. Select
or File
> Write project (update) in the test
.commander. The project
file is in this case automatically updated.
5.8 Q.gate and Q.pac settings
In the Test Controller you specify, for example, the type and
scope of the synchronization, set the (synchronous) output rate
and baud rate of the modules to be used or define which bus diag-
nostic data or life signs are to be transmitted. In addition, you
can
check all the settings of host and module interfaces, allocate a
location name, etc. The following sections only deal with the most
important settings; for further information read the appropriate
Test Controller manual.
Mark the Test Controller to be set and select Settings from the
context menu or double click on the Test Controller to start the
configuration program. Then you can carry out all the
module
settings in the window of this program. A tree structure similar to
that in Windows Explorer shows the individual parameter groups.
Open up the entries as required by a click on
.

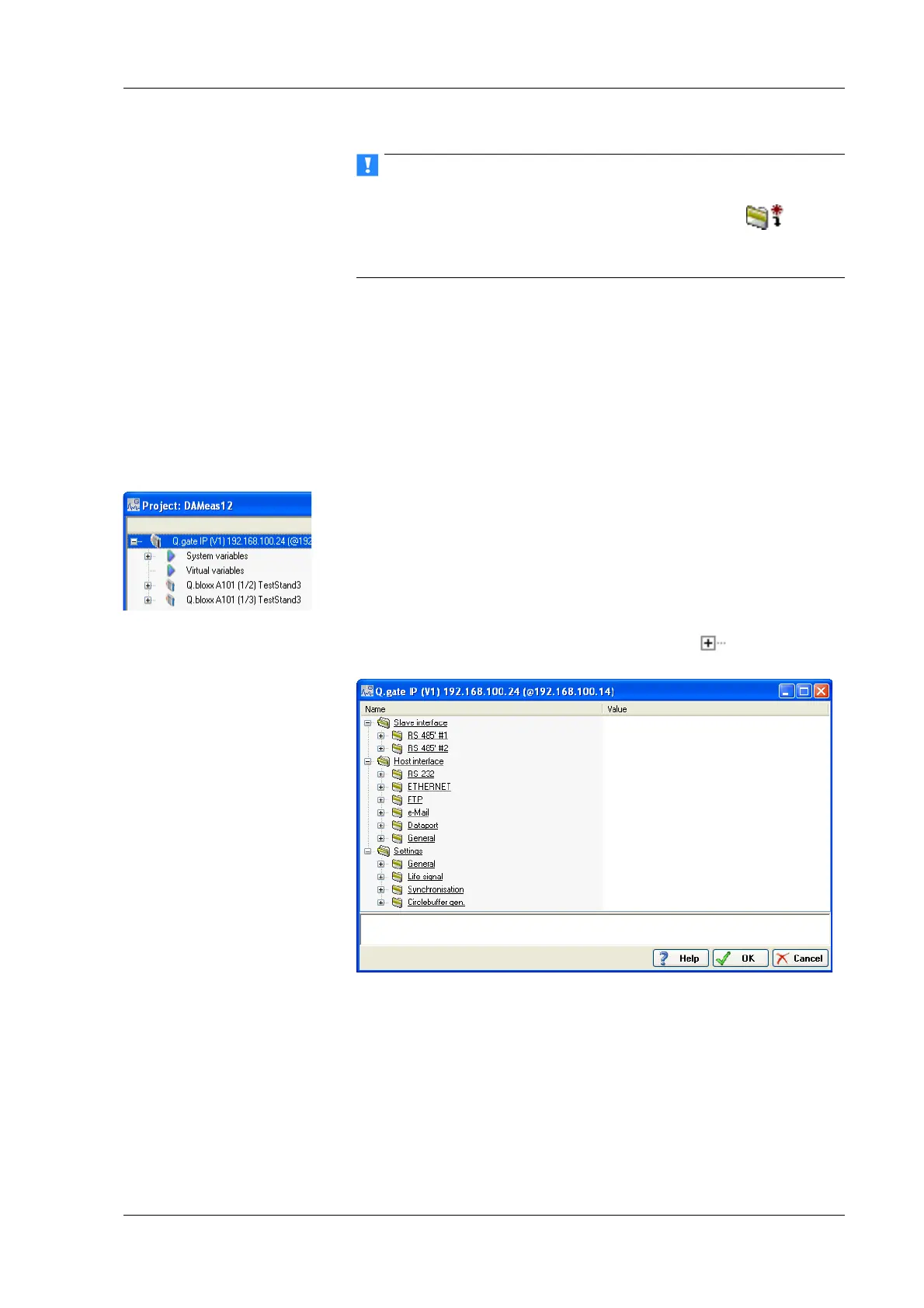

Fig. 5-11 Configuration dialog for a Q.gate. Test Controller
5.8.1 Module interface
Using this parameter group you specify the speed of the data
transmission on the individual interfaces (UARTs). The maximum
possible speed depends on the overall length of the cable which is
connected to the relevant interface.
