5 Configuration → Defining computations
> Write project (update) in the test.commander. The project
file is in this case automatically updated.
5.6 Defining computations
In order to set parameters you should be connected to the mod-
ule and have called the configuration program (ICP 1
00 which is
started automatically by test.commander):
Mark a module and
select Configuration from the context menu or double
click on a
module or module signal (variable) to start the configuration pro-
gram. Then carry out all the module settings in the window of this
program.
You can however also configure a project without a direct con-
nection and then, once you have established the connection, load
the correspondi
ng files into the modules and load Test Controller.
All module signals are defined as variables. Therefore, for the
entry acti
vate the tab Variable definition in the configuration
program.

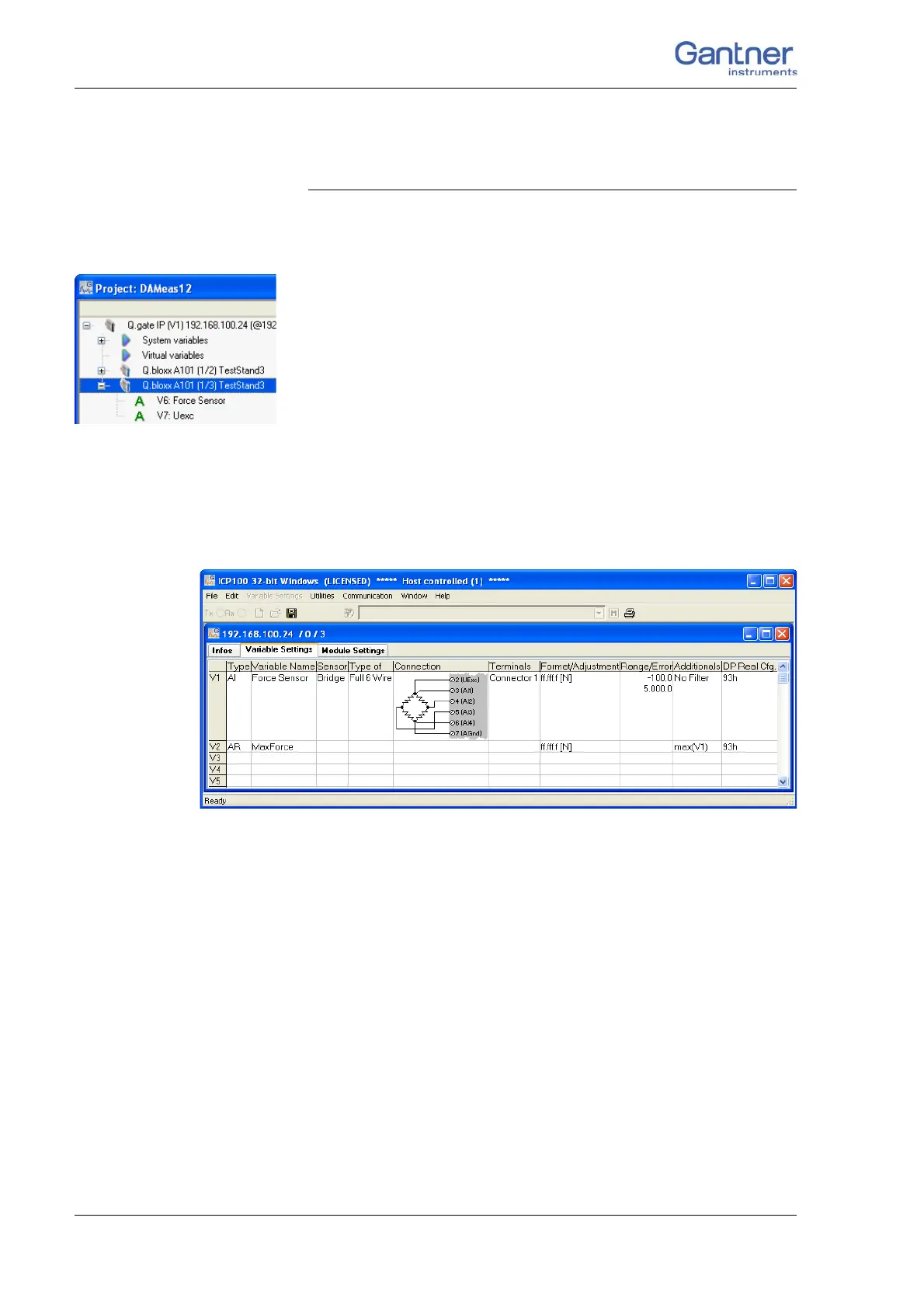

Fig. 5-10 Dialog with configuration for a computation.
Procedure 1. Click in the column Type of the first row (V1 = Variable 1) or
mark the row (click on V1) and use Variable definition >
Type.
2. Select Arithmetic.
3.
Click in the column Variable name and allocate a name
iden-
tifying the signal.
4. Click in the column Other and specif
y the required computa-
tion.
In the upper dialog field you can enter,
as on a pocket calcula-
tor, a formula which uses the existin
g module variables. Cre-
ate functions via the buttons in the lower section of the dialog.
Click on OK once you ha
ve defined the required computation.
